Installing Components in the Desktop 28 of 36
HP Web Services Your Vectra Setting Up Using
Warranty and
Support Service
Solving
Problems
Installing
Components
Desktop
Replacing the Processor 3 of 3
? 

-A

>  !)"
@' +$
2 +$

ESC


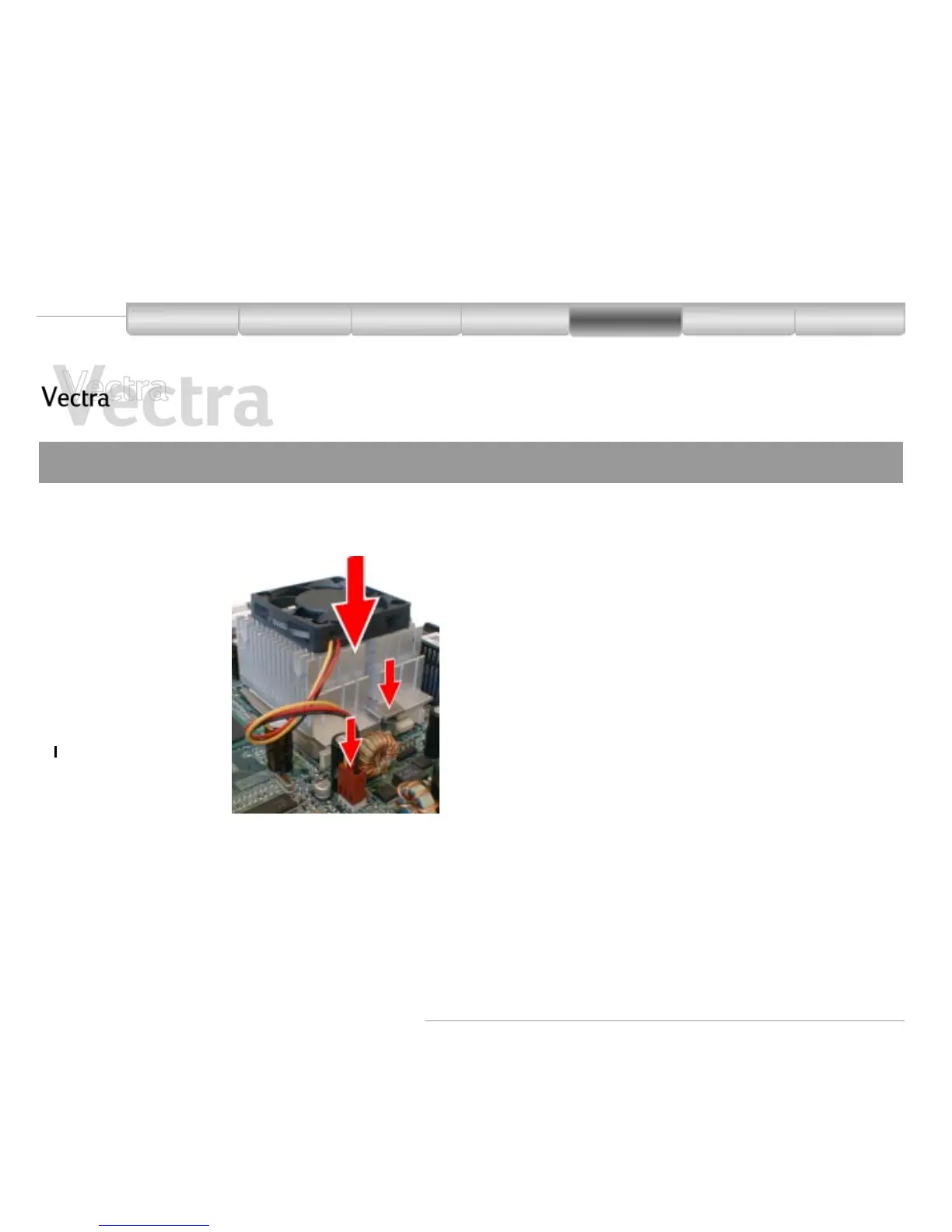

Heatsink with fan
After installing the
heatsink, connect the
fan’s power connector
to the system board.
CAUTION
Ensure you use the
correct system
board connector
(marked CPU FAN) -
refer to page 30 for
the position of this
connector.
