supplies according to the sequence show below.

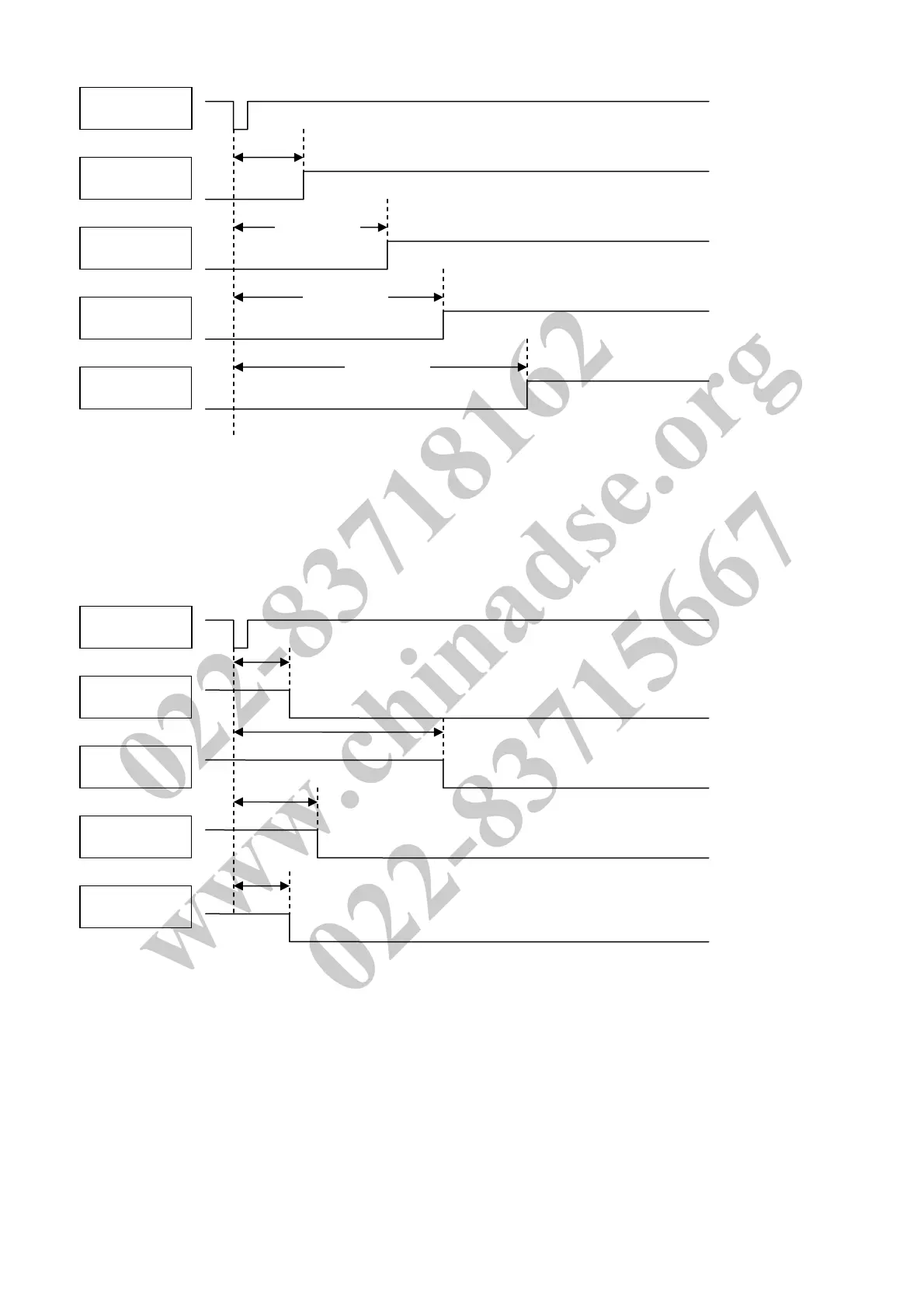

3.8.4 Power OFF sequence
When the POWER key switch is pressed, while the power supply is ON, the POWER key
switch signal is turned “H”. When this “H” potential is detected, the CPU begins to turn off
the respective power supplies according to sequence show below.
460ms
157ms
140ms
140ms
Power Key
LED Blue
PANELVCC_E
N
BKLT_EN
AUDIO_EN
296ms
Power Key
LED Blue
PANELVCC_E
N
BKLT_EN
AUDIO_EN
516ms
825ms
3.68s
