Installing a DIMM
To install a DIMM:
1. Follow the procedures described in
Preparing for component installation on page 39 to prepare the
workstation for component installation.
2. Push gently outward on the DIMM socket levers as shown in the following illustration. (An HP
600 Workstation is shown for example.)

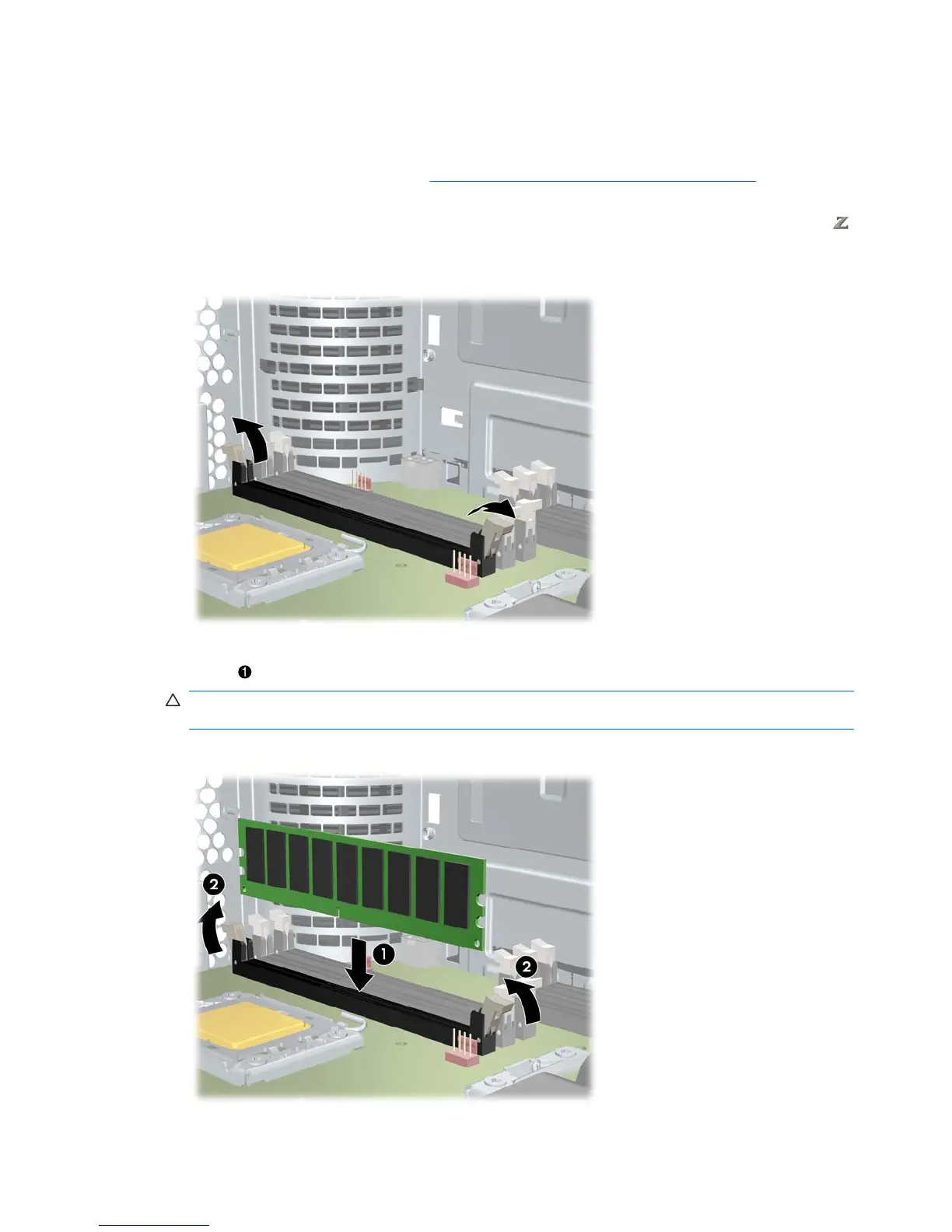

Figure 7-1 Opening DIMM socket levers
3. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket
as shown in the following illustration.
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or DIMM
damage, align these guides properly when installing DIMMs.
Figure 7-2 Seating the DIMM
44 Chapter 7 Installing memory ENWW
