HP xw6400 Product End-Of-Life Disassembly Instructions

7. Remove the graphics card and any other expansion cards.

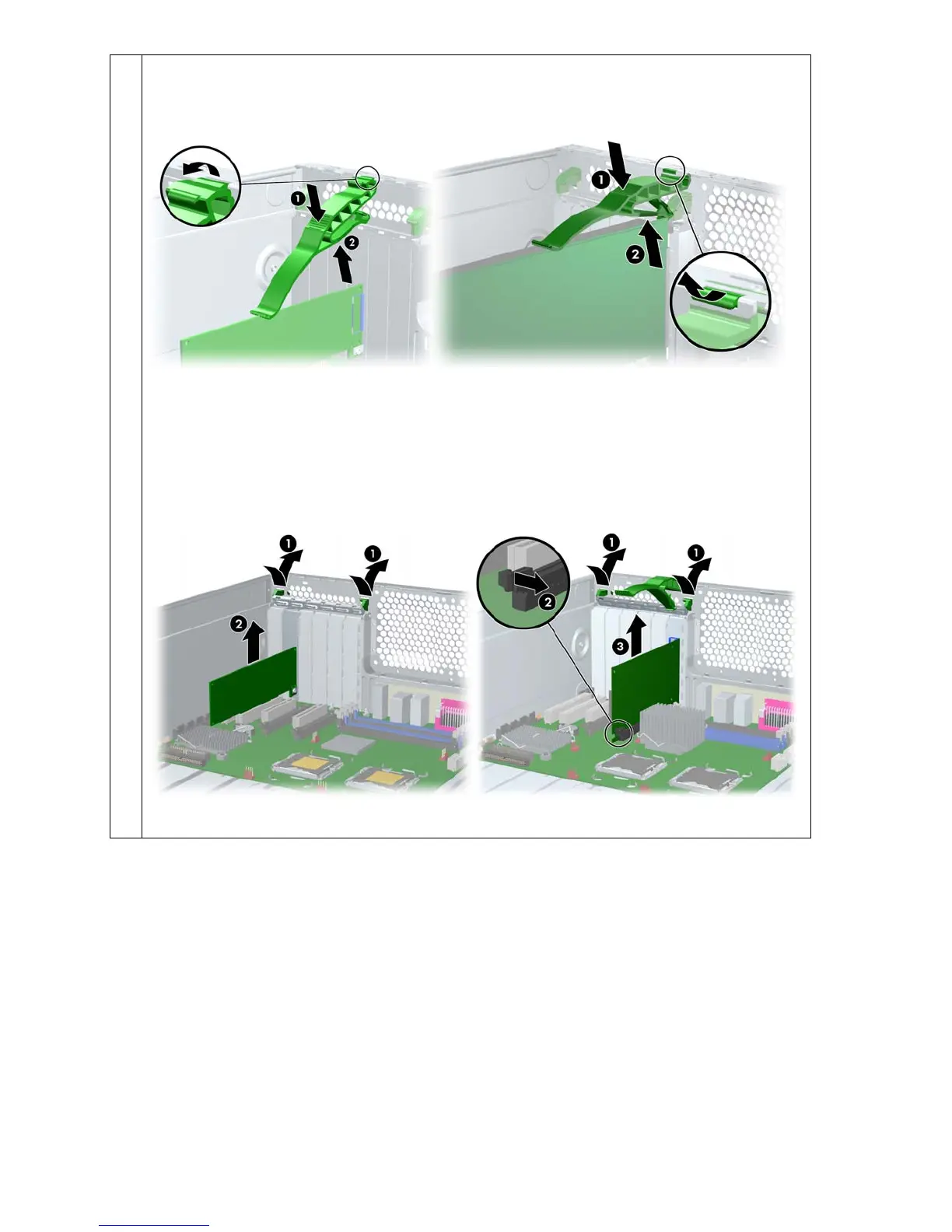

If necessary, first remove the PCI Holder for short or tall cards. Lift the holder arm with one
hand, press in on the sides of the holder 1, and rotate it out of the chassis 2.
Short Card Tall Card
Remove the PCI retainer clamp by pressing down on the green snaps and rotating the PCI
retention clamp upward 1. Lift the PCI card out of the chassis 2. (First picture.)
For PCI Express cards (second picture), remove the PCI retainer clamp by pressing down on
the green snaps and rotating the PCI retention clamp upward 1. Remove the power supply
cable (not shown) if required. Then move the PCI slot lever 2 to release the card and lift it out
of the chassis 3.
PCI Card PCI Express Card
EL-MF877-00 Page 4
Template Revision A 438708-001

HP xw6400 Specifications

General

Chipset	Intel 5000X
Storage	SATA or SAS hard drives
Power Supply	650W
Memory	Up to 16 GB DDR2
Expansion Slots	2 PCIe x16
Network	Integrated Gigabit Ethernet
Operating System	Windows XP Professional
Graphics	NVIDIA Quadro FX series
