Front panel components
The following figure shows the front panel components of a typical HP xw8600 Workstation. Drive
configurations can vary.

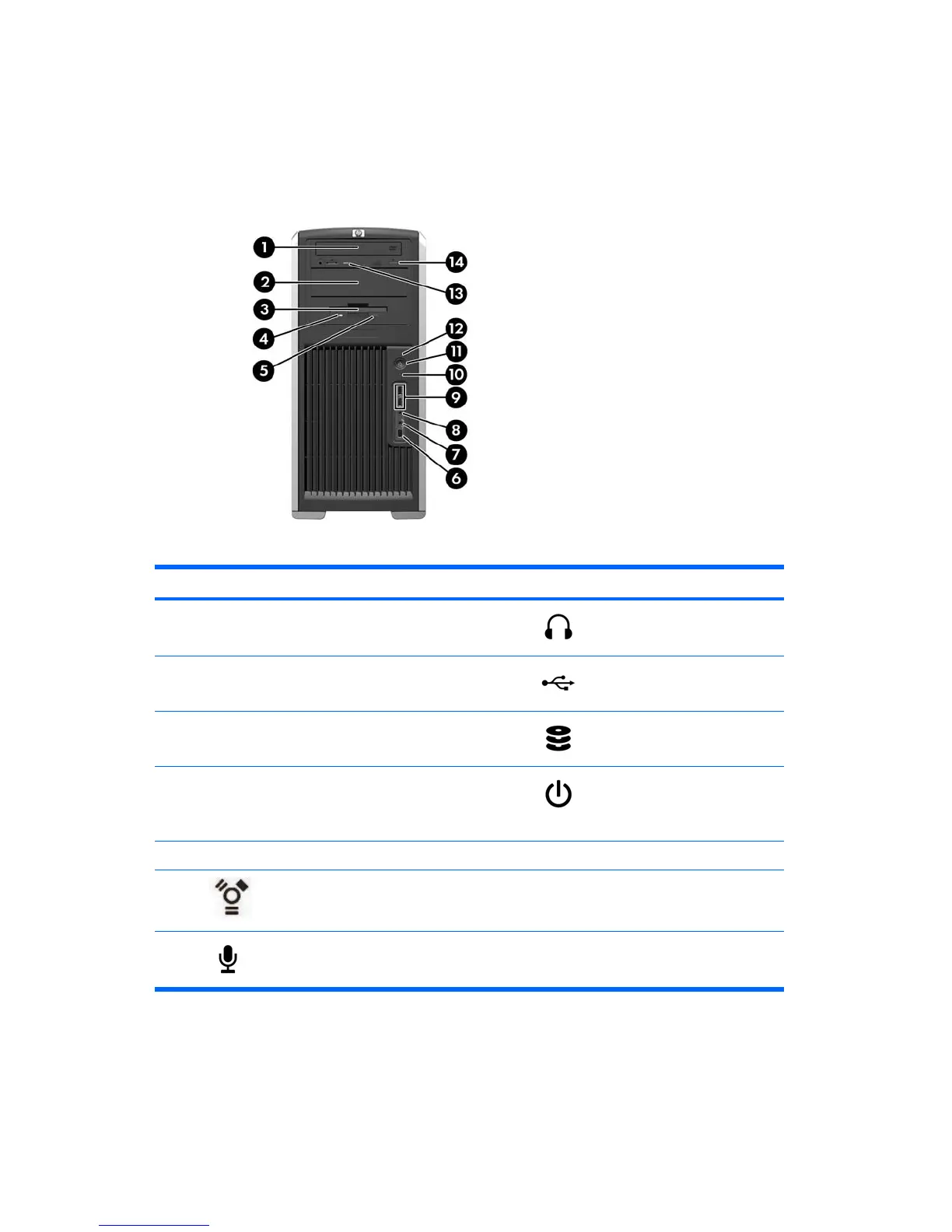

Figure 1-3 Front panel components
Table 1-2 Front panel components
Item Symbol Description Item Symbol Description
1 Optical drive 8 Headphone
2 Secondary drive bays (3 total) 9 USB 2.0 (2)
3 Diskette drive (optional) 10 Hard drive activity light
4 Diskette drive activity light 11 Power button
5 Diskette drive eject button 12 Power on light
6 IEEE-1394a connector 13 Optical drive activity light
7 Microphone 14 Optical drive eject button
4 Chapter 1 Product overview ENWW
