HP xw8600 Quickspecs

Memory Configuration
Memory ConfigurationMemory Configuration
Memory Configuration
(Supported)
Not all memory configurations possible are represented below. Also, 512 MB configurations are not
supported for 64-Bit operating systems.
DDR2 ECC
DDR2 ECCDDR2 ECC
DDR2 ECC
REGISTERED FB-
REGISTERED FB-REGISTERED FB-
REGISTERED FB-
DIMM MEMORY
DIMM MEMORYDIMM MEMORY
DIMM MEMORY

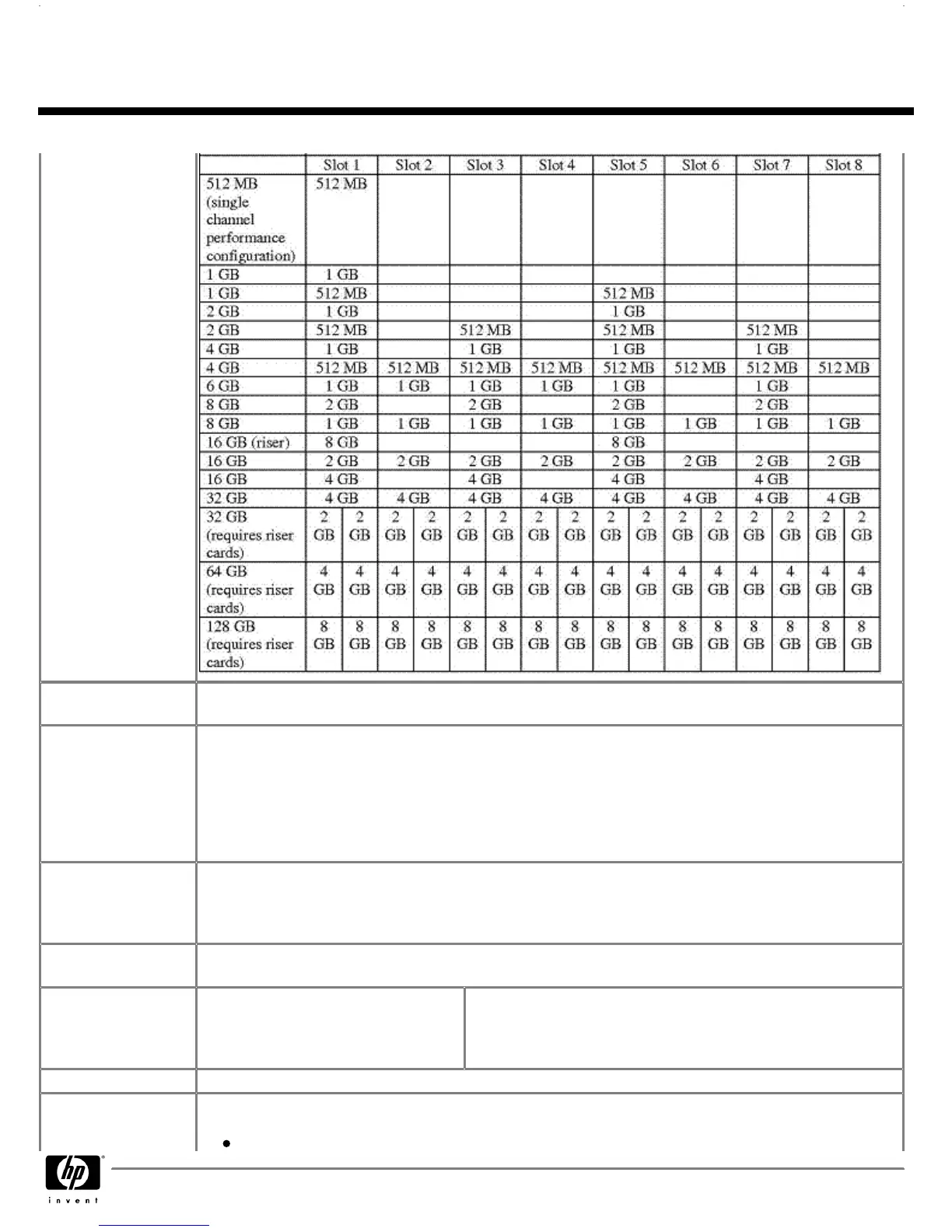

Use only fully-buffered, PC2-5300F DIMMS (FB-DIMMs). Match DIMMs by size and type. With the exception
of the single-DIMM configuration, all memory should be added in like pairs. Use HP memory only.
If using only one DIMM, install in socket 1 (bottom DIMM slot when rear inputs/outputs of motherboard are
facing left). If using 2 DIMMs, install in sockets 1 & 5, matched by size and type. If using more than 2
DIMMs, pairs must be matched by size and type in sockets 1 and 3, 5 and 7, 2 and 4, and 6 and 8; this
may require moving the DIMM in socket 5 to socket 3. If using 8 DIMMs, install in all sockets.
PCI Express
PCI ExpressPCI Express
PCI Express
Connectors
ConnectorsConnectors
Connectors (Gen2 Rev
0.7 connectors)
1 PCI Express x16 Gen2 graphics slot 75W+75W
1 PCI Express x16 Gen2 (x16 or x8 selectable) 75W+75W
1 PCI Express x8 (x8 or x1 selectable)
2 PCI Express x8 (x4 electrically)
PCI Connectors
PCI ConnectorsPCI Connectors
PCI Connectors (5.0V) 1 half- length/full-height 33 MHz 32-Bit
1 PCI-X 133MHz (full length/height)
Interfaces Supported
Interfaces SupportedInterfaces Supported
Interfaces Supported SATA
SATASATA
SATA 6 SATA only connectors
2 of these SATA connectors (color coded red) can be used for
External SATA (eSATA) with the appropriate eSATA After Market
Option kit
Serial Attached SCSI
Serial Attached SCSISerial Attached SCSI
Serial Attached SCSI 8 SAS connectors
Integrated RAID
Integrated RAIDIntegrated RAID
Integrated RAID Integrated SATA Raid
RAID 0, 1, 10, 5
QuickSpecs
HP xw8600 Workstation
HP xw8600 WorkstationHP xw8600 Workstation
HP xw8600 Workstation
System Technical Specifications
DA - 12849 North America — Version 18 — October 1, 2009 Page 14

HP xw8600 Specifications

General

Chipset	Intel 5400
Form Factor	Tower
Processor	Intel Xeon 5400 series
Memory	Up to 32GB DDR2 FB-DIMM
Storage	SATA or SAS hard drives
Graphics	NVIDIA Quadro or ATI FirePro
Operating System	Windows XP, Vista, or Linux
Expansion Slots	PCI, PCI-X, PCIe
Power Supply	800W
