ENGLISH
Foldable Solar Charger

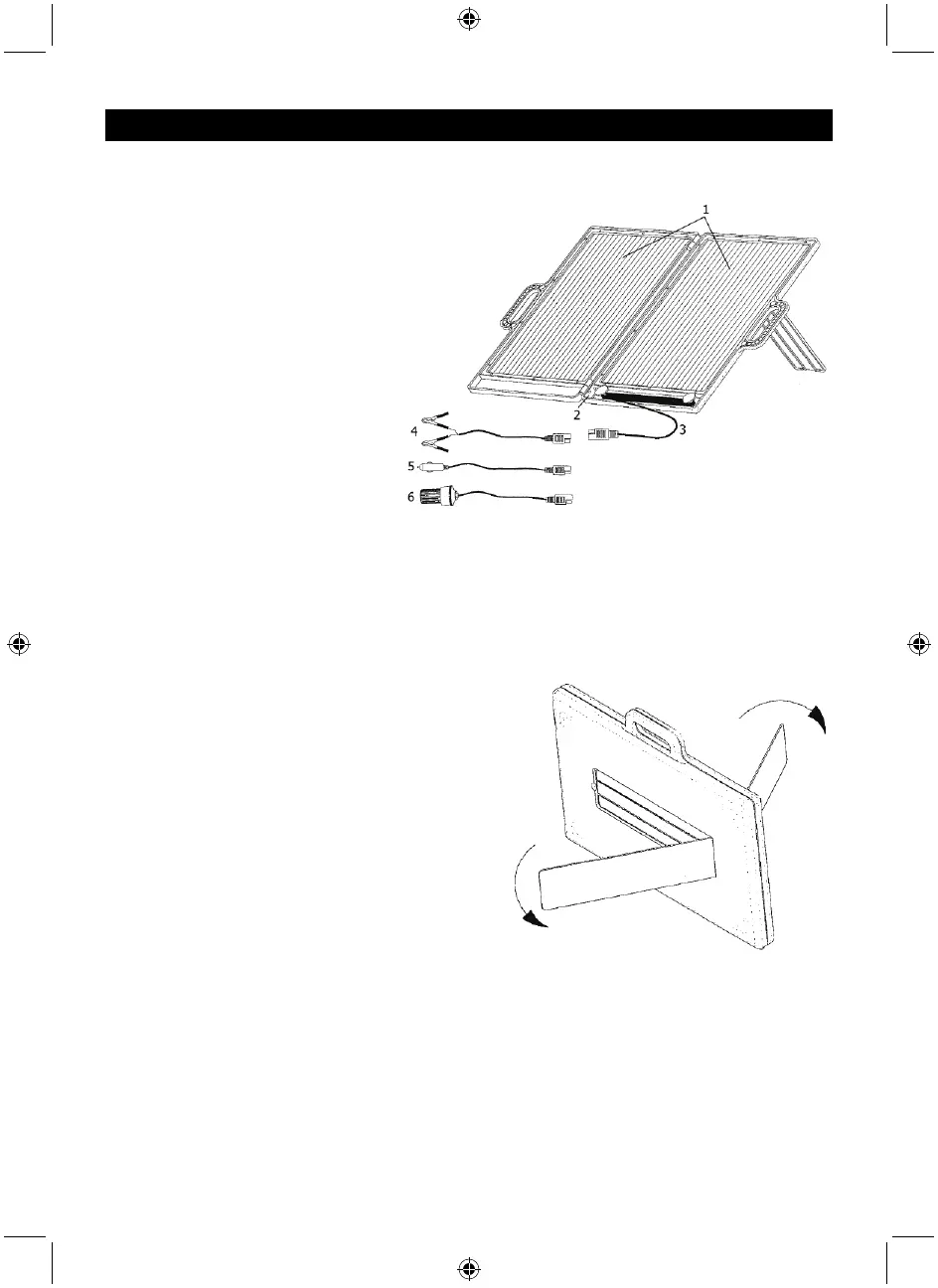

Contents:
1. = Solar panel
2. = LED indicator
3. = Cable
4. = Cable with battery clamps
5. = Cigarette plug cable
6. = Contra cigarette plug cable
Specifications:
Power: 13 W max.
Voltage output: 14 V
Current: 750 mA
Dimensions: 510x375x40 mm
Weight: 4.4 kg
Operating Instructions:
1. Flip open the holders and open the suitcase.
2. Position the panels so that they can catch direct
sunlight.
3. The LED indicator shows if the panels are
working properly.
4. Choose the right connector according to your
application and attach it to the main cable (3).
5. Connect the total system to your application.
6. The charger will not overcharge or damage the
battery. Similarly, a blocking diode ensures that
the charger cannot flatten your battery.
Note:
1. In some vehicles and boats, the cigarette lighter may not be connected when the ignition is turned
off. In such cases, connect the panel directly to the car battery with the battery clamps. Connect
the black lead to the negative (-) pole and the red lead to the positive (+) pole.
2. Disconnect the charger before starting the engine of your vehicle. The electrical surges from the
engine may damage the charger.
