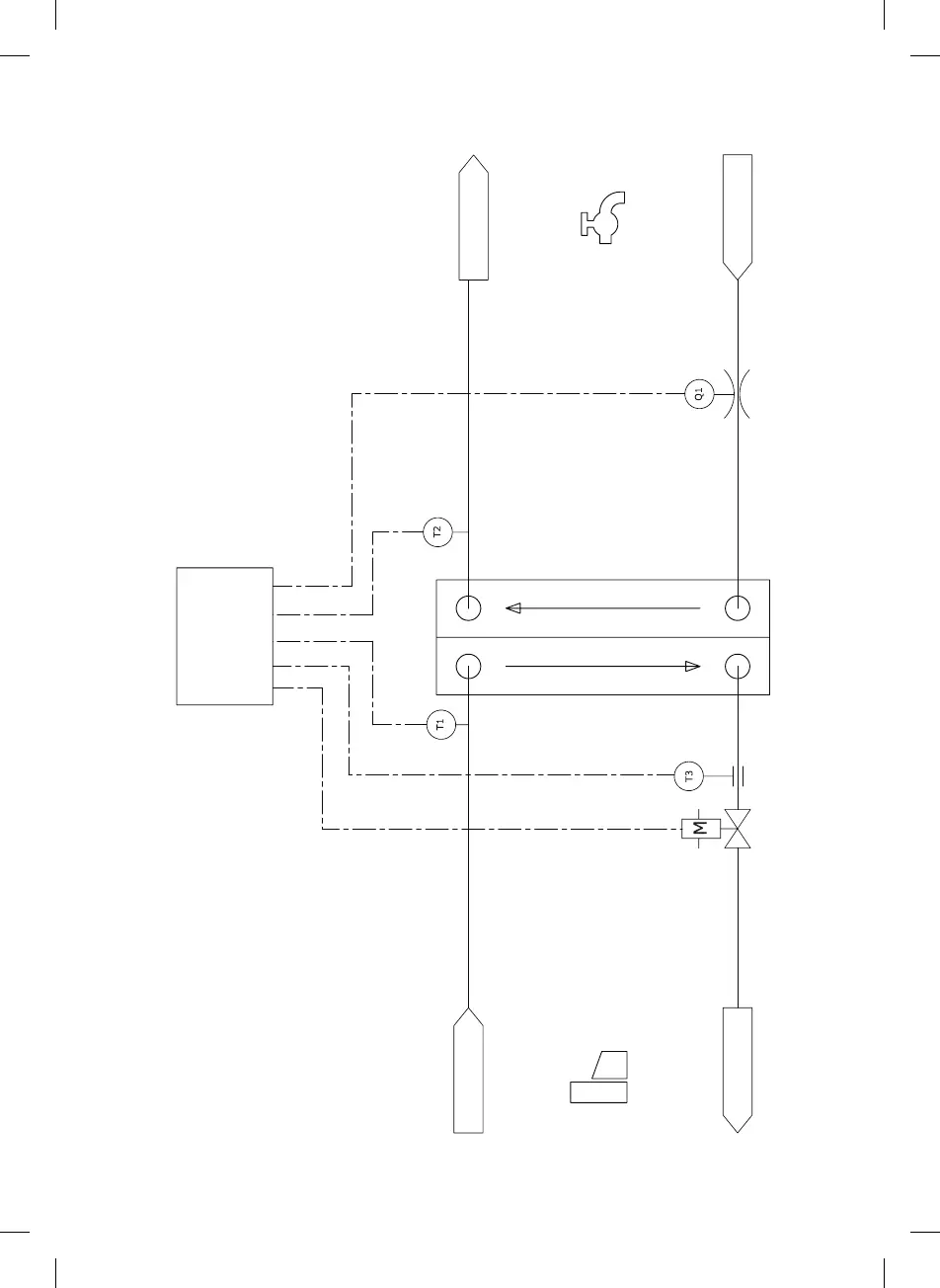

HSF EcoAdvance Instant II - Schematic



DH return
DH supply
DCW
DHW
Electronic regulator
1. Electronic regulator 2. Temperature sensor DH supply 3. Heat exchanger 4. Temperature sensor DHW 5. Control valve DHW 6. Temperature sensor DH return 7. Flow-sensor DCW
1
2 3 4
5 6
7
