The DELTA DECK is a Low Level Access Platform capable of platform heights ranging from 460mm up to 870mm from the
ground. It also features a four sided guardrail for the protec-tion of the user.
The whole unit can be folded into a compact, easily transportable package, with a total unit weight of 26.8kg and overall
dimensions of 310mm x 760mm x 1120mm.
Please ensure you read and fully understand this guide before assembly or disassembly of the DELTA DECK. As with any
other work equipment the DELTA DECK and this guide should always be used in conjunction with a suitable risk
assessment and method statement (by user) relative to the project to be undertaken.
This assembly guide has been compiled in accordance with BS EN 1298 and the DELTA DECK is manufactured in
accordance with ISO 9001 : 2015.
This assembly guide must be made available to the user / assembler at all times and can be downloaded as a pdf from the
HSS website.
KNOW YOU
R
DELTA
DECK
®
1
2
3

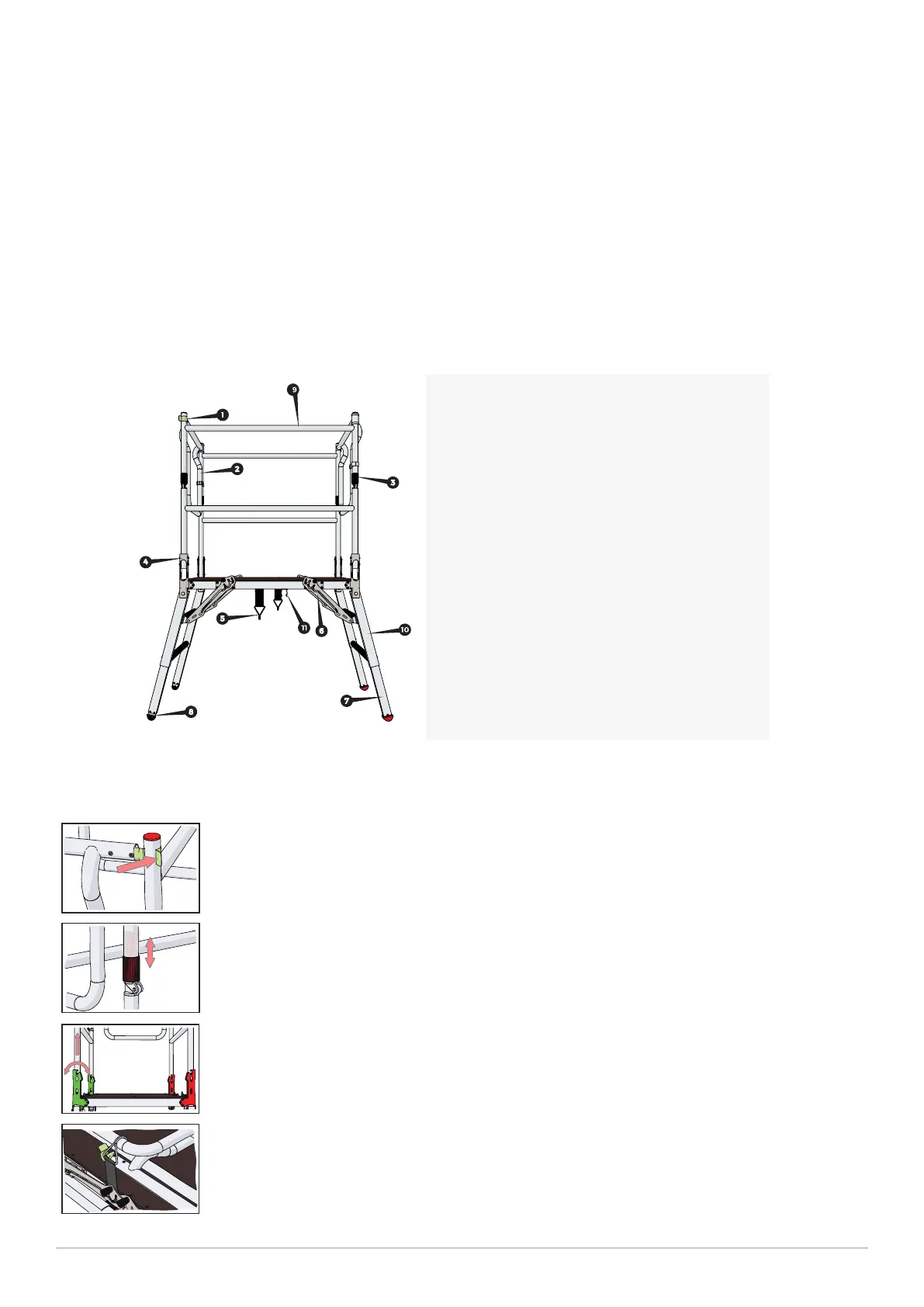

PARTS LISTING
4
5
6
GATE CATCHES
GATES
SIDE GUARDRAIL LOCKING DEVICES
SIDE GUARDRAIL BRACKETS
TRANSPORT STRAPS
LEG ADJUSTMENT LEVERS
ADJUSTABLE LEGS
LOCKING CASTORS
SIDE GUARDRAILS LEG
ASSEMBLIES LEG
RETAINING CLIPS
7
8
9
10
11
KNOW YOUR
COMPONENTS
DELTA DECK
®
GATE CATCH
The gate catch is a steel spring clip that can be released by pushing on the tab indicated by the arrow. T
o close the
gate simply pull the gate and ensure the catch springs over the side guardrail vertical tube gripping it fully.
SI
DE GUARDRAIL LOCKING DEVICE
The side guardrail locking device is a gravity operated locking collar used to lock the side guardrail folding hinge in
the upright position. Simply allow the collar to drop over the hinge when assembling the unit and slide the collar
up to release the hinge when disassembling the unit.
SIDE GUARDRAIL BRACKETS
The side guardrail brackets allow the side guardrails to fold and serve as a locking device for the lower portion of
the side guardrail. The wide slotted bracket is the side highlighted in green and the narrow slotted bracket
highlighted in red. On assembly the green bracket is opened last and on disassembly closed first. The side guardrail
must be lifted and rotated simultaneously as shown, during both assembly and disassembly.
TRANSPORT STRAP
The transport strap holds the folded side guardrail assemblies in place for when the unit is being transported or
stored. Pull the elasticated transport strap unitl the metal hook is clear of the guardrail and then either let it drop
over the guardrail for transportation or remove the hook from the guardrail and release the tension if assembling
the unit.
