Assembly Instructions

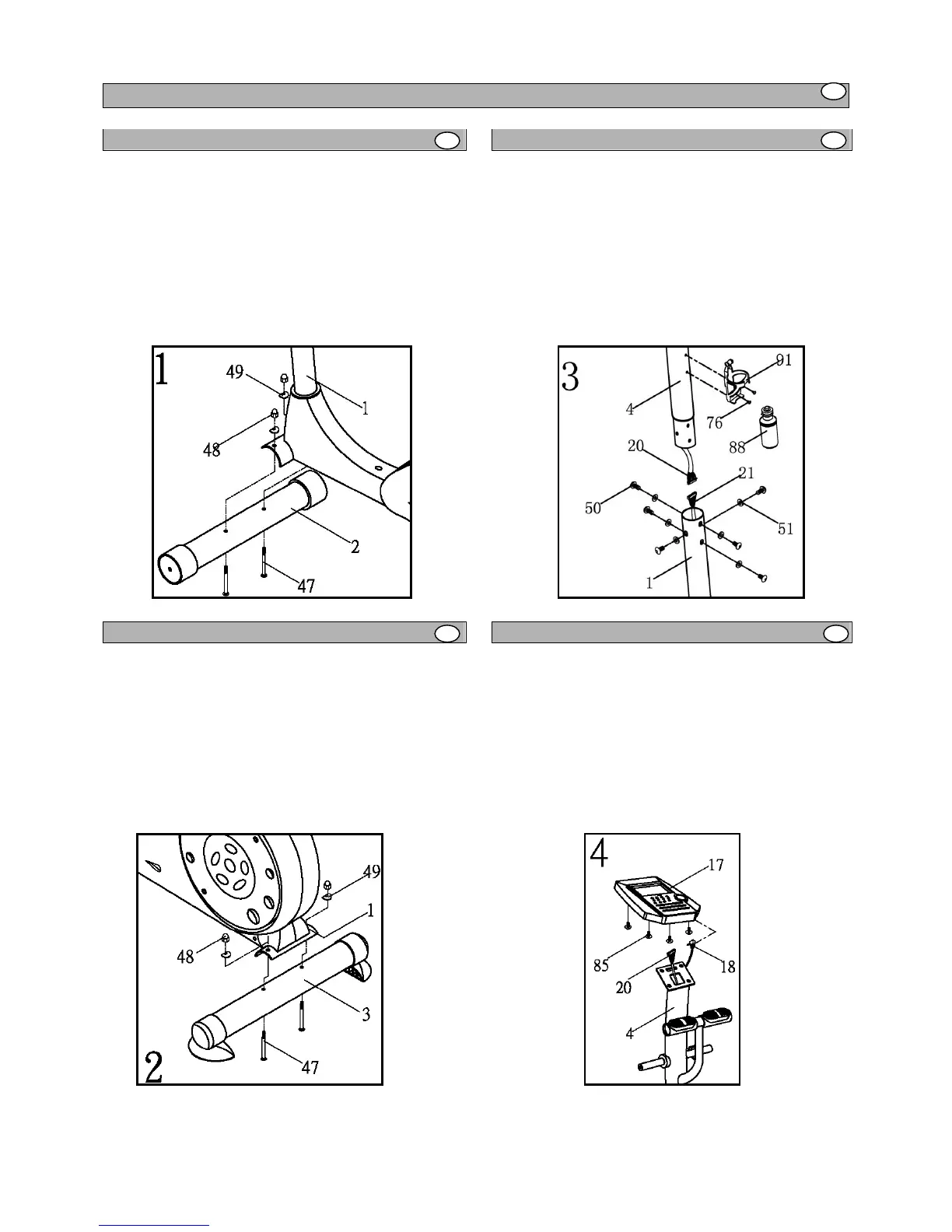

Step 1
1. Fasten front stabilizer (2) with 2 carriage bolts (47)
from the underside of stabilizers. Secure with 2 -
washers (49) & domed nuts (48) to main frame (1).
Step 2
1. Fasten rear stabilizer (3) with 2 carriage bolts (47)
from the underside of stabilizers. Secure with 2 -
washers (49) & domed nuts (48) to main frame (1)
Step 3
1. Connect the upper computer cable (20) with lower
computer cable (21) securely.
2. Unscrew the pre-assembled 6 hex. Bolt (50). Then,
put the handlebar post (4) into the main frame (1)
and fix it with 6 hex bolts (50) and 6 X washers (51).
3. Place bottle holder (91) on the handlebar post (4) and
fix it with 2 bolts (76). Then Put water bottle (88) into
bottle holder (91).
Step 4
1. Plug the upper computer cable (20) to jack at back of
computer (17). Plug handpulse sensor wire (18) to
jack at back of computer (17). Attach computer (17)
onto bracket at top of handlebar post (4), secure with
4 bolt (85) firmly.
