2 Operation

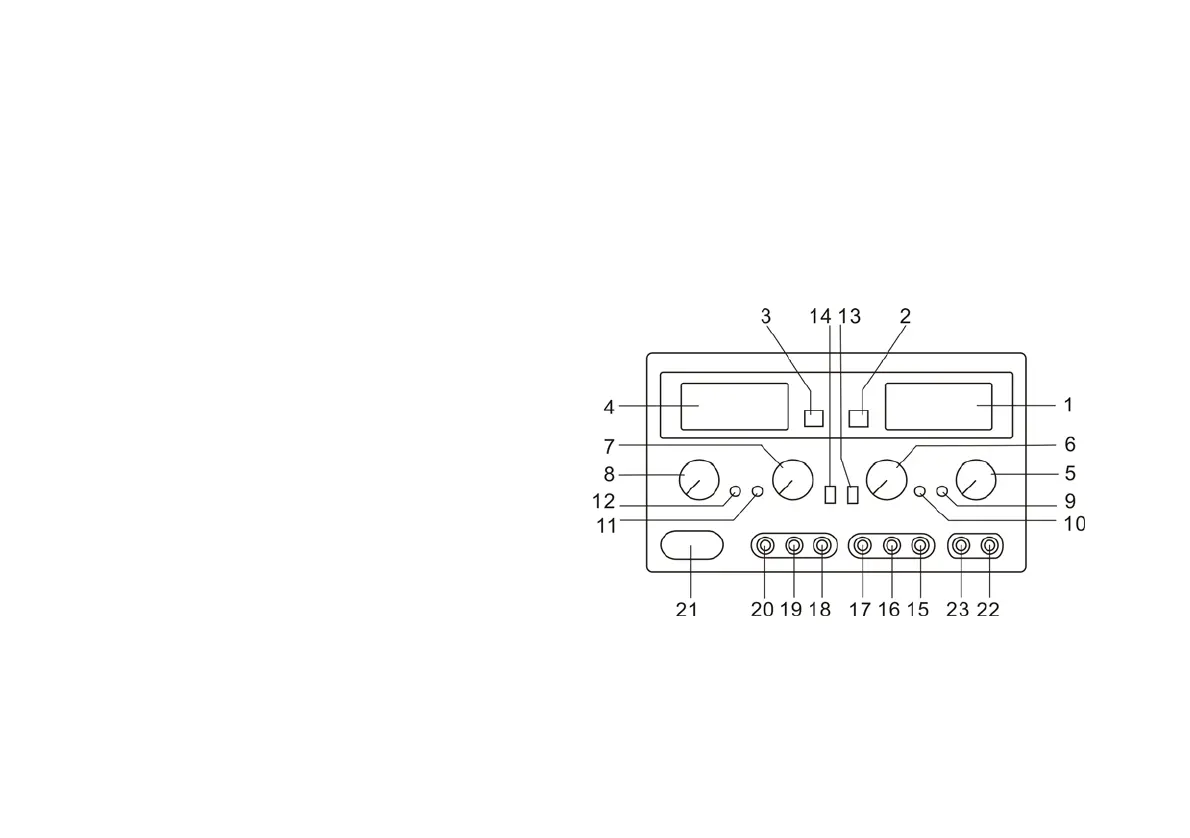

2.1 Front panel controls
(1) Voltage and current indication for master output.
(2) Voltage or current display selector for master output.
(3) Voltage or current display selector for slave output.
(4) Voltage and current indication for slave output.
(5) Voltage adjustment of master output.
(6) Current adjustment of master output.
(7) Voltage adjustment of slave output.
(8) Current adjustment of slave output.
(9) Constant voltage mode indicator
light for master output.
(10) Constant current mode indicator
light for master output.
(11) Constant voltage mode indicator
light for slave output.
(12) Constant current mode indicator
light for slave output and & twice current output indicator light in parallel mode.
(13) Independent, Series and Parallel selector switch.
(14) Independent, Series and Parallel selector switch.
