5

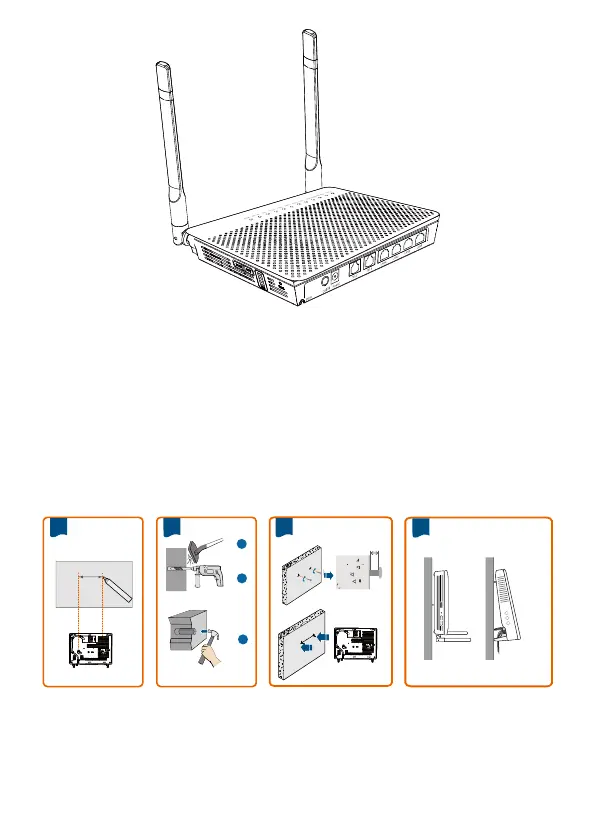

Mounting a GPON terminal onto the wall
(Only supported by some product models)
Step 1 Mark the positions of two holes used for mounting a GPON terminal, ensure that
the two holes have the same spacing as the two mounting holes.
Step 2 Select a proper drill according to the outer diameter of the screws. Use a
hammer drill to drill the marked positions on the wall. Then clean the wall and
install two expansion bolts.
Step 3 Use a screwdriver to fasten the screws into the expansion bolts, leaving the
heads of the screws 3 mm or 8 mm over the wall. Then install the GPON
terminal to the screws.
WLAN
WPS
Light
1
2
3
3 mm or 8 mm
1 2
3
4
WLAN
Reset
WPS
To Next Page
