Mounting a GPON terminal on the desk

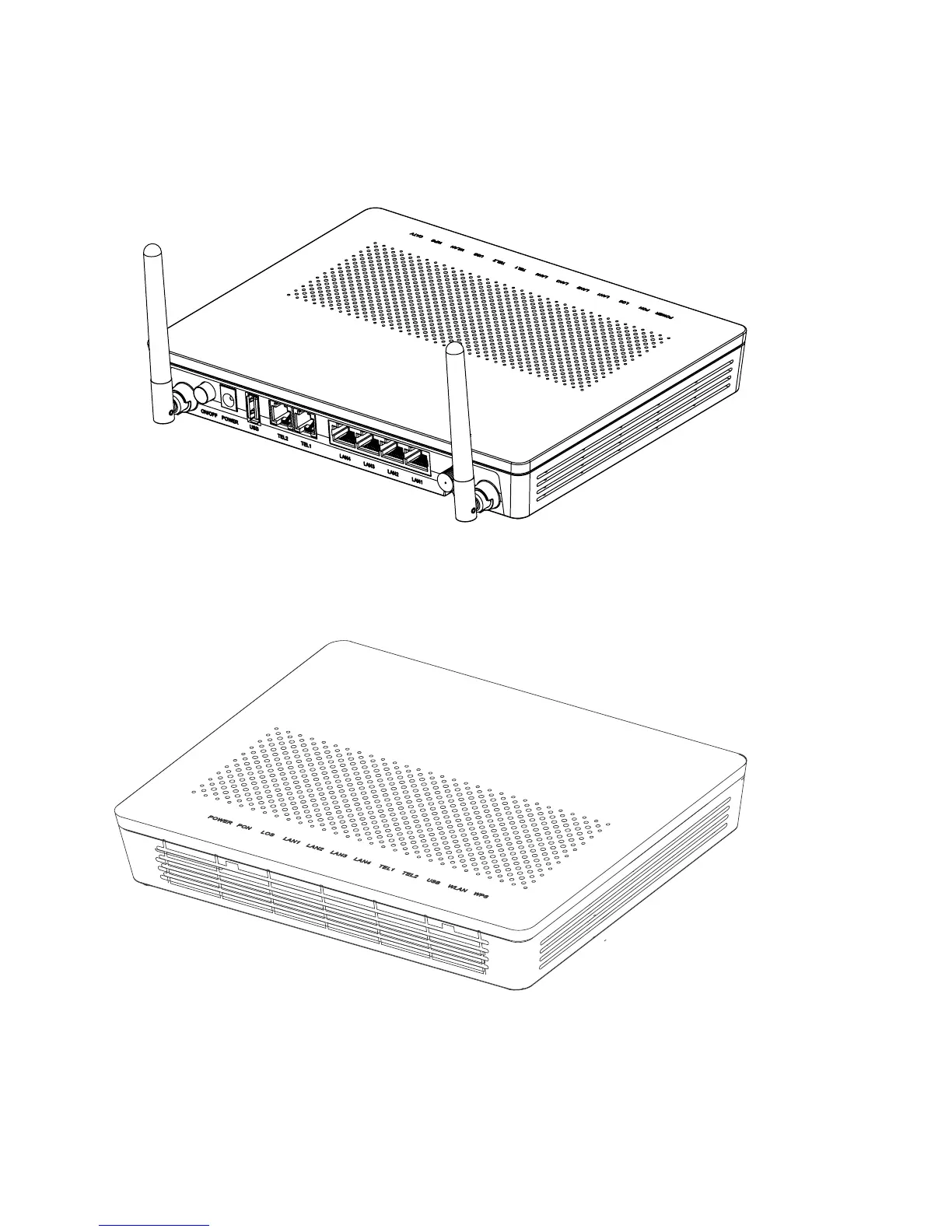

At present, only HG8245H and HG8247H ONTs are equipped with external
antennas. The figure below shows an HG8247H that is horizontally placed
on a desk.
4
The figure blow uses an HG8245A ONT as an example to show the ONT
that is horizontally placed on a desk.
Mounting terminal vertically on the desk
(
Only supported by some product models)
The following figure uses an HG8245D ONT as an example to show the
ONT that is vertically placed on a desk.
