Scenario 2 Connecting a DC power cable

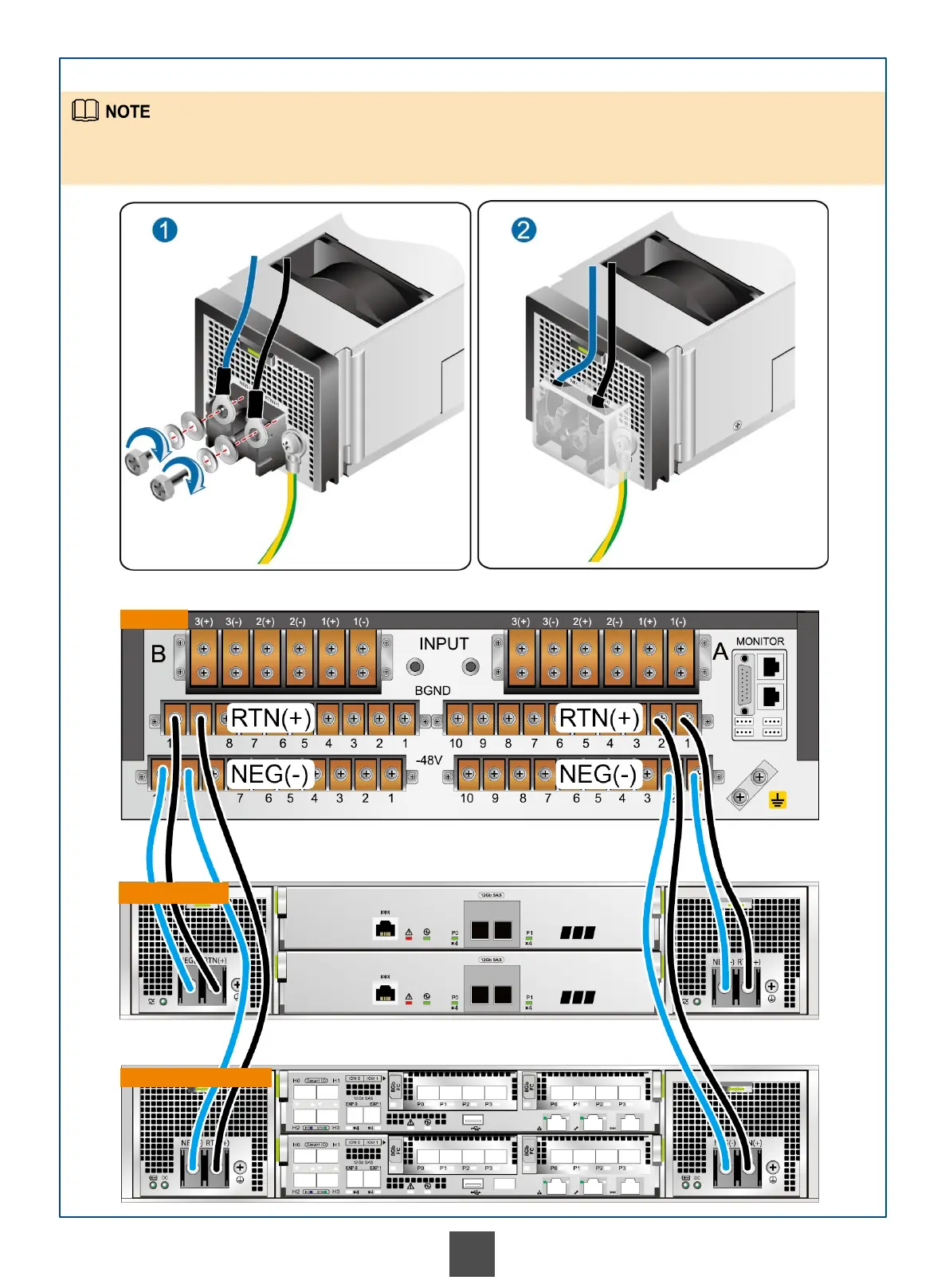

Complete view of the DC power cables
When you connect DC power cables, ensure that the black cable leading from the anode of the DC power
source connects to the RTN (+) terminal and that the blue cable leading from the cathode of the DC power
source connects to the NEG (-) terminal.
Disk enclosure
Controller enclosure
DC PDU
20
