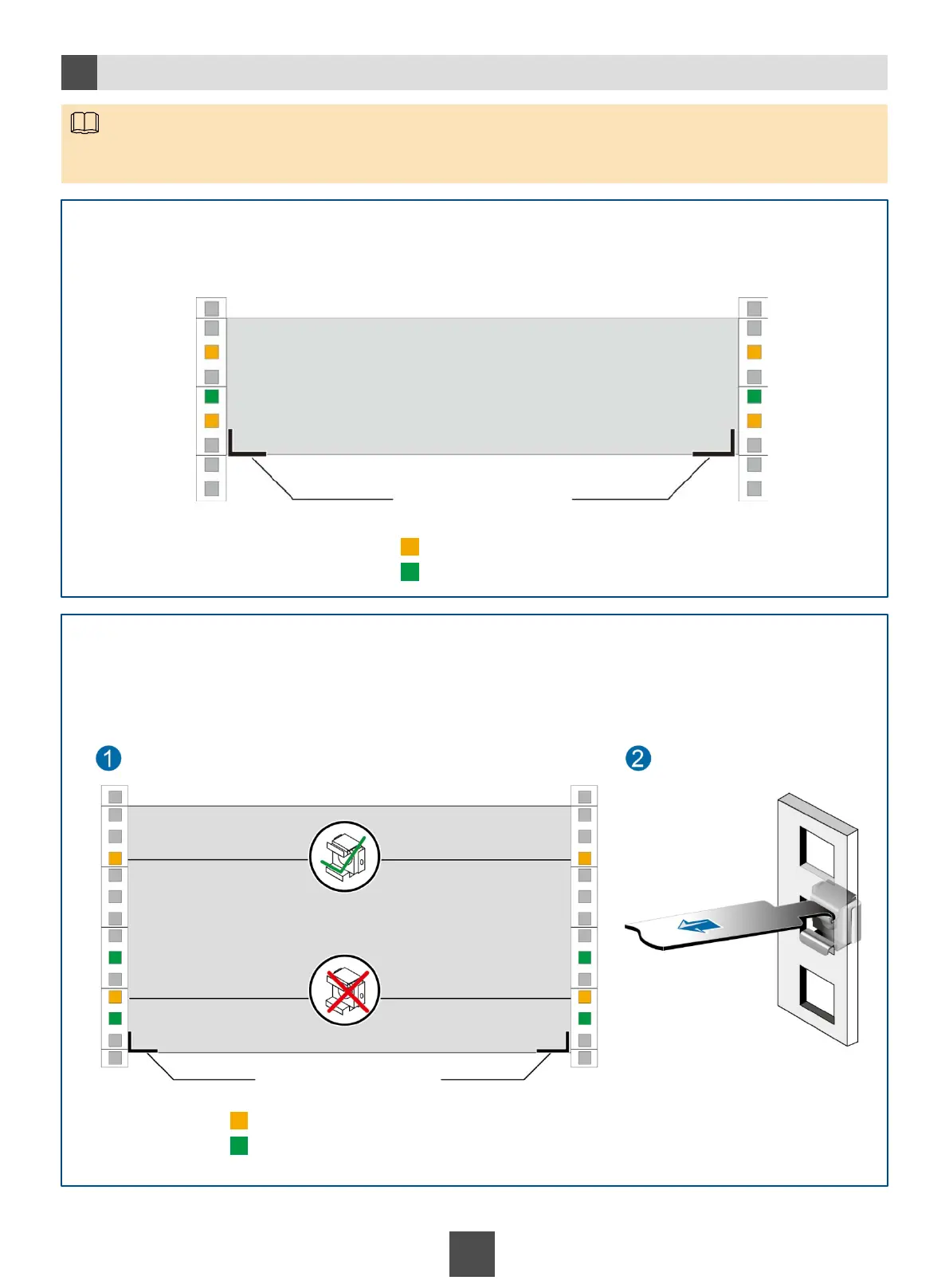

Determining device installation positions using installation templates
2c
Scenario 2
Installation position of a 4 U device
Scenario 1
Installation position of a 2 U device
Low base of the guide rail
On the mounting bars, use a marker to mark the holes where screws will be installed to secure the storage
devices.
Installation positions of 2 U device fixing screws
Installation positions of guide rail fixing screws
Low base of the guide rail
Installation positions of 4 U device fixing screws
Installation positions of guide rail fixing screws
Installation positions of floating nuts
5
High-density disk enclosures do not require floating nuts
NOTE
