Aligning Antennas

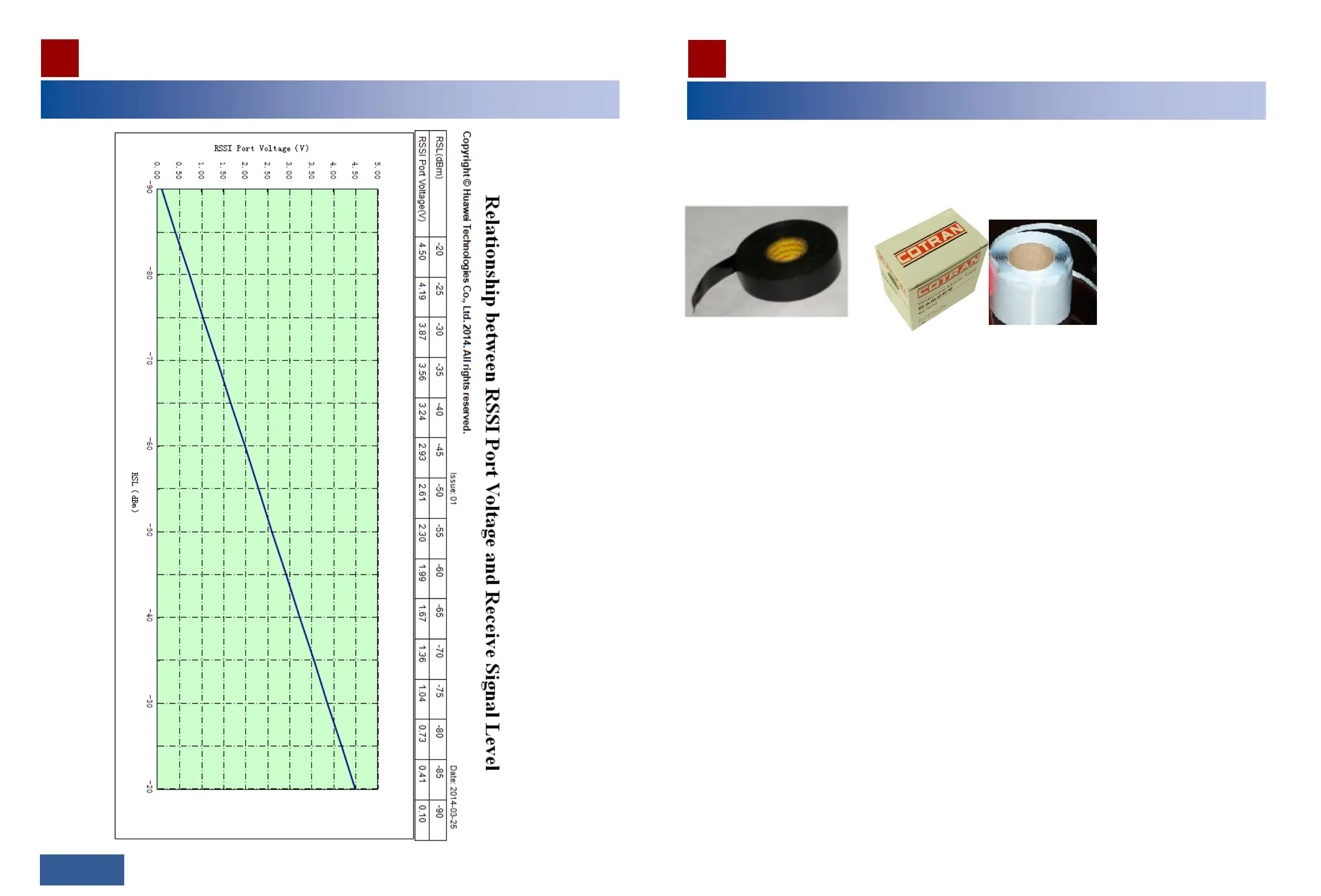

Relationship Between RSSI Port Voltage and Receive Signal Level
1. Wrap one layer of PVC tape around the exposed part of a group clip.
2. Wrap three layers of waterproof tape outside the PVC tape.
3. Wrap three layers of PVC tape outside the waterproof tape.
4. Secure the tape by using outdoor binding straps at the positions 1 cm to the wrapping edges.
Appendix
Waterproof tape
For details on how to use the
waterproof tape, see the use
instructions provided by the tape
vendor.
Waterproofing Ground Clips
PVC tape
