Installation Reference

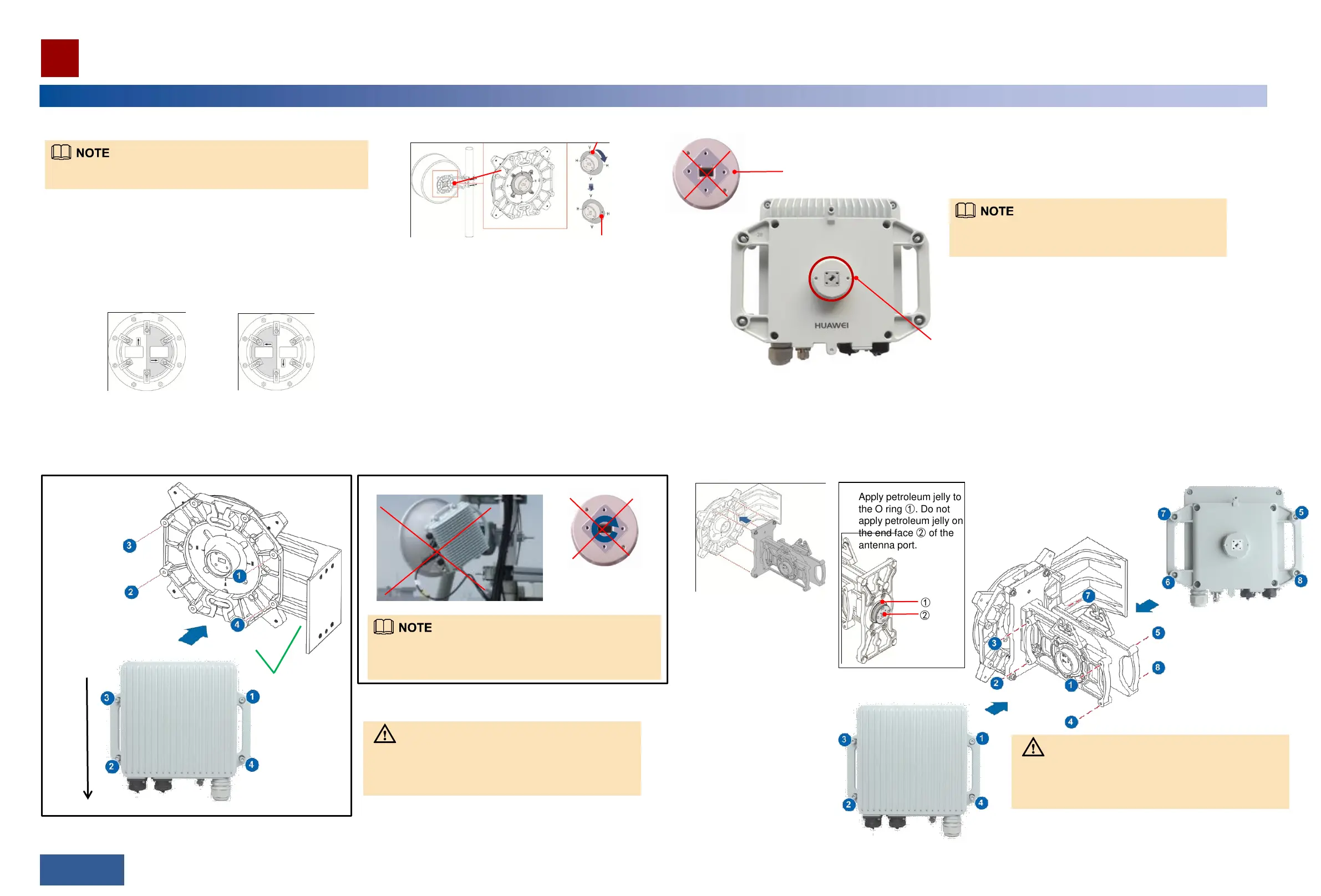

Installing the RTN 310
Change the polarization direction of a single-polarized antenna to horizontal.
Apply petroleum jelly around the exterior side ① of the feed. Do not apply petroleum jelly to the end face ② of the feed.
V (default)
Points to H mark
Apply petroleum jelly to
the O ring ①. Do not
apply petroleum jelly on
the end face ② of the
antenna port.
Install a hybrid coupler on the antenna.
①
②
34/35 >>
Refer to the antenna installation guide for information on how to
change the polarization direction.
②
Install RTN 310s onto the hybrid coupler.
Before installing the RTN 310, remove the protective
cover and film on the antenna port. Otherwise,
signal transmission will be affected.
Install the RTN 310 on the antenna. The antenna port of the RTN 310 can adapt to the polarization direction of the antenna.
The antenna port of the RTN 310 can adapt to the polarization
direction of the antenna. There is no need to manually change
the polarization direction of the RTN 310.
Incorrect
Correct
Vertical
Dual-polarized antenna with a
vertically-polarized feed on the left
Dual-polarized antenna with a
horizontally-polarized feed on the left
Change the polarization direction of a dual-polarized antenna.
Refer to the antenna installation guide for information on how to
change the polarization direction.
①
After finishing the installation, hold the RTN 310's
handles with your hands and turn it to check whether
it is installed securely.
CAUTION
After finishing the installation, hold the RTN 310's
handles with your hands and turn it to check whether
it is installed securely.
CAUTION
