Installation Reference

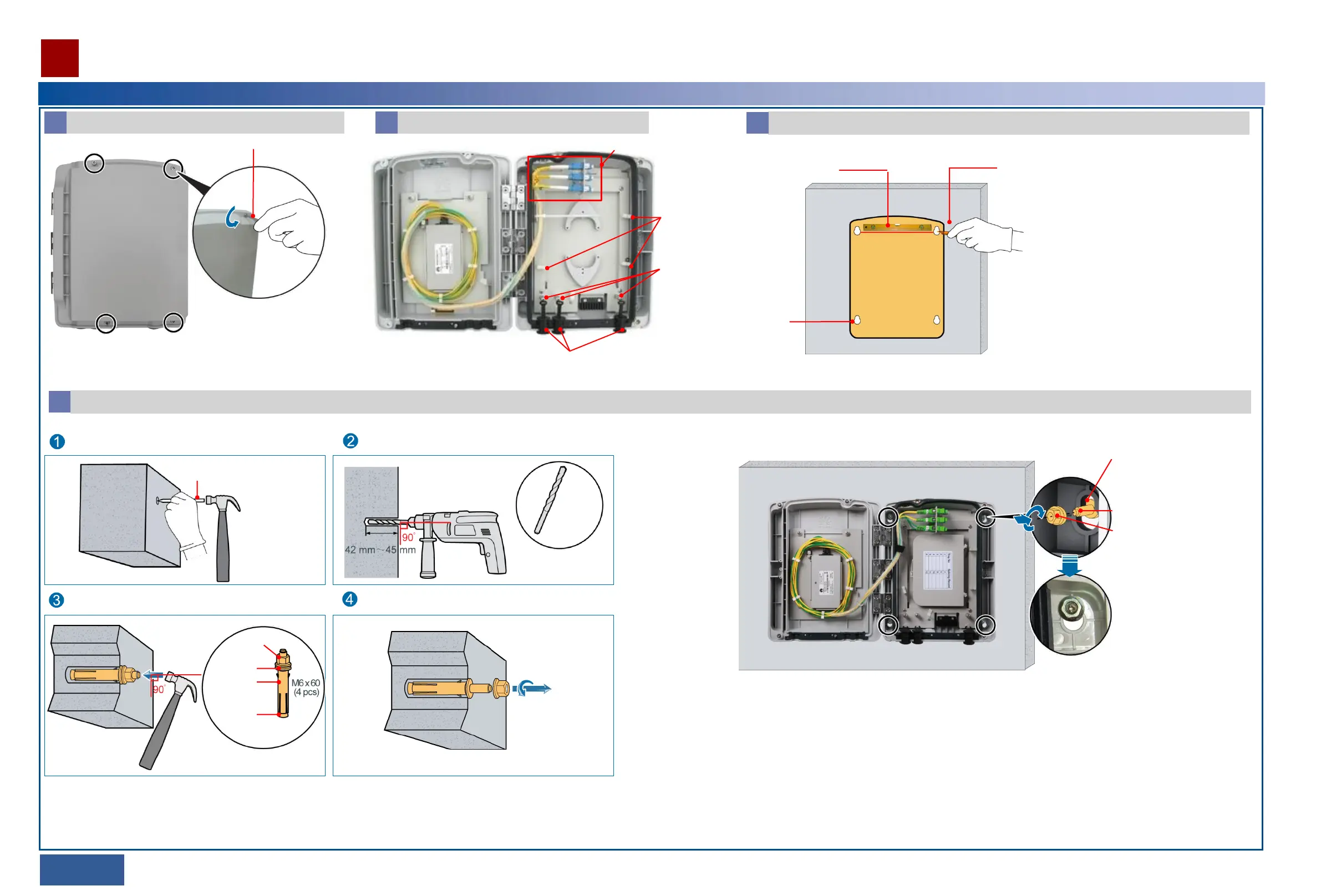

Installing an Outdoor Optical Splitter
4 mm hex key
Loosen the hex socket screws.
1
Open the cover of the outdoor optical splitter.
2
Cable distribution area
Fiber routing
clips
Fiber fixing
holes
Plugs
Optional: Install the outdoor optical splitter on a wall.
3
Level
Mounting
hole
Scribe
template
Scribe pen
3.1 Use a scribe template to determine the positions of mounting holes and use a scribe pen to mark
them.
Optional: Install the outdoor optical splitter on a wall.
3
3.2 Install expansion bolts.
Chisel drilling positions. Drill holes.
Remove the nut. Install expansion bolts.
Bull-point chisel
Ф8 drill bit
Nut
Flat washer
Expansion
tube
Expansion
bolt
3.3 Tighten the screws and secure the outdoor optical splitter.
Flat washer
Expansion bolt
Nut
