Remove the ground terminal from
the equipment.
1
Install support rob A.
2
Captive screws
(Optional) Install support rob B.
3
Use socket head
cap screws M6 to
fasten support rods.
Fix the aiming telescope
onto support rods.
5
Locking ring
Loosen the locking ring, adjust the support
plate for easy installation, and slightly fasten
the locking ring to prevent the objective lens
tube from moving.
4
Support plate
Loosen
Tighten
Hand wheel
Loosen the locking ring, adjust the aiming
telescope to a proper position, and tighten the
locking ring.
6
Adjust the equipment horizontally or vertically until the target tower or pole is aligned with the central
point of the cross.
7
•Install only support rob A if a 0.2 m or 0.3 m antenna is used.
•Install both support rob A and support rob B if a 0.6 m antenna is used.
NOTE
Appendix

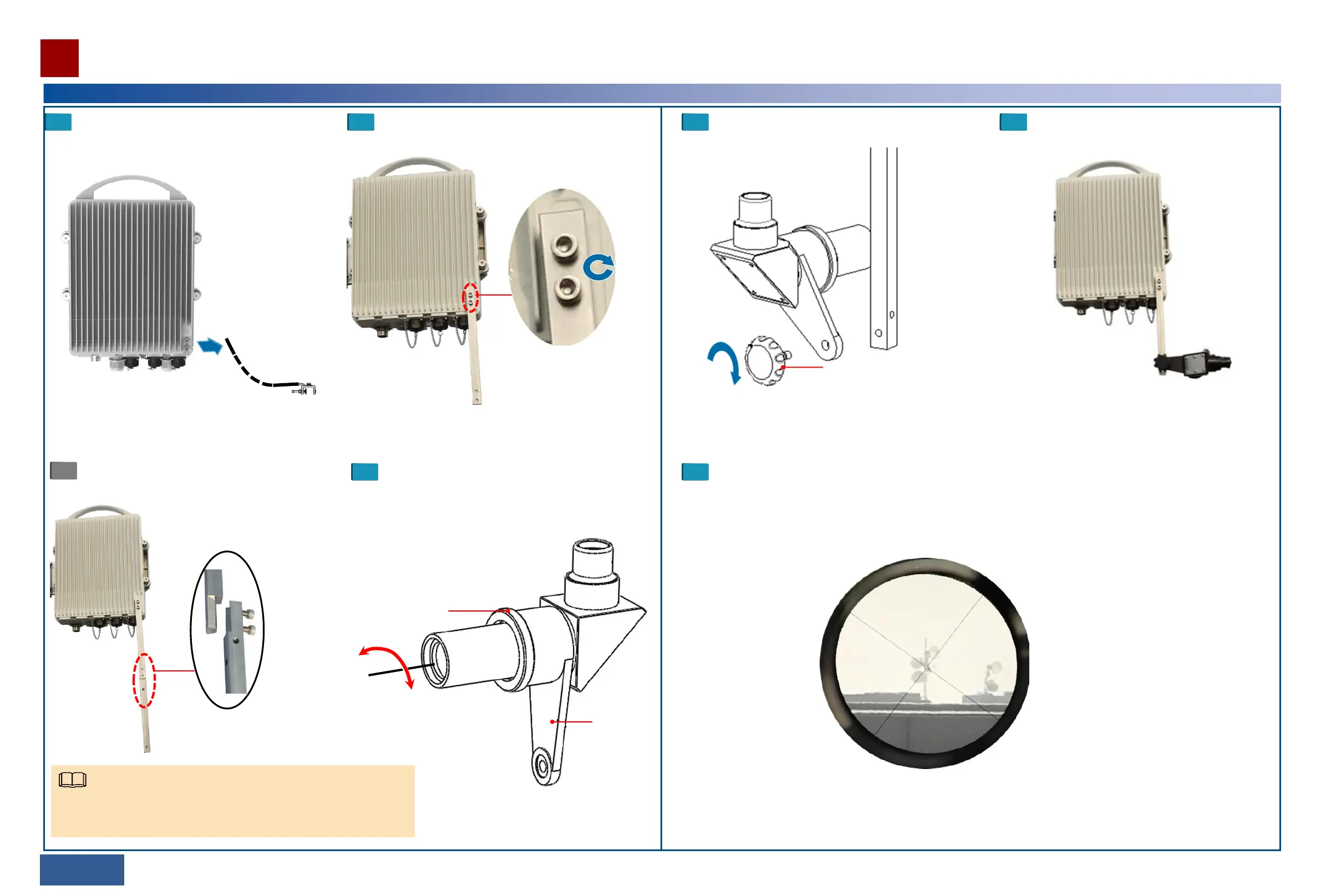

Installing the Aiming Telescope
