Step 6 Insert the positive and negative connectors into the corresponding DC positive and
negative input terminals of the solar inverter.

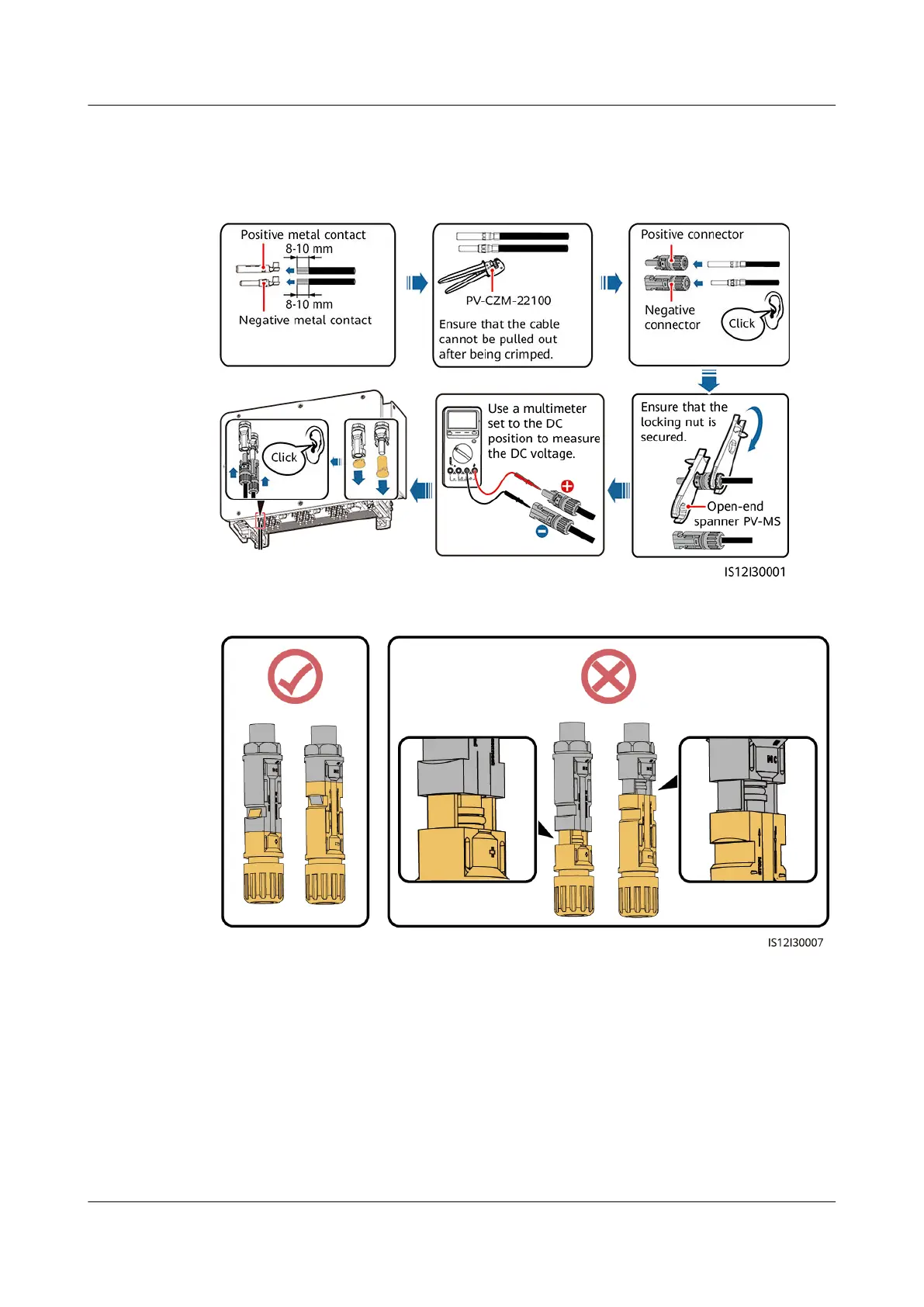

Figure 5-23 Connecting DC input power cables
Figure 5-24 Connector connection
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 11 (2021-11-10) Copyright © Huawei Technologies Co., Ltd. 64
