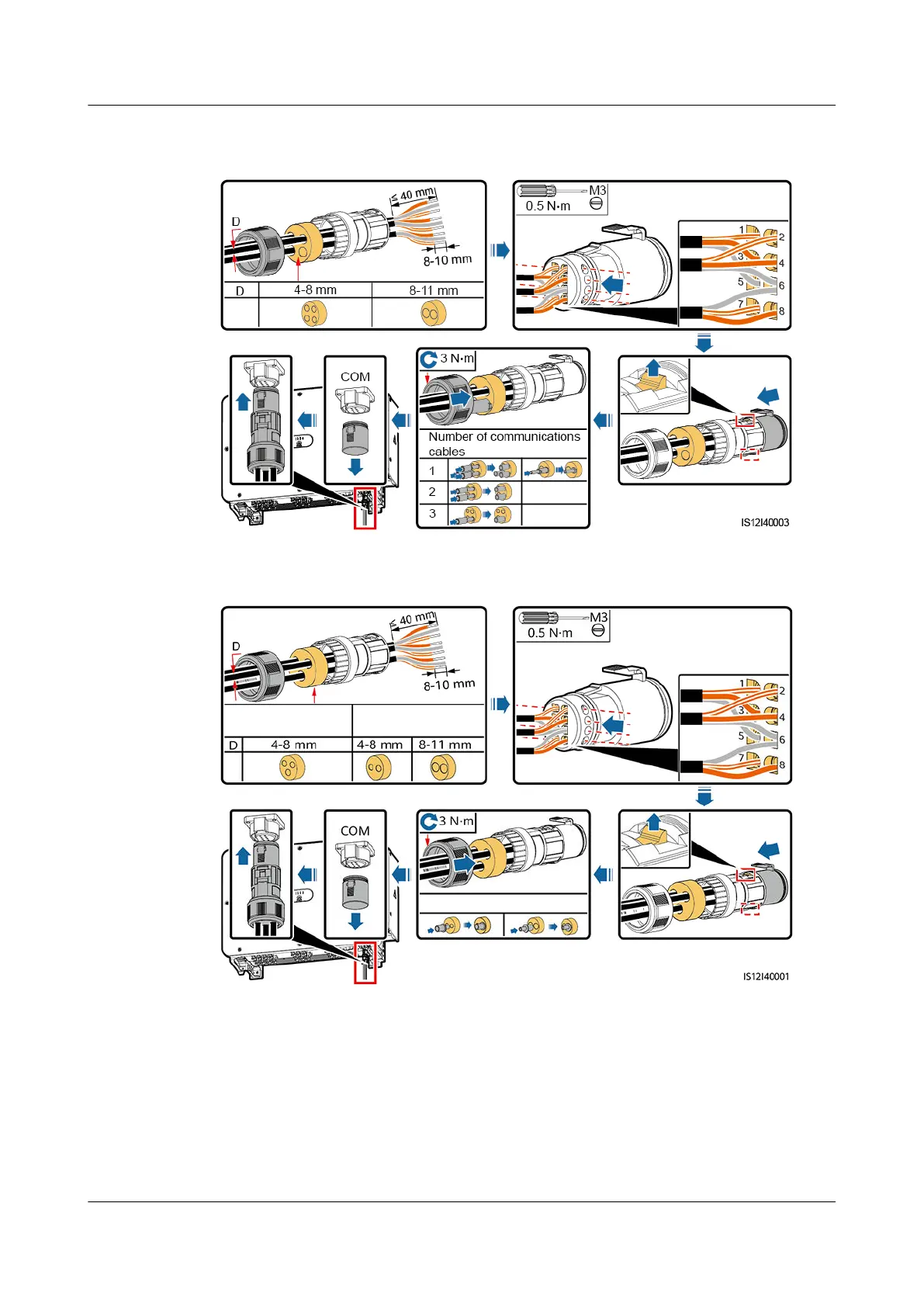

Figure 5-26 Connecting RS485 communications cables (4–8 mm four-hole rubber
plug)
Figure 5-27 Connecting RS485 communications cables (4–8 mm two-hole or
three-hole rubber plug)
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 68
