Item Description
NOTE
l a. The width does not include the size of mounting ears.
l b. The height is 1 U (1 U = 1.75 inches, or about 44.45 mm), which is a height unit defined in
International Electrotechnical Commission (IEC) 60297 standards.
l c. The actual transmit power depends on local laws and regulations.
l d. Temperature and humidity are measured 1.5 m above the floor and 0.4 m in front of the rack
when no protection plate exists before or after the rack.
2.2.3 USG6507/6530
The USG6507/6530 has only AC models and no DC models and provides one power module
and fixed ports by default. However, optional modules, such as an additional power module,
hard disks, and expansion cards, are supported.
2.2.3.1 Device Overview
The USG6507/6530 uses an integrated chassis that contains the fixed interface board, power
module, and fan module. You can also add some optional modules, such as hard disk,
additional power module, and expansion cards, to improve system reliability and add more
ports.
Appearance

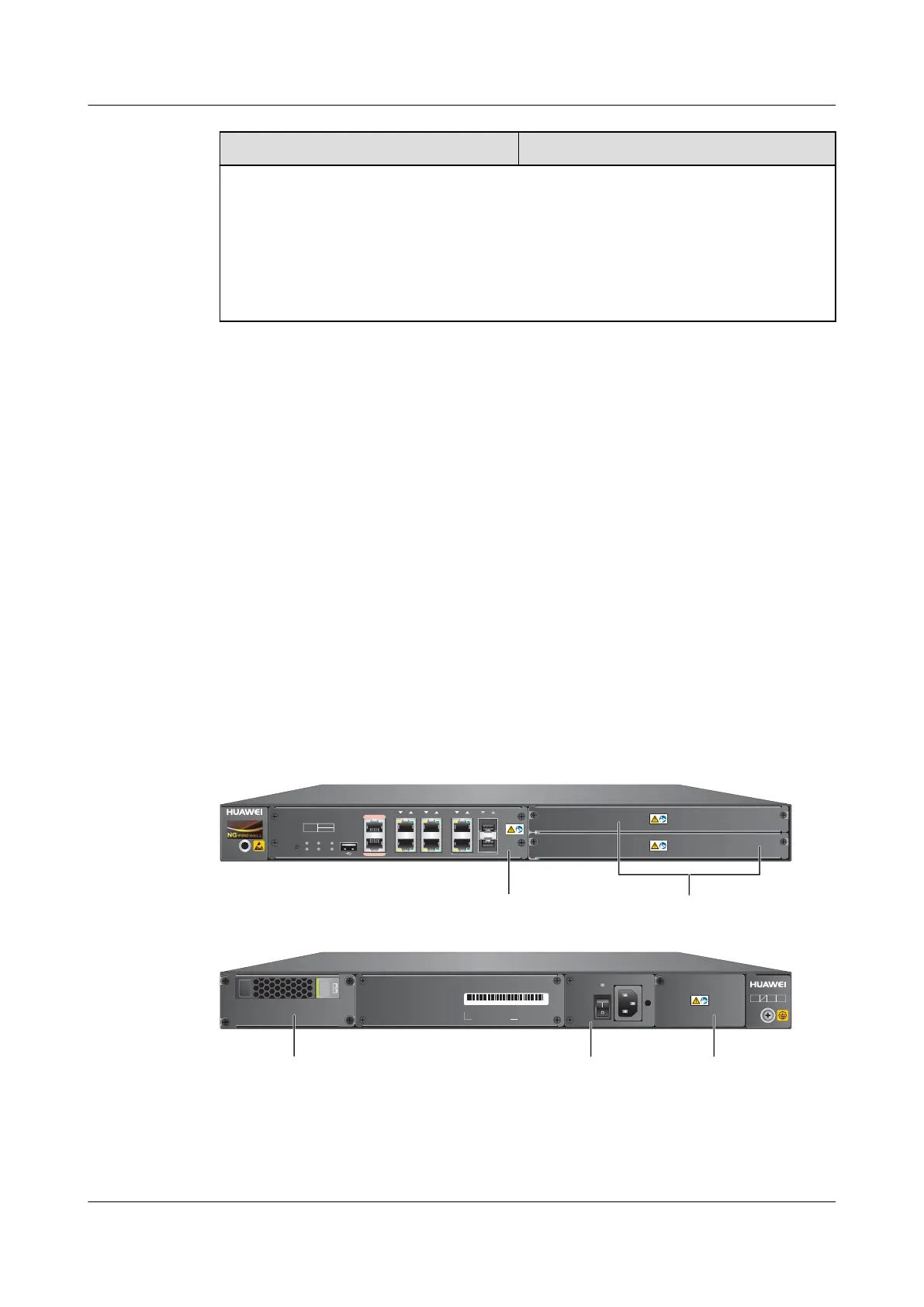

Figure 2-53 illustrates the appearance of the USG6507/6530.
Figure 2-53 Appearance of USG6507/6530
Secospace USG6000
4 HDD 5 PWR 6 PWR
XXXXXXXXXXXXXXXXXXXXXXXXXXX
SM-HDD-SAS300G-B
OUTPUT
ON
OFF
~100-240V;50/60Hz;2.5A
Secospace USG6000
01 23 45 45
RST
SYS
ALM
PWR
HDD
MGMT
MODE
0/1
2
3
CONSOLE
MGMT
Front view
Rear view
Expansion slotsFixed interface board
Hard disk combination (optional) Power module
Slot for optional
power module
Table 2-42 describes the functions of the USG6507/6530 components.
