Huawei WS5200 User Manual

1
Quick Start Guide

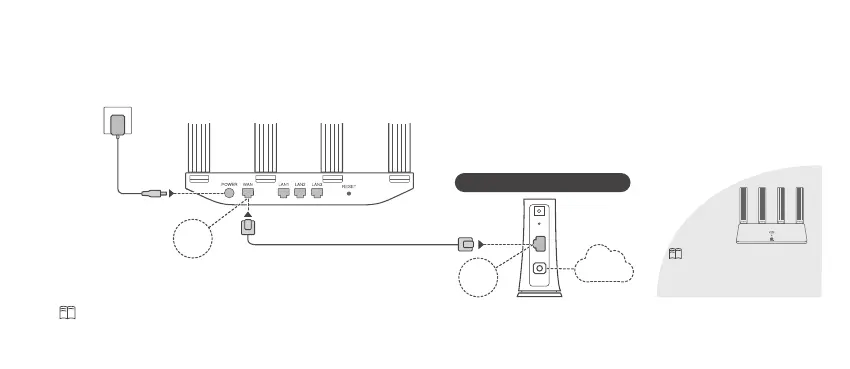

Step 1: Connecting the cables
If the indicator stays red, this indicates that the router is not connected to the Internet.
Please refer to "Step 2: Conguring the network settings".
HUAWEI WiFi WS5200
Optical/broadband/cable modem
Internet
Position the four antennas
upright to ensure optimal
Wi-Fi
®
signal strength.
from your broadband provider
POWER
LAN
PON
RESET
WAN
LAN

Huawei WS5200 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
WAN connection type	RJ-45
Wi-Fi standards	Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11s, IEEE 802.11v
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	4
Product type	Tabletop router
Product color	White
Output current	1 A
Output voltage	12 V
Power source type	DC
Power consumption (typical)	12 W
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	120 mm
Width	205 mm
Height	36.8 mm
