Huawei WS7100 User Manual

3

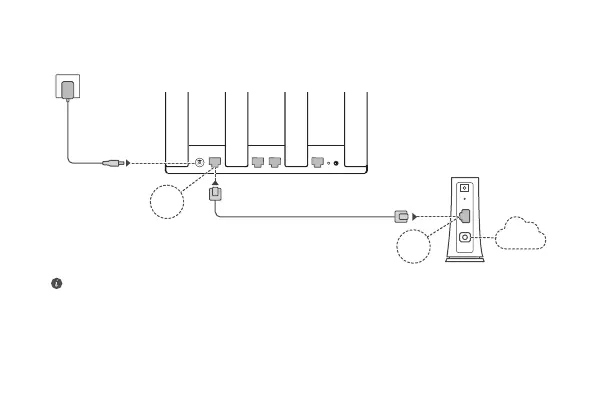

Step 1: Connecting the cables
POWER RESETLAN1 LAN2 LAN3WAN
POWER
LAN
PON
RESET
HUAWEI WiFi AX3
WAN
LAN
Internet
Optical/Broadband/cable modem
(from your broadband provider)
• Erect the all antennas upright to ensure optimized Wi-Fi
®
signal.
• If the indicator stays red, this indicates that the router is not connected to the Internet.
Please refer to "Step 2: Conguring the network settings".

Huawei WS7100 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
VPN support	VPN pass through
Security algorithms	WPA3
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Processor cores	2
Processor frequency	1.2 MHz
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	White
LED indicators	Status
AC input voltage	220 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	- W
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2976 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Cables included	LAN (RJ-45)
Antennas quantity	4
Antenna gain level (max)	5 dBi
Package type	Box

Weight and Dimensions

Depth	39.7 mm
Width	225 mm
Height	159.2 mm
Weight	387 g
