Huffy 540D - Parts List and Hardware Identification; Hardware Identifier (Bolts & Nuts); Hardware Identifier (Other Components)

6
ID# 21198805 10/05

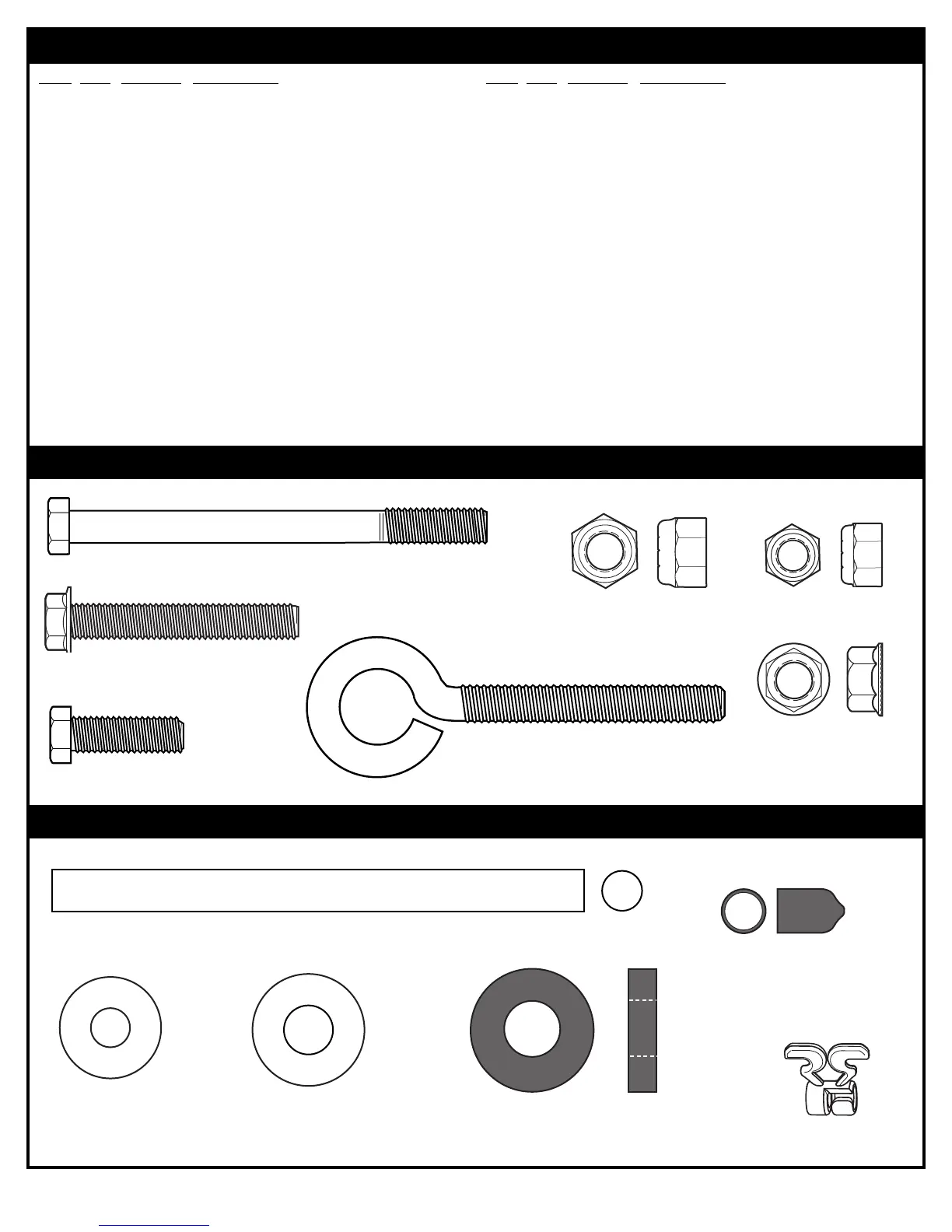

HARDWARE IDENTIFIER (BOLTS & NUTS)
HARDWARE IDENTIFIER (OTHER)
Item Qty. Part No. Description
1 1 206740 Tank (White)
2 1 200628 Wheel Axle
3 2 226401 Wheel
4 1 908121 Bottom Pole Section
5 1 202820 Rod, 3/8 O.D. x 4-3/4 Long
6 1 202822 Eye Bolt, 3/8-16 x 3-3/4 Long
7 1 200627 Wheel Bracket
8 5 203063 Lock Nut, Nylon Insert, 3/8-16
9 1 201625 Bolt, Hex Head, Yellow Dichromate,
5/16-18 x 3.60" Long
10 6* 203218 Washer, 5/16 Flat
11 2 986206 Tank Strut
12 1 203220 Lock Nut, 5/16-18
13 1 201261 Label, Moving System
14 2 203156 Bolt, Hex Head, 5/16-18 x 1 Long
15 6* 203100 Nut, Hex Flange 5/16-18
16 1 Rim
17 12* 201219 Clip, Net Holder
Item
Qty. Part No. Description
18 1 902006 Extension Arm, White
19 8* 203309 Washer, 1 O.D.
20 4 203104 Bolt, Hex Flange, 5/16-18 x 2 Long
21 2 200837 Spacer, Plastic
22 2 201562 U-bolt, Round, 3/8-16 x 2-3/4 Long
23 1 Net
24 1 201190 Cap
25 1 203124 Tie Down Stake
26 2 201651 Spacer, Wheel Axle
27 1 201568 T-Strap
28 1 201189 Tank Cap
29 4 200516 Bolt Covers, Black Vinyl
* You may have extra parts with this model.
* Units with 42” steel frame acrylic backboard do not require
the use of included board struts (.75” x 22”)
PARTS LIST (See Hardware Identifier)
Item #12 (1)
Item #10 (6)*
Item #8 (5)
Item #17 (12)*
Item #14 (2)
Item #15 (6)
Item #19 (8)*
Item #26 (2)
Item #6 (1)
Item #9 (1)
Item #5 (1)
Item #29 (4)*
Item #20 (4)
