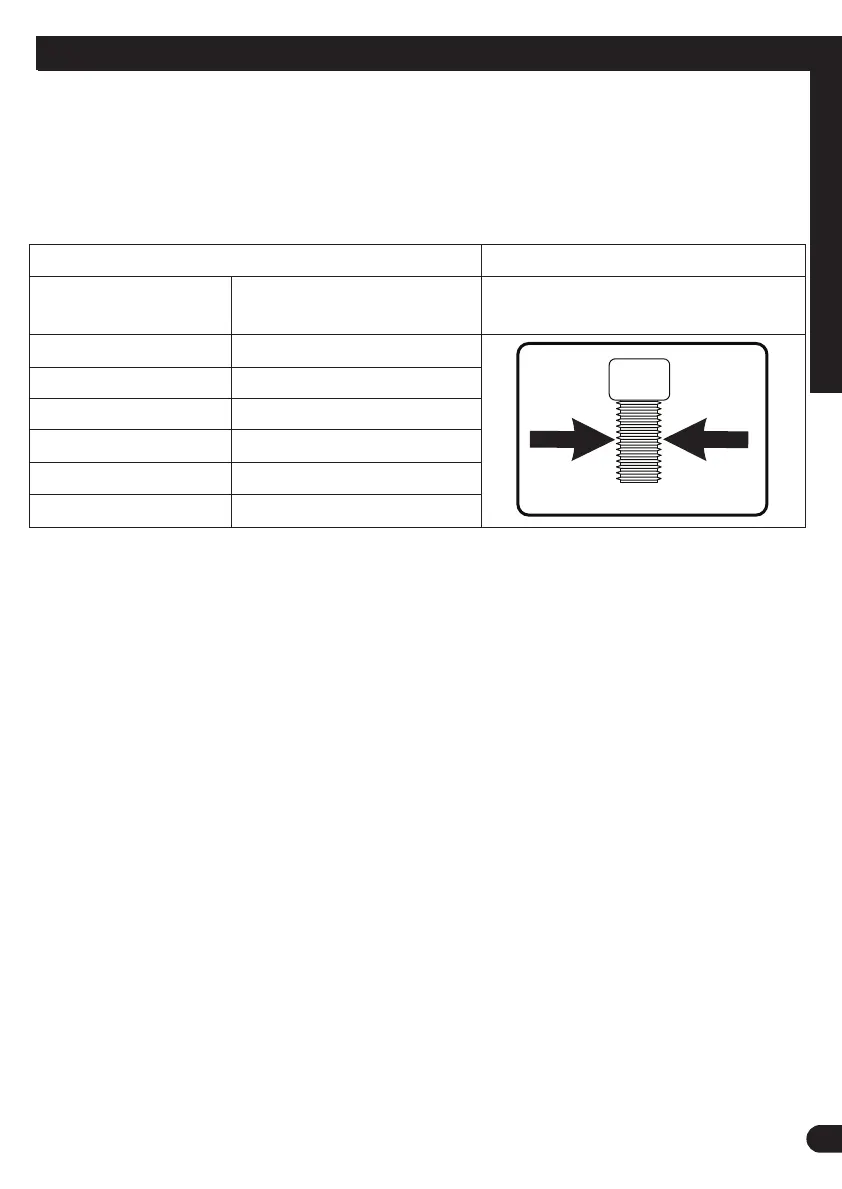

Torque Table - Recommended Torque:
Recommended Torque for clean, dry threads: How to Measure:
Fastener Size Torque (ft-lb / N•m)
Screw or bolt size is determined by the
width at the THREADS as shown.
.157 in (4 mm) 3.1 ft-lbs (4.2 N•m)
.196 in (5 mm) 5 ft-lbs (6.8 N•m)
.236 in (6 mm) 7 ft-lb (9.5 N•m)
.275 in (7 mm) 12 ft-lbs (16.3 N•m)
.314 in (8 mm) 17 ft-lbs (23 N•m)
.393 in (10 mm) 33 ft-lbs (44.7 N•m)
Use of a torque wrench is recommended.
Recommended torque for each fastener is
listed below. In addition to tightening to
the recommended torque, please ensure
the parts of the product are suffi ciently
tightened by performing the functional tests
(in the component assembly sections of the
owner’s manual) on each component as it is
tightened.
NOTE: Please check that all fasteners on the
product are torqued according to the table
below:
Recommended Torque for clean, dry threads: How to Measure:
Fastener Size Torque (ft-lb / N•m)
Screw or bolt size is determined by
the width at the THREADS as shown.
.236 in (6 mm) 7-11.1 ft-lb (9.5-15 N•m)
.314 in (8 mm) 17-18.5 ft-lbs (23-25 N•m)
.393 in (10 mm) 33-36.9 ft-lbs (44.7-50 N•m)
