P/N 211644 11/03
Item Qty
. Part No. Description
11 Rim
2 2 202604 Bolt, Carriage 3/8 x 4.75” Long
3 2 203474 Washer, Flat, 1”O.D.
4 2 203017 Hex Nut, 3/8”
5 2 203063 Nylon Lock-Nut, 3/8”
6 8 203232 Washer, 3/4” O.D.
7 2 200484 Spring, Zinc
8 2 202601 Washer, Flat
9 2 202602 Lock Washer
10 2 202523 Spacer
11 2 203439 Bolt, Hex, 3/8 x 6” Long
12 2 220140 Screw, Self-Tapping
13 1 908087 Back Bracket - Red
14 1 108085 Inner Bracket - Zinc
15 1 918086 Cover Plate - Red
16 4 201611 Bolt, Hex, 5/16-18 x 3" Long
17 4 203100 Whiz Nut, 5/16”
18 1 204290 Net
19 1 202655 Label, Logo
20 2 202636 Special Nut, Locking
21 2 203795 Special Nut
22 2 202603 Nylon Washer
23 1 202531 Tension and Leveling Label
PARTS LIST - See Hardware Identifier
BACK
BRACKET
SPRINGS

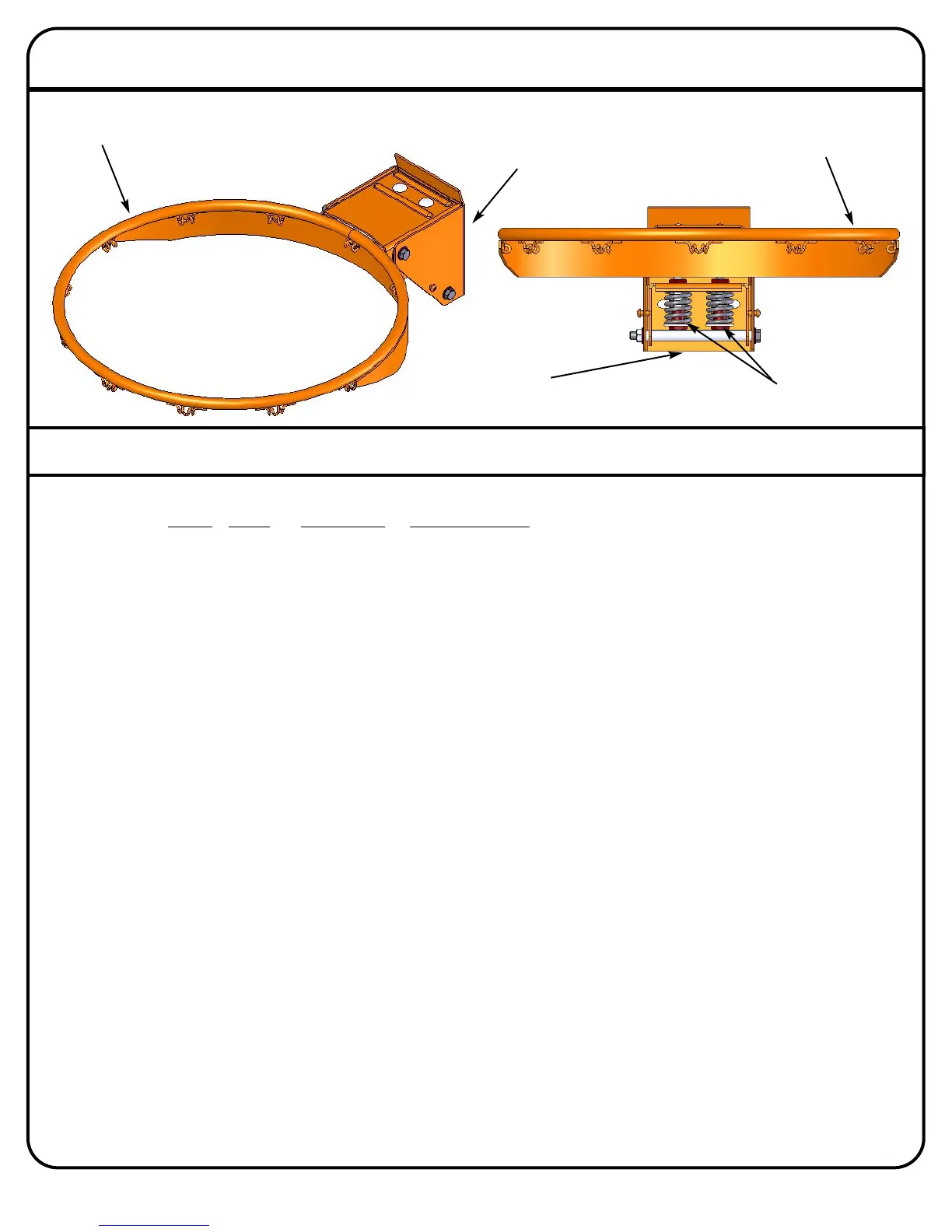

Get to know the basic parts of your basketball system.....
BACK
BRACKET
RIM
RIM
To Next Page
