Huffy True Timber - Assembly; Install Handlebar; Attach Components with Unit on its Side

10
Assembly
Assembly
A
C
E
D
B
E

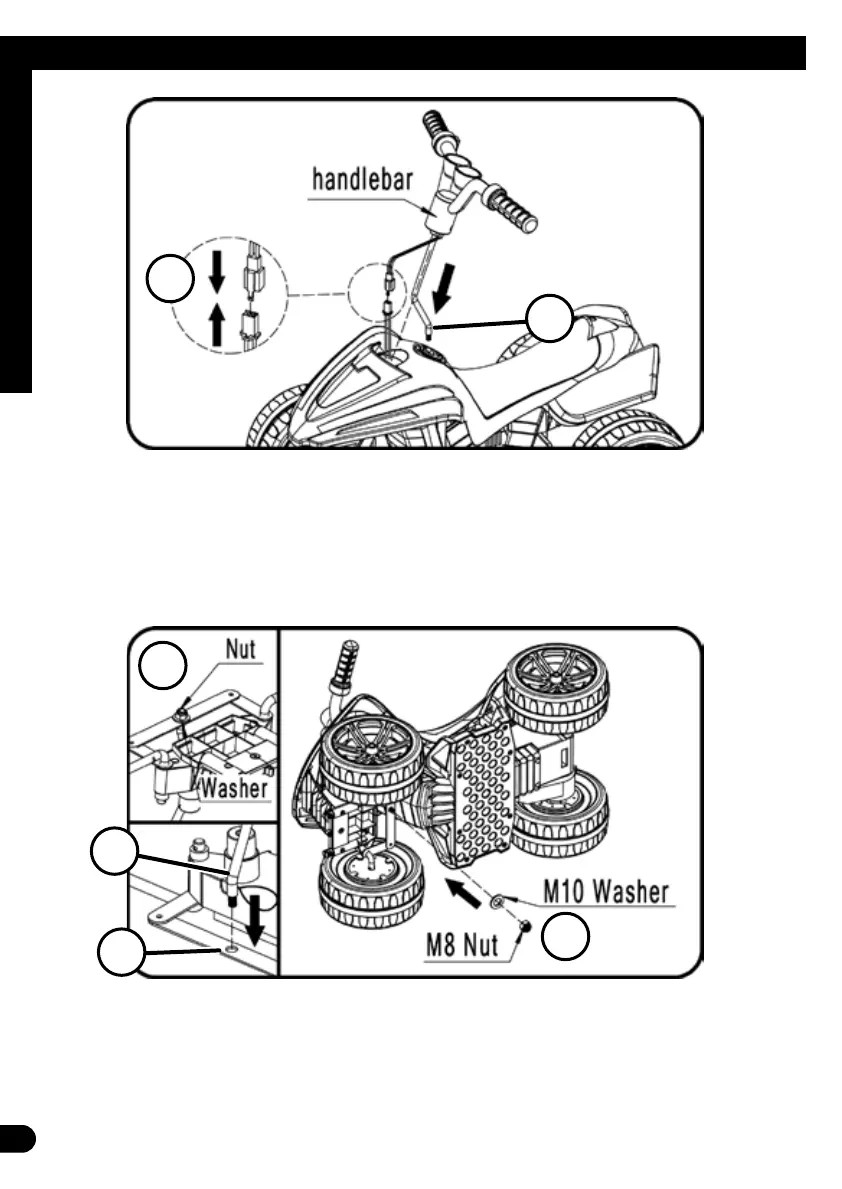

INSTALL HANDLEBAR:
• Position Handlebar as shown and insert J-Bar
A
down into body hole.
• Firmly connect Power Plug
B
and insert extra wire down into body hole making sure no
wires are pinched or bound up.
• Proceed to next steps.
WITH UNIT ON IT’S SIDE:
• Make sure J-Bar end
C
ts into Steering Bar hole
D
.
• Install Washer and Locknut
E
on end of J-Bar.
• Tighten fully and securely.
• Make sure Handlebar turns wheels evenly and smoothly.
