Huffy True Timber - Install Front Bumper; Attach Power Connector to Battery

11
A
A
B
B
M3.5x12 Screw
Bumper
Assembly
Assembly

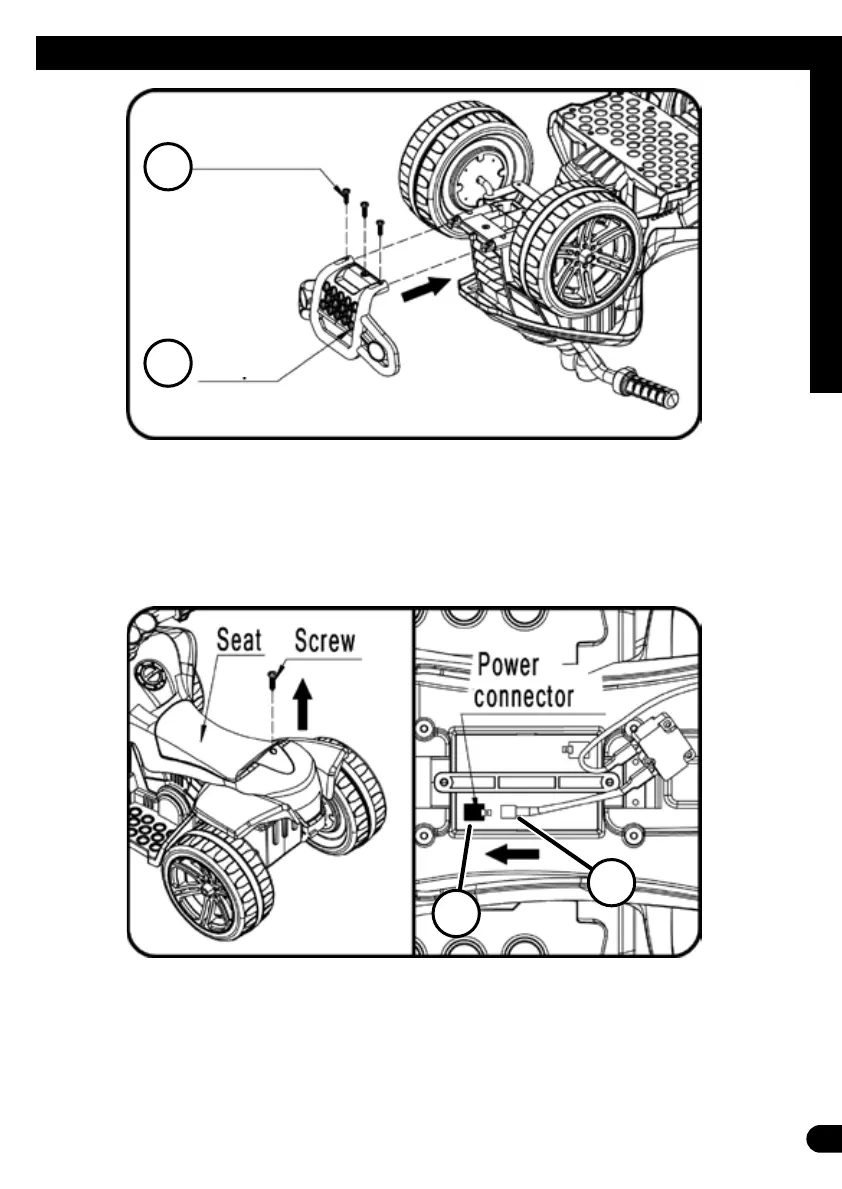

ATTACH POWER CONNECTOR TO BATTERY:
• If installed, remove Seat and Seat Screw.
• Attach Power Connector
A
rmly and completely to battery Connector
B
.
• Re-install Seat and Screw.
INSTALL FRONT BUMPER:
• With unit up-side-down, position Front Bumper
A
as shown to line up mounting holes.
• Install Screws
B
evenly and securely.
