Schlafen: GENTIS E 1. 2021
Labelling in type list drawings / assembly notes for wall units
The majority of units have two wall mounting points (= number of support boards), if these are to be fitted as wall units. This is not explicitly mentioned in the type list. If a die-
rent number of wall mounting points (= support boards) is required, this is marked in the drawings in the type list with numbers in black boxes. Every support board requires four
mounting screws.
One assembly mortar set is sucient for up to a maximum of 3 support boards or 4 wall side-panels.
Important note: Depending on the composition of the wall (see wall types illustrated above), assembly must be carried out using the special assembly mortar set and a standard
trade mastic tool which are the basic essentials for safe and clean workmanship.
Wall composition / assembly instruction
Important notes:
The composition of walls must be ascertained before concluding a contract and be checked by a qualified fitter before assembly takes place.
Assembly may only be carried out by a qualified fitter under careful observation of the assembly instructions.
The plastic Rawl plugs supplied by hülsta as a standard set are only suitable for concrete ≥ C12/15, if the wall composition and compression strength corresponds to the table
below. Under no circumstances must a unit be assembled on light masonry.
Furthermore, we provide a mounting set with assembly mortar for the types of walls listed below (see assembly mortar set below). Again, assembly must be carried out by a
qualified fitter under careful observation of the wall composition and assembly instruction. The compression strength levels stated below must be met under all circumstances.
Assembly mortar set for up to a maximum
of 3 support boards consisting of:
9x injection retaining sleeve
9x screw-in sleeve
1x injection cartridge
2x static mixer
1x assembly instructions
Please use the mounting screws from the standard set
(supplied free of charge).
Mounting sets
Standard set
The standard set consists of 4 plastic Rawl plugs and 4 mounting screws and is sucient for 1 support board. The standard sets are included in the packet of fittings to match the
number of support boards.
A dierent and more suitable type of mounting must be chosen by a qualified fitter in all other cases. hülsta cannot accept any responsibility
for the choice of any other types of mounting! Please note that if the units are not mounted properly on the wall, there is a risk of the units
falling down or tipping over – especially when alternative mounting materials acquired on site have been used. Generally speaking, you as a
dealer/qualified fitter are responsible for the correct wall mounting of the units.
3
4
= 3 support boards
= 4 support boards, etc.
Building bricks Mz 12
Compression strength ≥ 12 N/mm²
Limestone blocks KS 12
Compression strength ≥ 12 N/mm²
Perforated sand lime bricks KSL12
Compression strength ≥ 12 N/mm²
Vertically perforated bricks HLz 12
Compression strength ≥ 12 N/mm²
Bulk density ≥ 1.0 kg/dm³
Concrete C12/15
Compression strength ≥ 15 N/mm²
Assembly mortar set only suitable for the materials stated below!Standard set
Solid blocks of light concrete V2
Compression strength ≥ 2 N/mm²
Perforated blocks of light concrete Hbl 2
Compression strength ≥ 2 N/mm²
Aerated concrete PP2
Compression strength ≥ 2 N/mm²

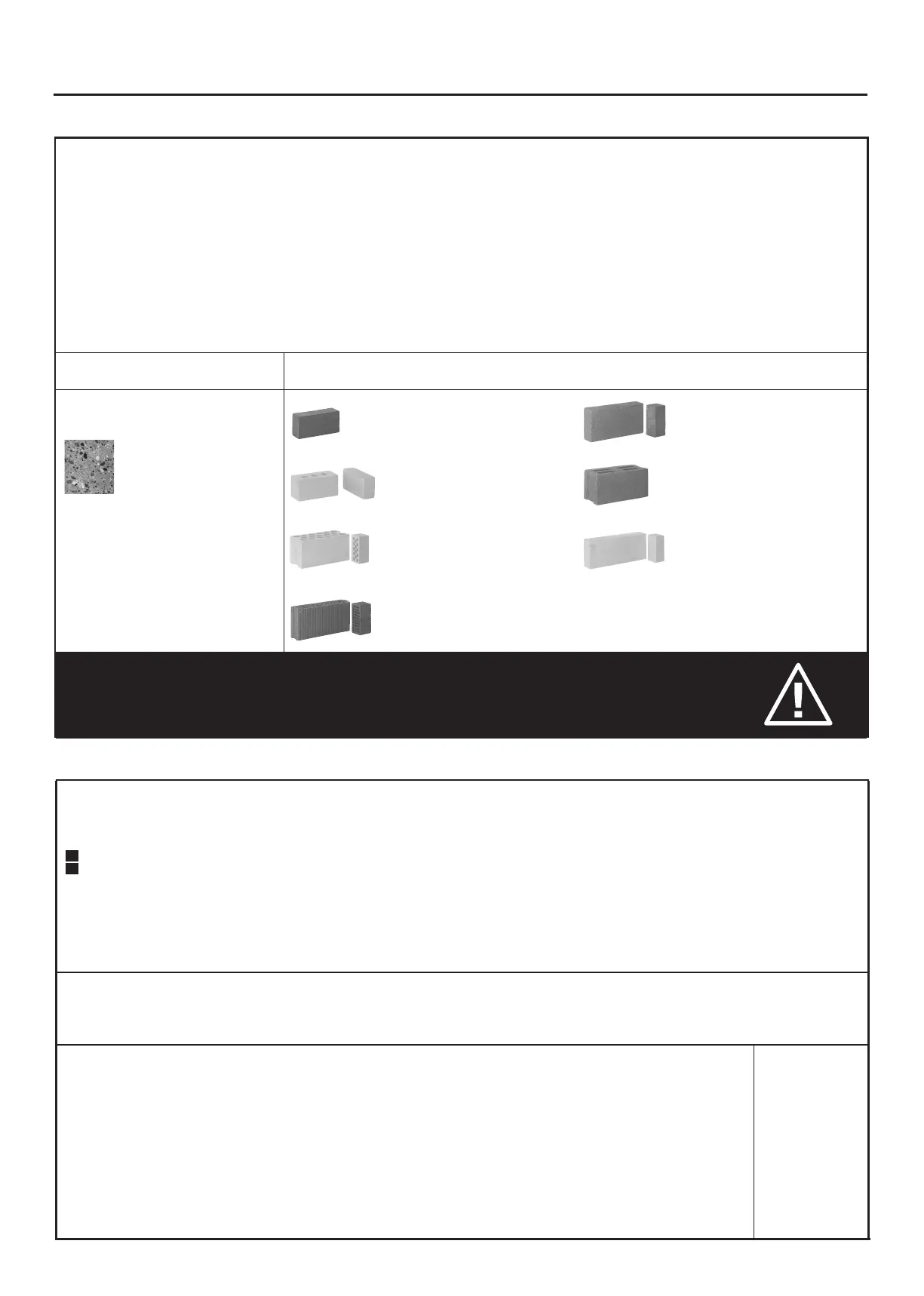

Materials table
with a description of which sets are to be used with the following types of walls:
Example of order:
• Add up number of support boards for all existing unit types
• Divide the sum by “3”
• Round up the result to a full number
= Number of assembly mortar sets required
Important notes
-
M2
