Operation: body
Ramp planks
5
General
The ramp planks are made of aluminium
and designed to suit the trailer type. The
chequered surface increases safety.
The max. load bearing capacity
of the ramp planks and the max.
permissible drive-up angle must
not be exceeded!
WARNING
Overloading ramp planks
The ramp planks may become
deformed.
The vehicle may fall down / tip
over - risk of crushing / striking!
Observe the nameplate with max. load
specifications.
Comply with the maximum values.

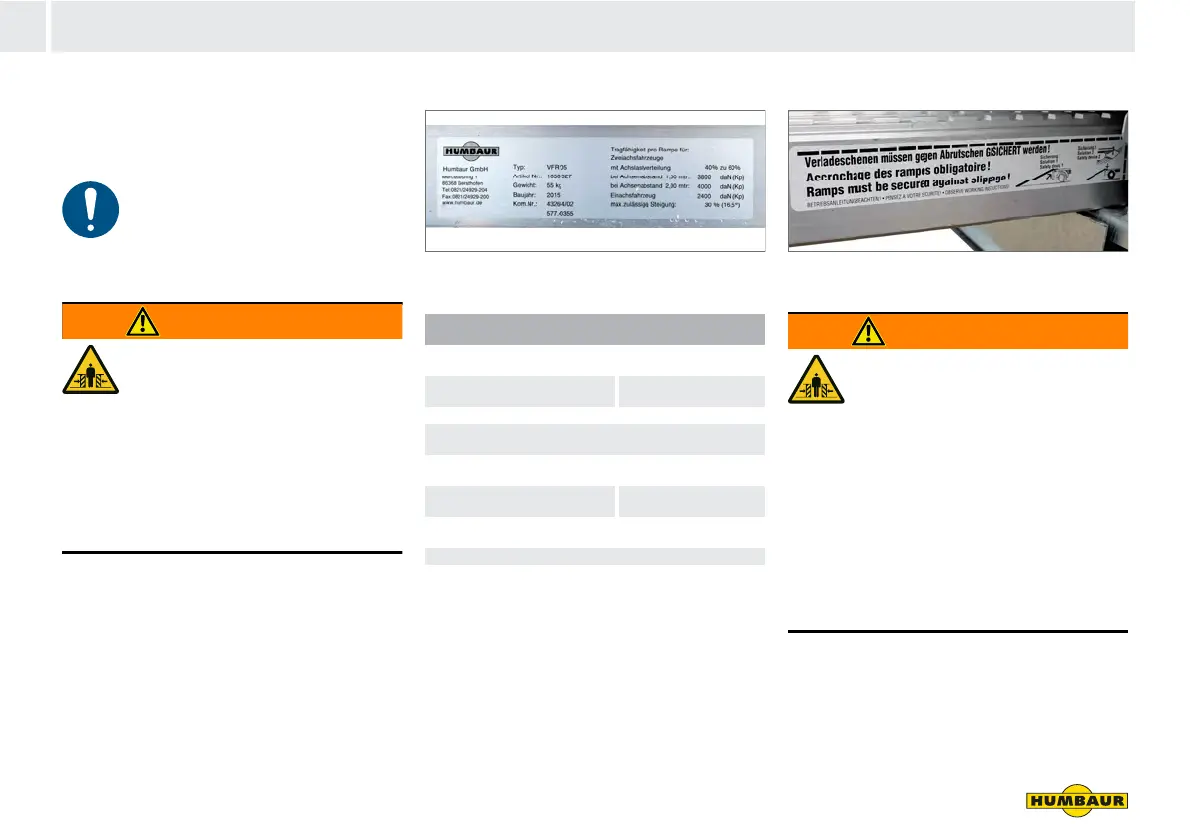

Fig. 2 Ramp plank nameplate Fig. 3 Warning label
WARNING
Driving on unsecured ramp
planks
The ramp planks may slip off the
loading platform edge.
The vehicle may fall down / tip
over - risk of crushing / striking!
Check before driving on the ramp
planks that they are secured against
slipping off.
Refer to the warning sticker on the
ramp planks.
Max. values / load bearing capacity
Drive-up angle max. 30 % (16.5°)
Single-axle vehicles 2400 daN (Kp)
Double-axle vehicles:
Axle load distribution 40 % to 60 %
Wheelbase 1.5 m 3800 daN (Kp)
Wheelbase 2.0 m 4000 daN (Kp)
