Operation
Coupling
3

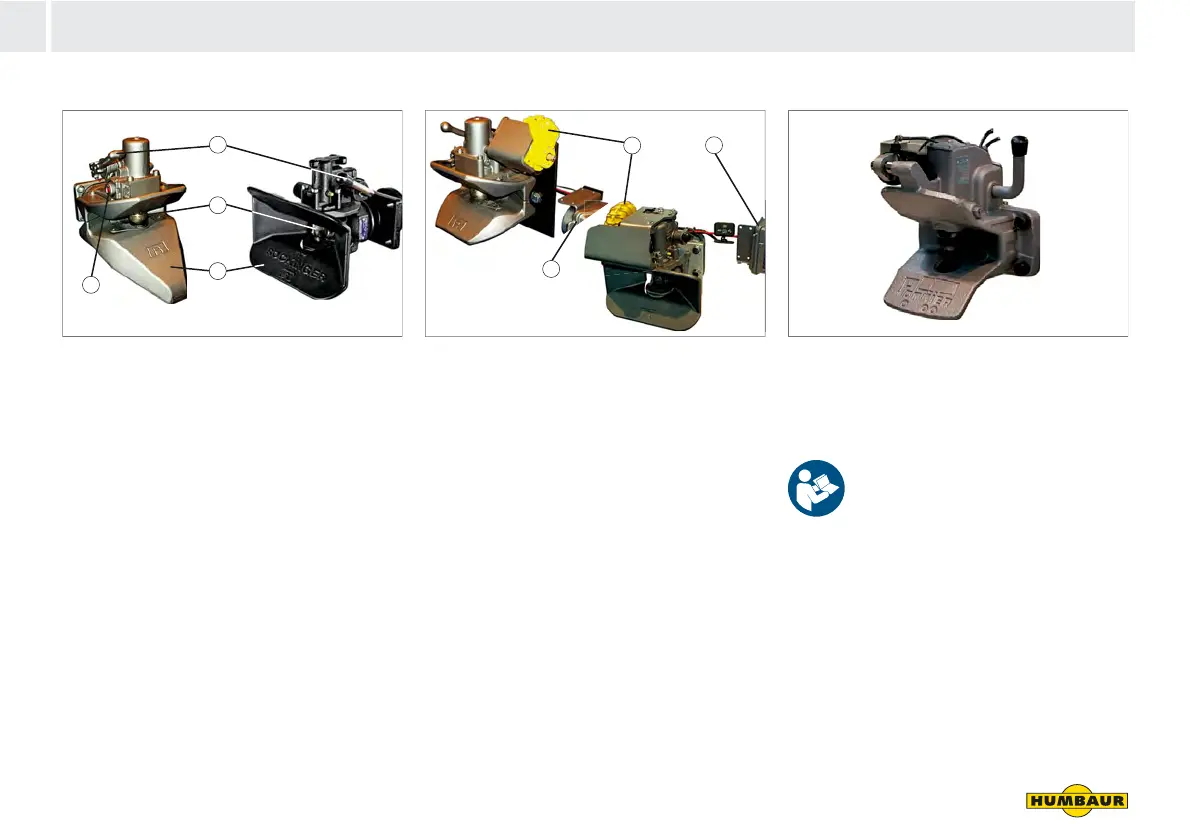

Available versions of Pin couplings
Fig. 30 Manual
1 Operating lever
2 Pin
3 Catcher
4 Control display
The pin is operated purely manually
using the operating lever.
The safety monitoring of the condition
can be seen on the position of the
operating lever and the control display.
Fig. 31 Electrical
5 Electric motor
6 Control system
In addition, the state of the coupling
(open/closed) is displayed in the driver's
cab of the towing vehicle by a pneumatic
or electrical remote indication.
Fig. 32 Pneumatic
You will find information on using
the pin coupling in the
manufacturer's operating
instructions.
