Operation: chassis
95
Support equipment on the drawbar
1
2
3
4
5
6
7
8

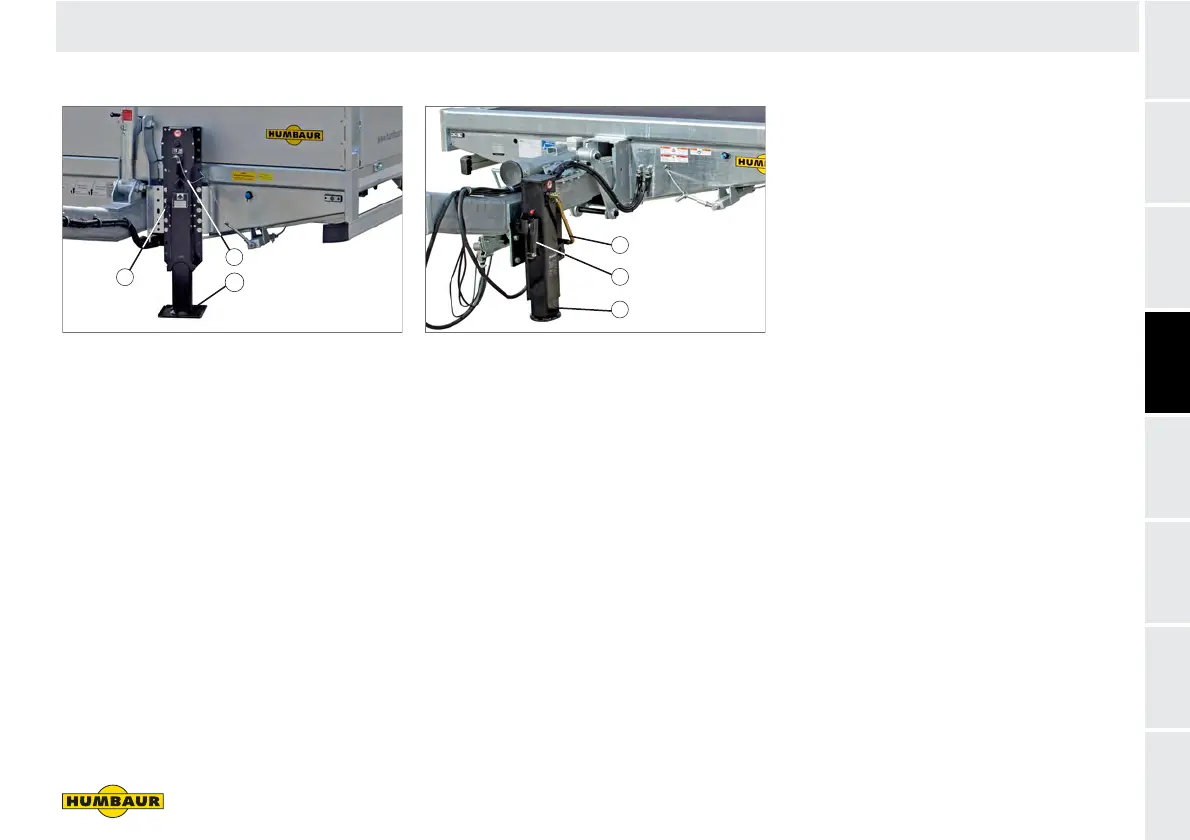

Fig. 44 Geared support winch
1 Hand crank
2 Support foot
3 Securing cable
The geared support winch is
permanently mounted at the front on the
chassis.
The support foot is cranked up in the
drive position.
Fig. 45 Swivel support
1 Hand crank
2 Locking lever
3 Support foot
The swivel support is mounted roughly
centrally on the drawbar.
The swivel support is mounted on trailers
with through-load facilities.
The swivel support is swivelled in the
drive position into the horizontal.
2
1
F - 032
3
F - 033
2
1
3
