Tail light with peripheral light
1
2
3
4
5
6
7
8
Tail light with peripheral light 24 V
The rear multi-functional light are
equipped with a peripheral light.
The multi-functional tail light is equipped
with the following functions:
– Fog light
– Reversing light
– Tail lights with reflectors
– Brake light
– Indicator
The peripheral light labels the vehicle
with the following colours:
– Red, to the rear
– Orange, side
– White, forwards
The lighting system can optionally be
converted at the factory to operate
at 12 V.

WARNING
Non-functioning tail lights
The road users cannot correctly gauge/
identify the vehicle - risk of injury!
 Check that the tail and peripheral
lights are secured before departing.

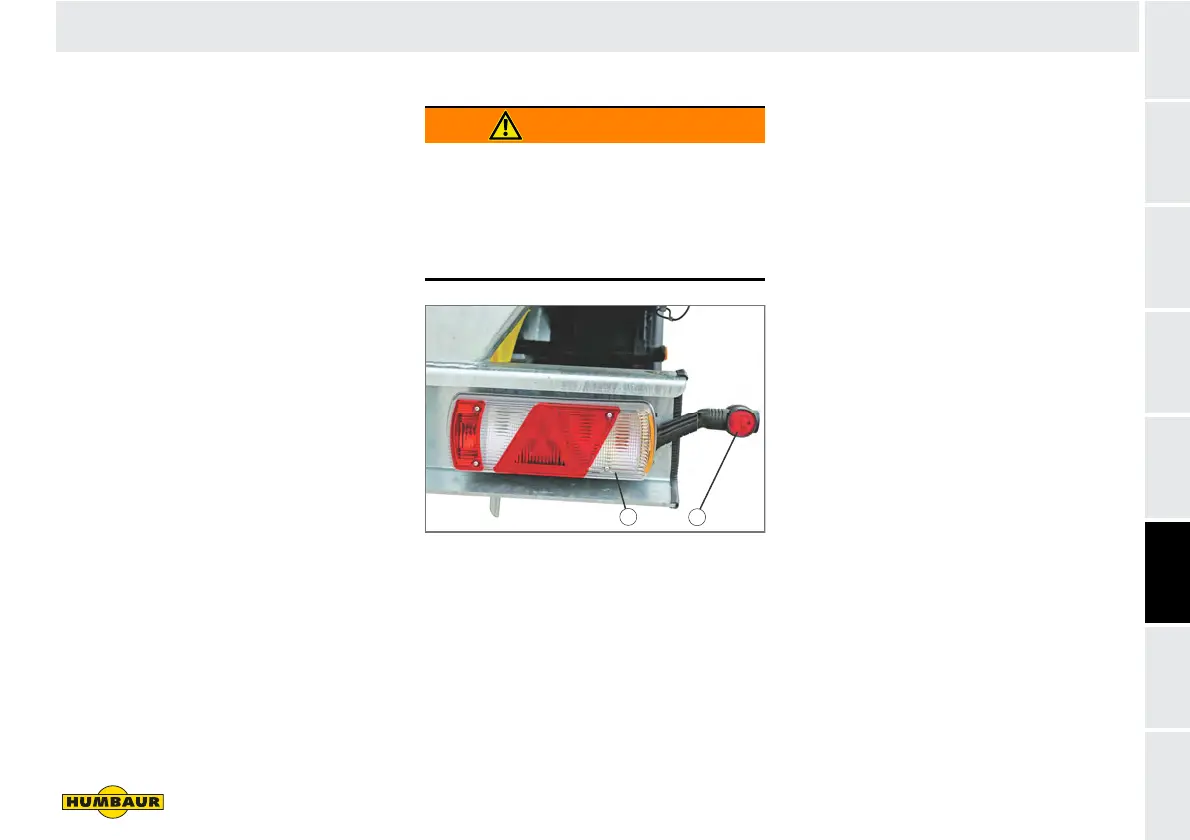

Fig. 19 Rear lighting 24 V
1 Tail light complete with:
Fog light,
Reversing light,
Tail lights with reflectors,
Brake light,
Indicator
2 Peripheral light
E - 016
