10. MANUAL CONTROL

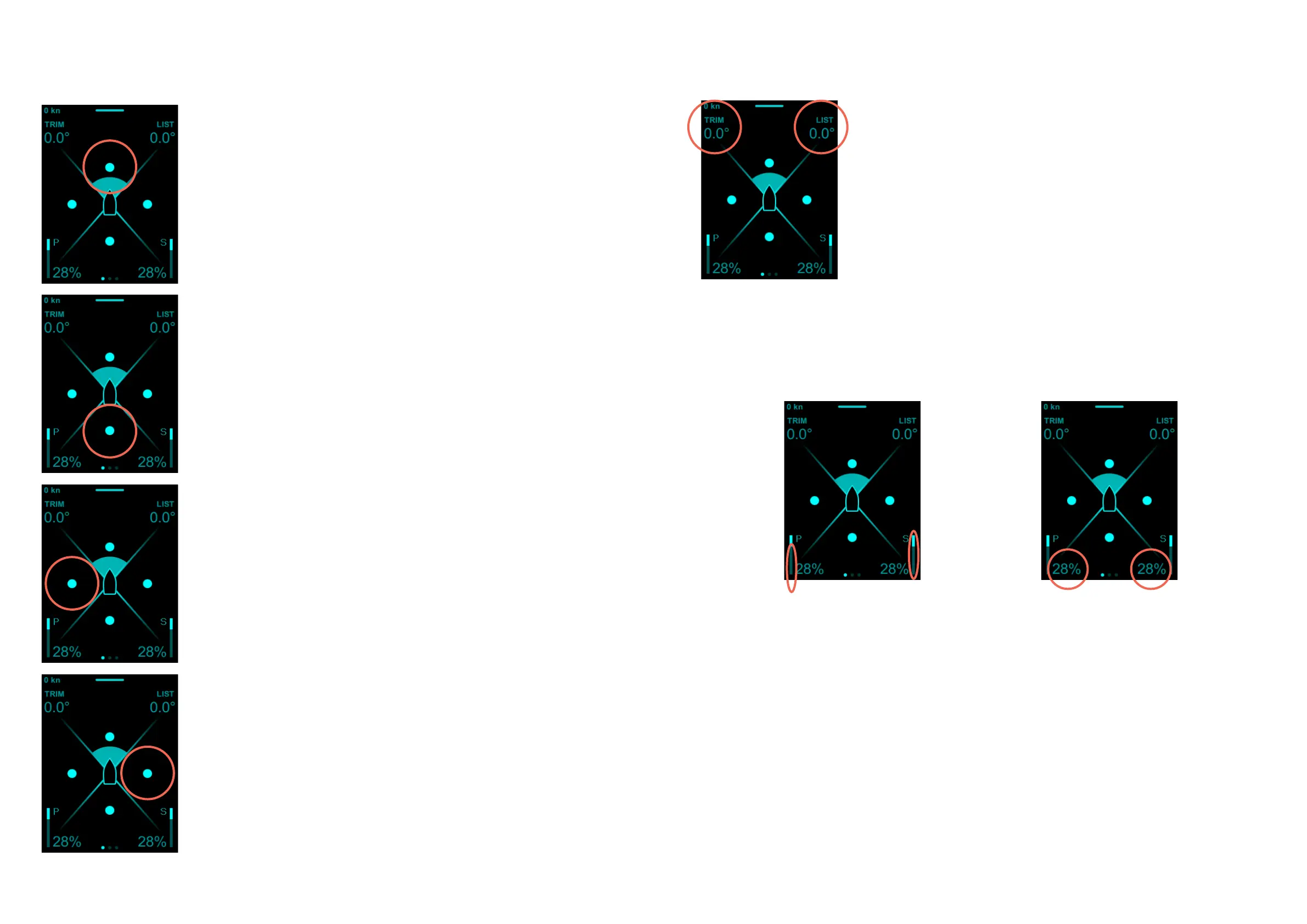

INTERCEPTOR DEPLOYMENT INDICATORS
Trim/list angle
The trim/list angle indicators show the current boat trim
and list angles.
If the list indicator is not close to 0.0º angle when the boat
is floating at even keel at zero speed. That means that the
list angle need to be reset.
The current interceptor
position is shown as
a percentage of the
maximum.
The bars visualizes the
current interceptor position.
Clarification list angle
+7.0º means that the boat is heeling 7 degrees to starboard.
-7.0º means that the boat is heeling 7 degrees to port.
10. MANUAL CONTROL
Bow up
List to starboard
List to port
Bow down
Both starboard and port interceptors deploy
simultaneously and the bow of the vessel trims down.
Tap and hold until desired trim is reached.
Both port and starboard interceptors retract
simultaneously and the bow of the vessel trims up.
Tap and hold until desired trim is reached.
Use to level the boat sideways.
Port side interceptors retract, starboard interceptors
deploy, to make the boat list to port.
Tap and hold until desired list is reached..
Starboard side interceptors retract, port side
interceptors deploy, to make the boat list to starboard.
Tap and hold until desired list is reached.
