GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Installing the Bulbs and Glass
ON
Turn Power
Install a bulb into each
of the sockets. When
necessary, replace with
bulbs of same wattage.
To install the shade, rst loosen
the thumb screws. Raise the
shade to the light xture. Tighten
all thumbscrews securely.
Repeat x3Repeat x3
Repeat x3
Need a little more help with assembling this light?
Visit our light kit video at: http://bit.ly/HunterQuickConnect
Some components not shown for visual clarity.

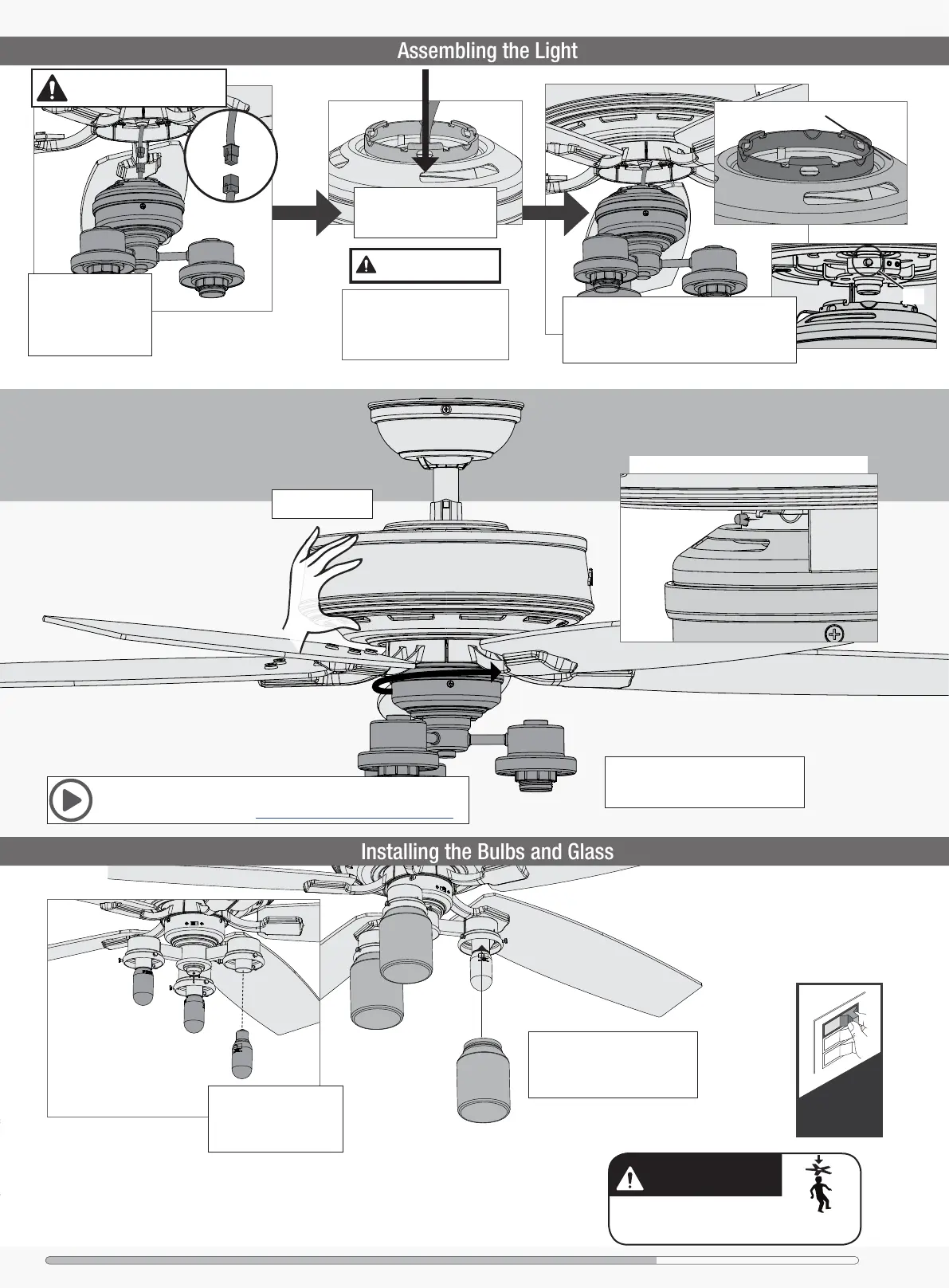

Hold the fan body stationary and rotate
the light xture clockwise to engage the
locking pin.
Notch
IMPORTANT
Push the connector and
excess wire into the hole at
the top of the light xture.
The connector and excess wiring
must be pushed into the light
xture in order to successfully
mount the light xture to the fan.
Pin
Raise the light kit to the bottom of the fan.
Align the notch on the mounting ring on the
top of the light kit with the pin in the mounting
bracket on the bottom of the fan.
Connect the plugs from
the fan and light xture.
Make sure to line up
the colored markings
on the connectors.
Remove the cardboard plug
guard before proceeding!
HOLD HERE
Repeat x5
Blade Arm Screw
To Next Page
