ACC2 STRONGBOX PEDESTAL ASSEMBLY INSTRUCTIONS
Assembly
Installing the inner panel assembly

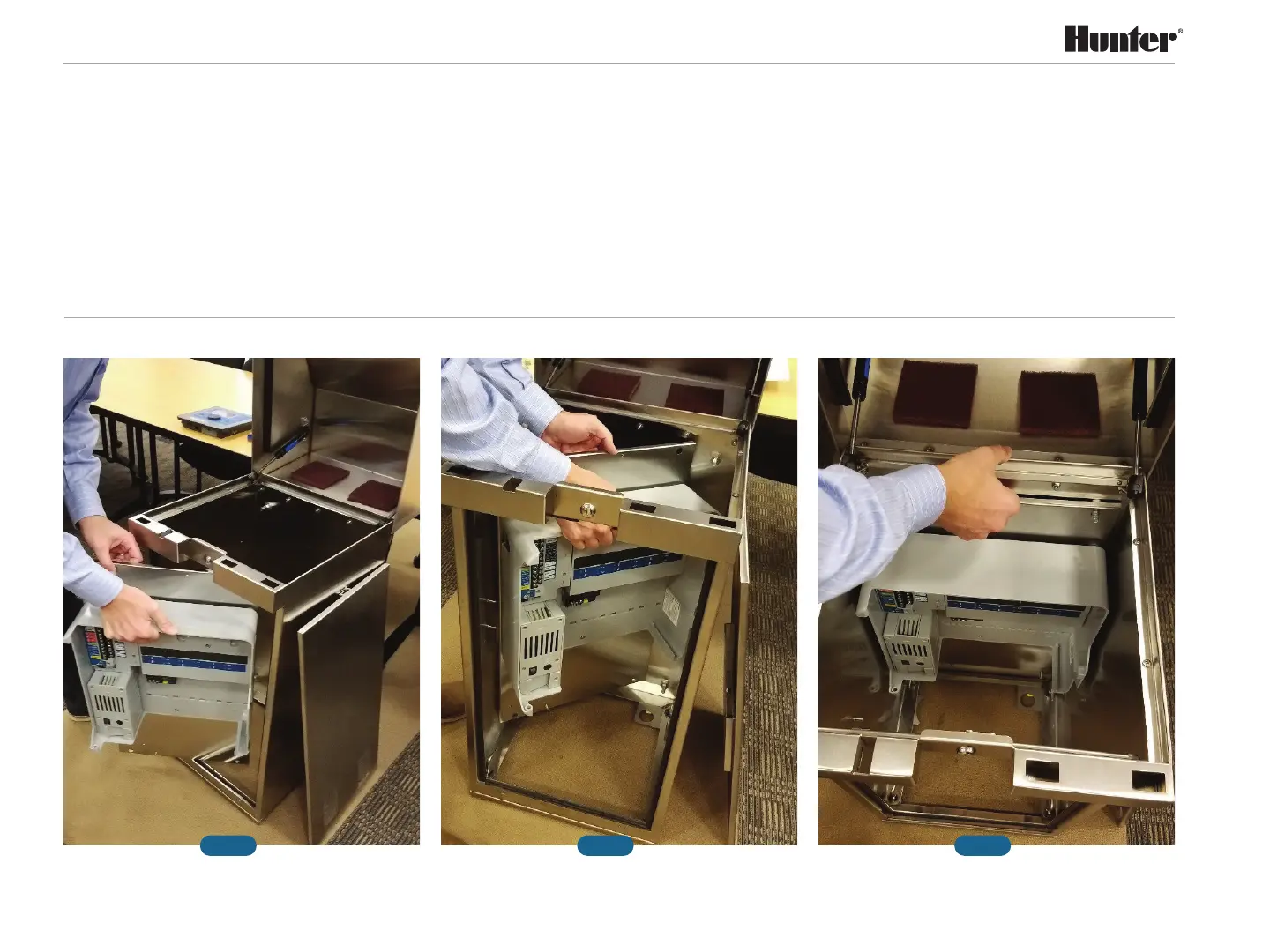

Step 1: Install through the front opening with
the right side angled in rst, as shown (Fig. 1).
Step 2: Once inside, rotate Inner panel
assembly so that it’s ush with the back wall.
Be patient, there are many areas where the
panel can get hung up, but it does t in (Fig.
2).
Step. 3: Hang the inner panel assembly on the
four studs on the back wall. Reinstall the four
sets of hardware using a 14 mm socket: at
washer, hex nut (Fig. 3).
Fig. 1 Fig. 2 Fig. 3
