Hunter Builder Deluxe - Light Fixture and Glass Installation; Assembling Light Kit and Globe

7
8
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Canopy Screw
WARNING
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Installing the Bulbs and Glass
ON
Turn Power
Press the globe and globe
keeper ush against the metal
plate. Thread the light pull chain
through the hole in the center of
the nial cap and thread the fan
pull chain through the hole in the
side of the cap. Finally, thread
only the light pull chain through
the hole in the nial and screw
the nial onto the threaded rod.
Install the included LED
bulbs into the sockets.
When necessary, replace
with bulbs of same wattage.
Repeat x2
Fan style may vary.
Note:
Screw light kit screws from the
hardware bag halfway into
the motor housing. It does not
matter which two screw holes
you choose.
Connect the plugs from the upper and
lower switch housings. Make sure to line
up the colored markings on the connectors.
Partially install two of the light kit screws
found in the hardware bag. Align the
notches in the sides of the lower switch
housing with the screws on the upper
switch housing. Twist the lower switch
housing clockwise to lock into place.
Install the last light kit screw. Tighten all
three screws securely.
Feed the wire plug through the center
hole of the upper switch housing,
then wrap keyhole slots around the
screws and twist counterclockwise.
Insert a third screw, found in the
hardware bag, into place and
then tighten all three screws.
1 of 6
Light Kit Screw
bag
2 of 6
Light Kit Screw
bag
1
STEP
4
STEP
2
STEP
3
STEP

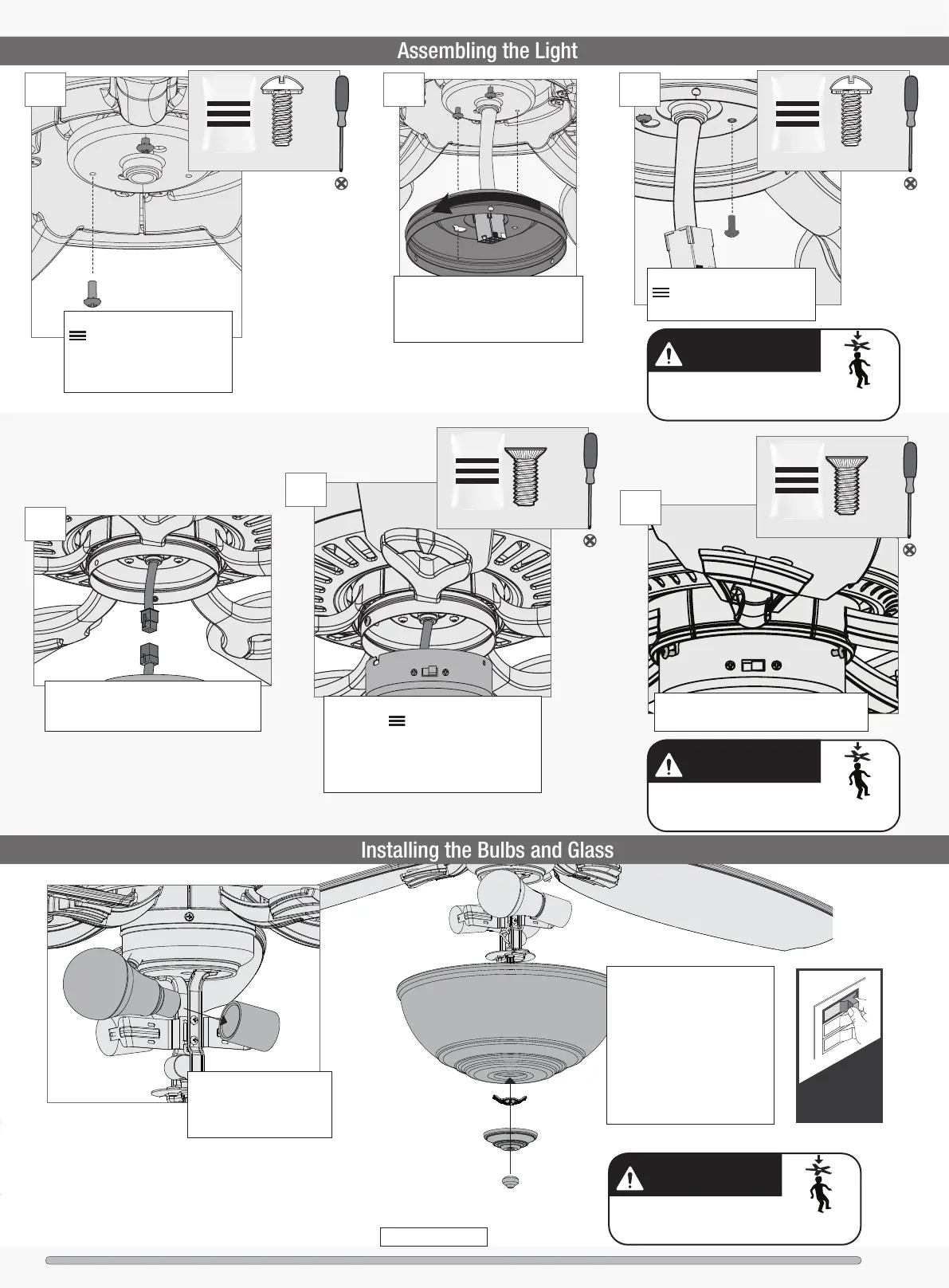

Assembling the Light
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure
the upper switch housing to the mounting plate.
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure the
lower switch housing to the upper switch housing
2 of 6
Light Kit Screw
bag
5
STEP
1 of 6
Light Kit Screw
bag
6
STEP
