Ceiling Bracket Hanging FanDownrod Wiring Blades Wall Control

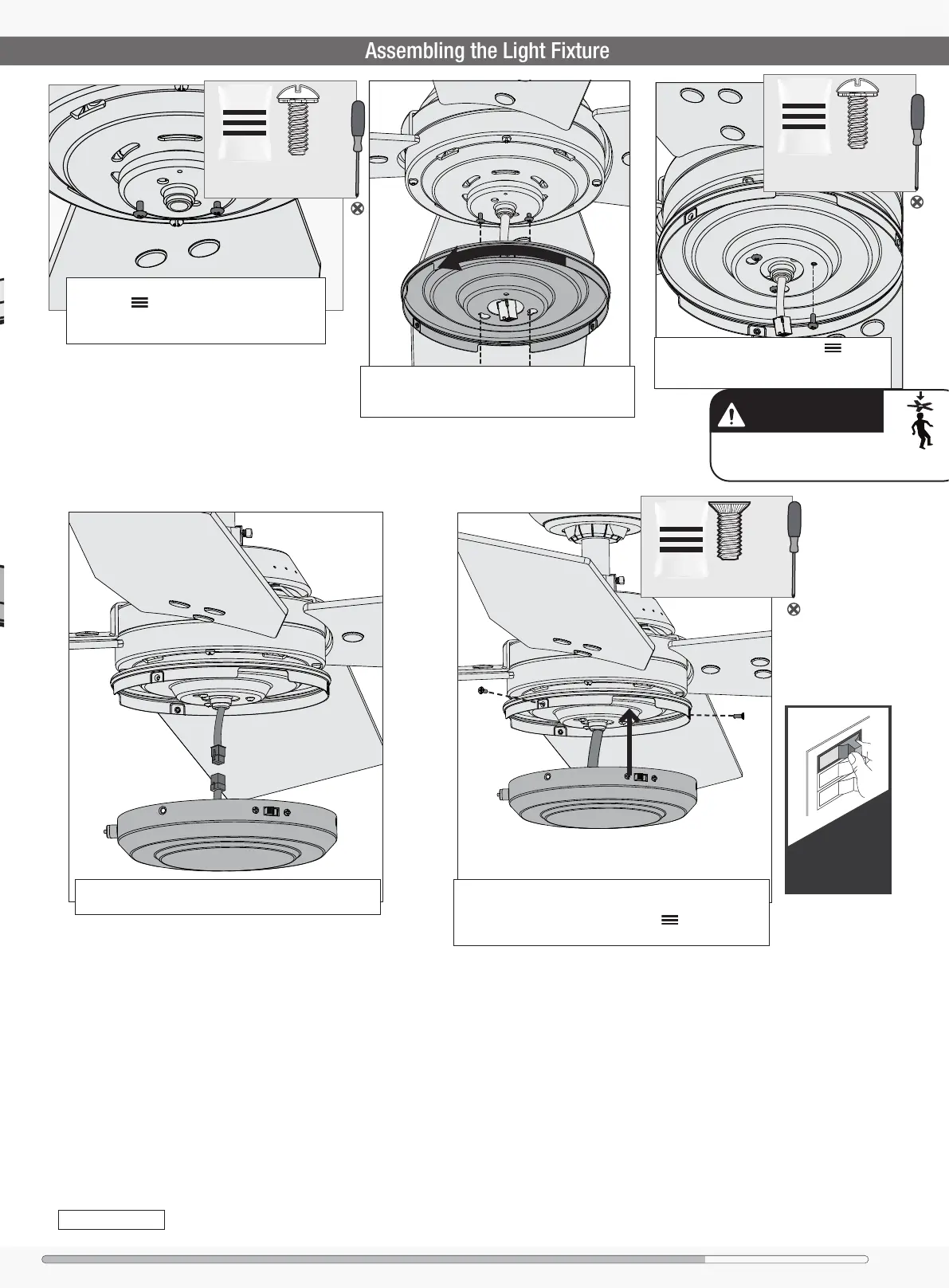

Assembling the Light Fixture
Align the keyhole
slots in the top
of the light kit
assembly with the
partially installed
assembly screws.
Wrap the keyhole
slots around the
screws and twist
counterclockwise.
Partially install two upper switch housing screws,
found in the
hardware bag, halfway into the
motor housing as shown. It does not matter which
two screw holes you choose.
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure
the trim ring to the mounting plate.
2 of 3
Upper Switch
Housing Screw
bag
Insert the third screw, found in the
hardware bag, into place and then tighten all
three screws.
Feed the wire plug through the center hole of the upper
switch housing, then wrap keyhole slots around the
screws and twist counterclockwise.
3 of 3
Switch Housing
Screw
bag
Connect the plugs from the upper and lower switch housings.
Make sure to line up the colored markings on the connectors.
Lift the lower switch housing until its screw holes are aligned
with the screw holes in the upper switch housing. Install the
three switch housing screws, found in the hardware bag.
Tighten all three screws.
ON
Turn Power
Fan style may vary.
Note:
1 of 3
Upper Switch
Housing Screw
bag
