Installing the Bulbs and Glass
ON
Turn Power
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Glass Wall Control

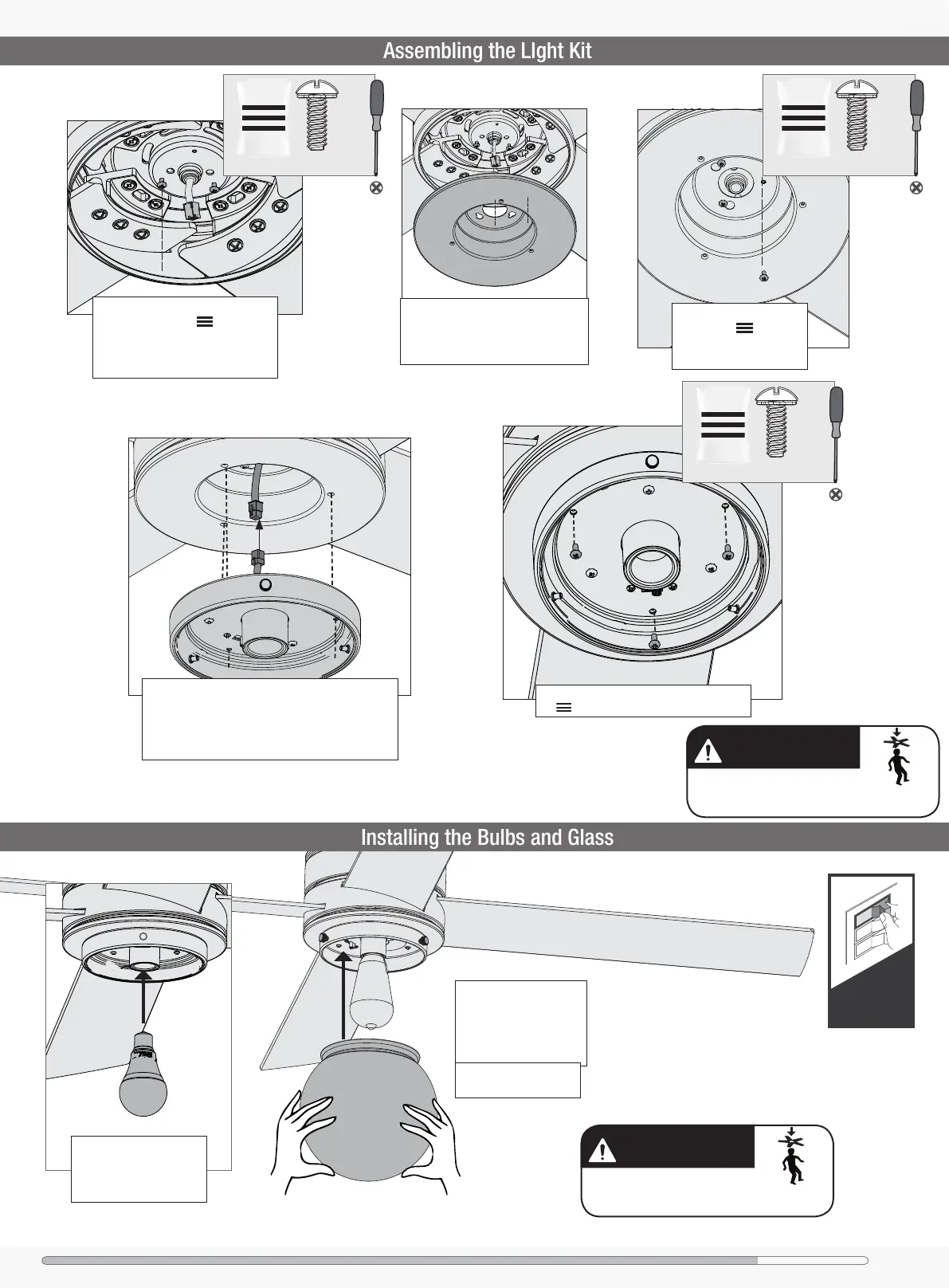

Install the included LED
bulb into the socket. When
necessary, replace with
bulb of same wattage.
Lift the glass and attach
it to the light xture using
the three thumbscrews.
Tighten all three screws
securely by hand.
NOTE: Check to ensure
proper engagement.
Partially install two light kit assembly
screws, found in the hardware
bag, halfway into the motor housing
as shown. It does not matter which
two screw holes you choose.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
2 of 6
Light Kit Screw
bag
Install the three switch housing screws, found in
the hardware bag. Tighten all three screws.
3 of 6
Light Kit Screw
bag
Connect the plugs from the upper and lower
switch housings. Make sure to line up the colored
markings on the connectors. Lift the lower switch
housing until its screw holes are aligned with the
screw holes in the upper switch housing.
Feed the wire plug through the center
hole of the upper switch housing,
then wrap keyhole slots around the
screws and twist counterclockwise.
Insert the third screw,
found in the hardware
bag, into place and then
tighten all three screws.
1 of 6
Light Kit Screw
bag
To Next Page
