10. When finished adjusting, tighten jam nut to rod end and verify operation.

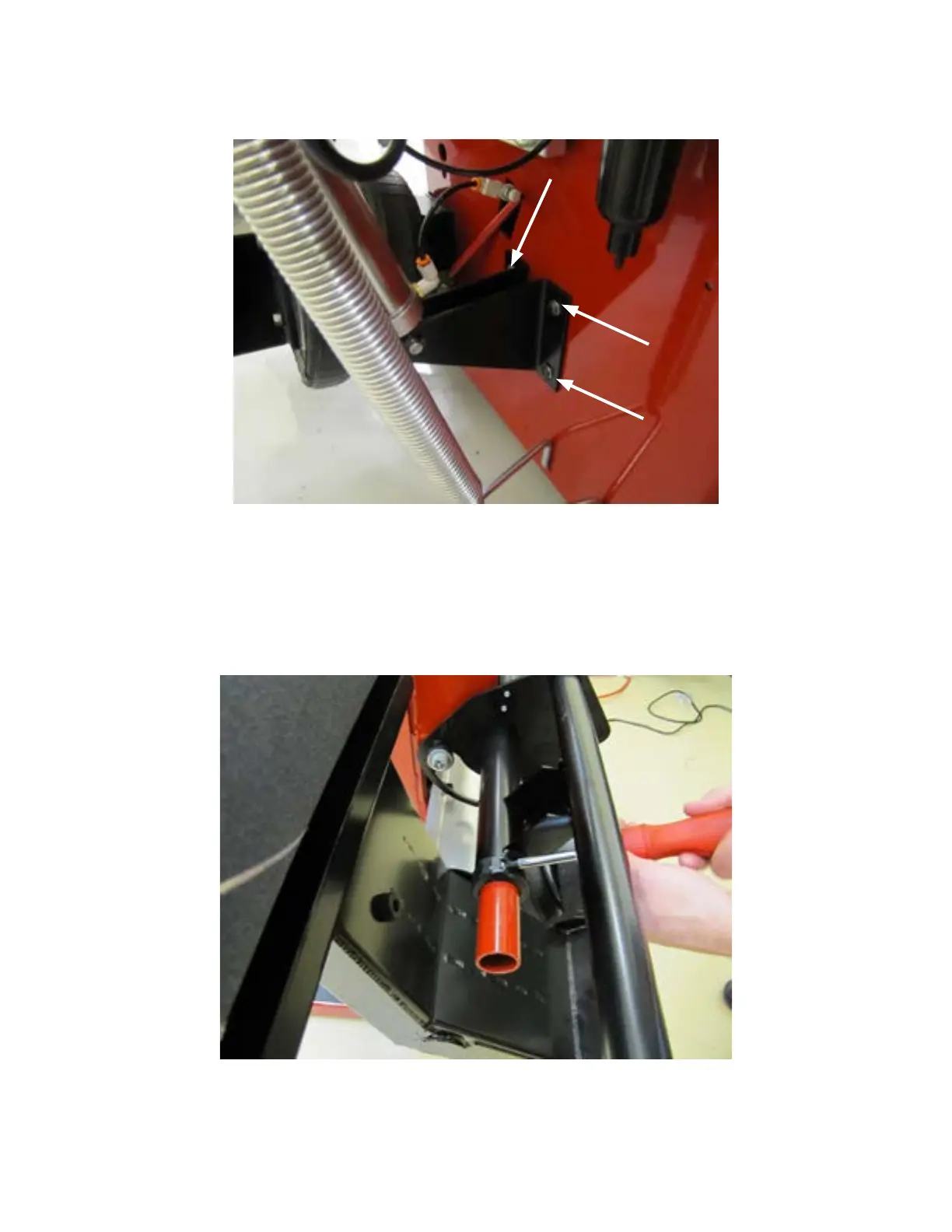

11. If more adjustment is required, the two mounting brackets that attach the cylinder to the back of the tub can
be raised or lowered by loosening the four bolts connecting the brackets to the balancer tub.
Figure 44
12. Verify that the plastic bushings on each end of the safety hood shaft are flush. If they are not flush, a rubber
mallet may be needed to adjust the bushings.
13. Loosen the two #10-32 X .63 inch round head machine screws connecting the two halves of the hood tube
clamp, 12-157-2. Slide the hood tube clamp onto the shaft. Rotate the clamp so that the screws are located
on top and bottom (6 o’clock and 12 o’clock positions) and then tighten the two screws.
Figure 45
