8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
8-11. To uninstall the light fixture, first disconnect the plug connectors
between the black wire and the black/white wire.
8-12. Disconnect the plug connectors between the two white
wires.
8-13. Uninstall the nut and washer from the end of the light
fixture inside the lower switch housing.
8-14. Unscrew the threaded rod of the light fixture from the
lower switch housing.
8-15. Remove the light fixture from the lower switch housing
pulling disconnected wires through the hole in the
center of the lower switch housing.
Note: When removing the wires, pull the thin plug
connector (male) through first, and then pull the other
plug connector (female) through the hole.
8-16. Install the dummy terminals (included in the sack parts)
on the two disconnected wires in the lower switch
housing.
8-17. Install the switch housing cap and plug button to the
lower switch housing.
8-18. Once you have uninstalled the light fixture, continue
with step 8-6.

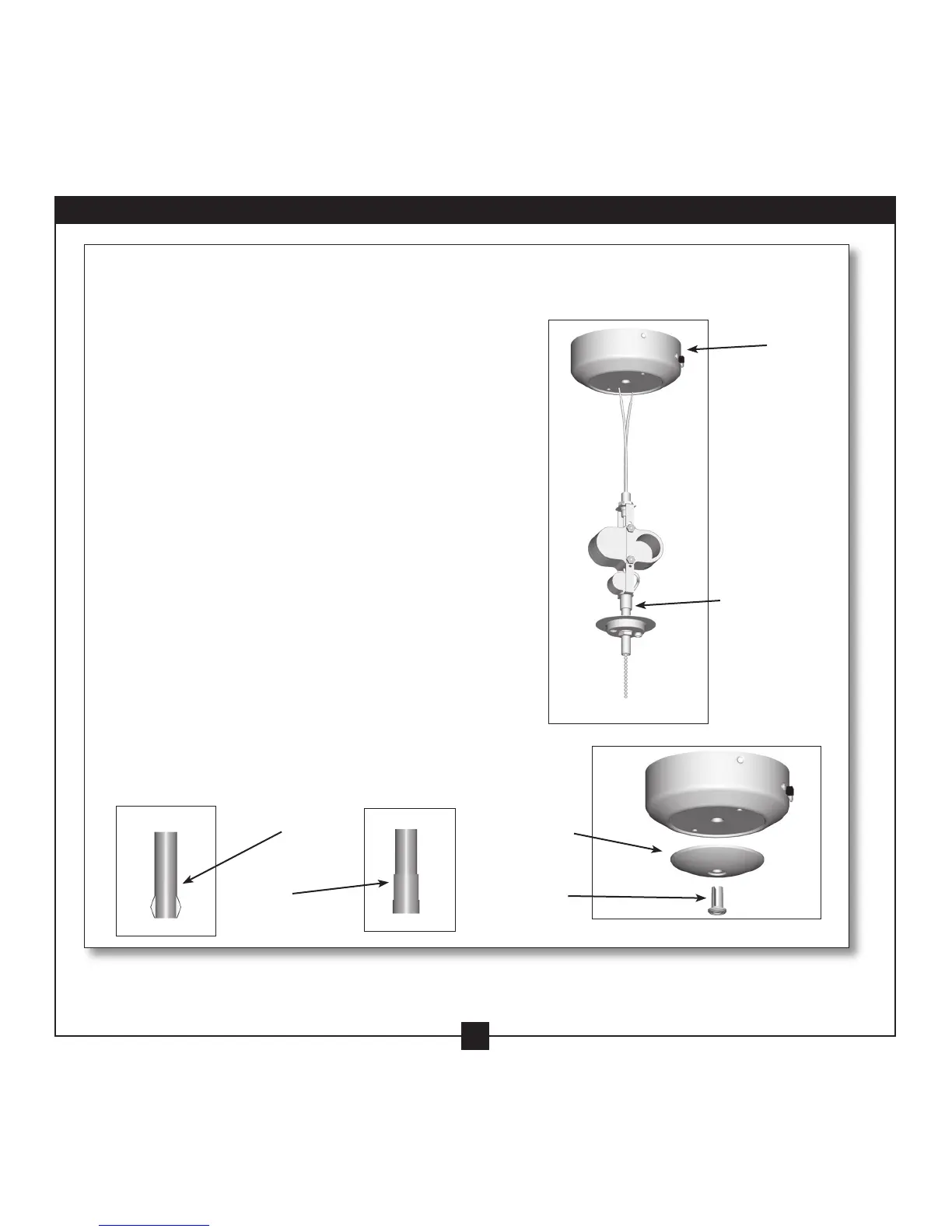

Lower Switch
Housing
readed Rod
Steps 8-13 – 8-15
Male Dummy
Terminal
Female Dummy
Terminal
Step 8-17
Cap
Plug Button
To Next Page
