6
42756-01 • 06/26/07 • Hunter Fan Company

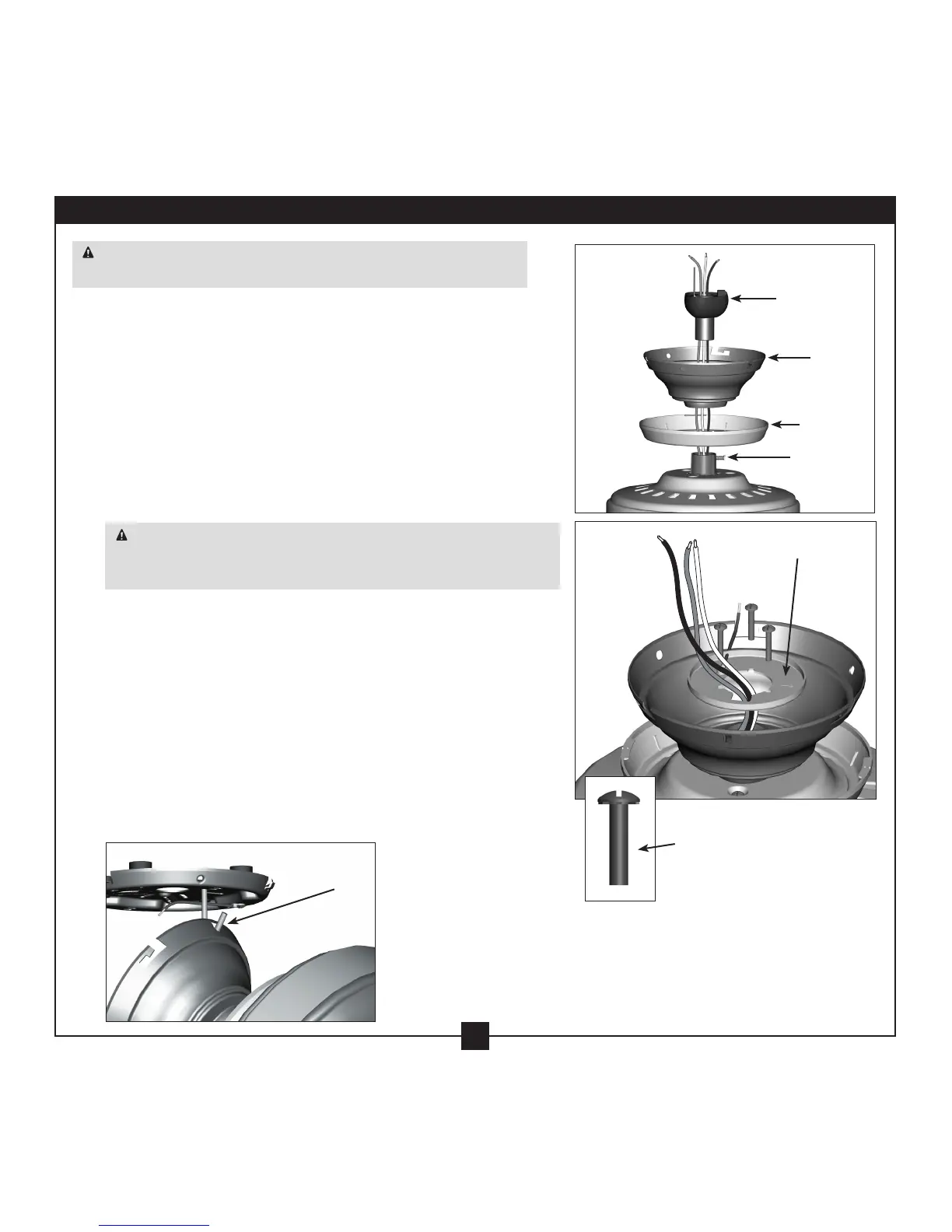

Steps 3-5 – 3-6
Low Profile Screw
Low Profile Washer
Steps 3-2 – 3-3
Downrod
Canopy
Canopy
Trim Ring
Set Screw
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
For Standard or Angle mounting:
3-2. To assemble fan to hang down from a flat or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
Skip to Step 3-7.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
For Low Profile mounting:
Note: For low profile mounting, the downrod is replaced with the low
profile washer.
3-4. Remove the set screw from the adapter.
3-5. Place the low profile washer (lip up) into the canopy. Be sure the
green ground wire is pointing up toward the ceiling.
3-6. Align the holes in the washer with the holes in the adapter.
Assemble securely with three low profile screws.
3-7. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim.
Step 3-7
U-shaped
Hole
3 • Assembling and Hanging the Fan
