Huntron TRACKER 2700 - Page 44

5-
2
To display the tracker signature of a resistor:
1. Press the appropriate resistance range button. Select the 200mV voltage range.
2. Place or clip a test lead on the opposite ends of a resistor and observe the signature on the
Tracker 2700 LCD display. Make sure Channel A is selected.

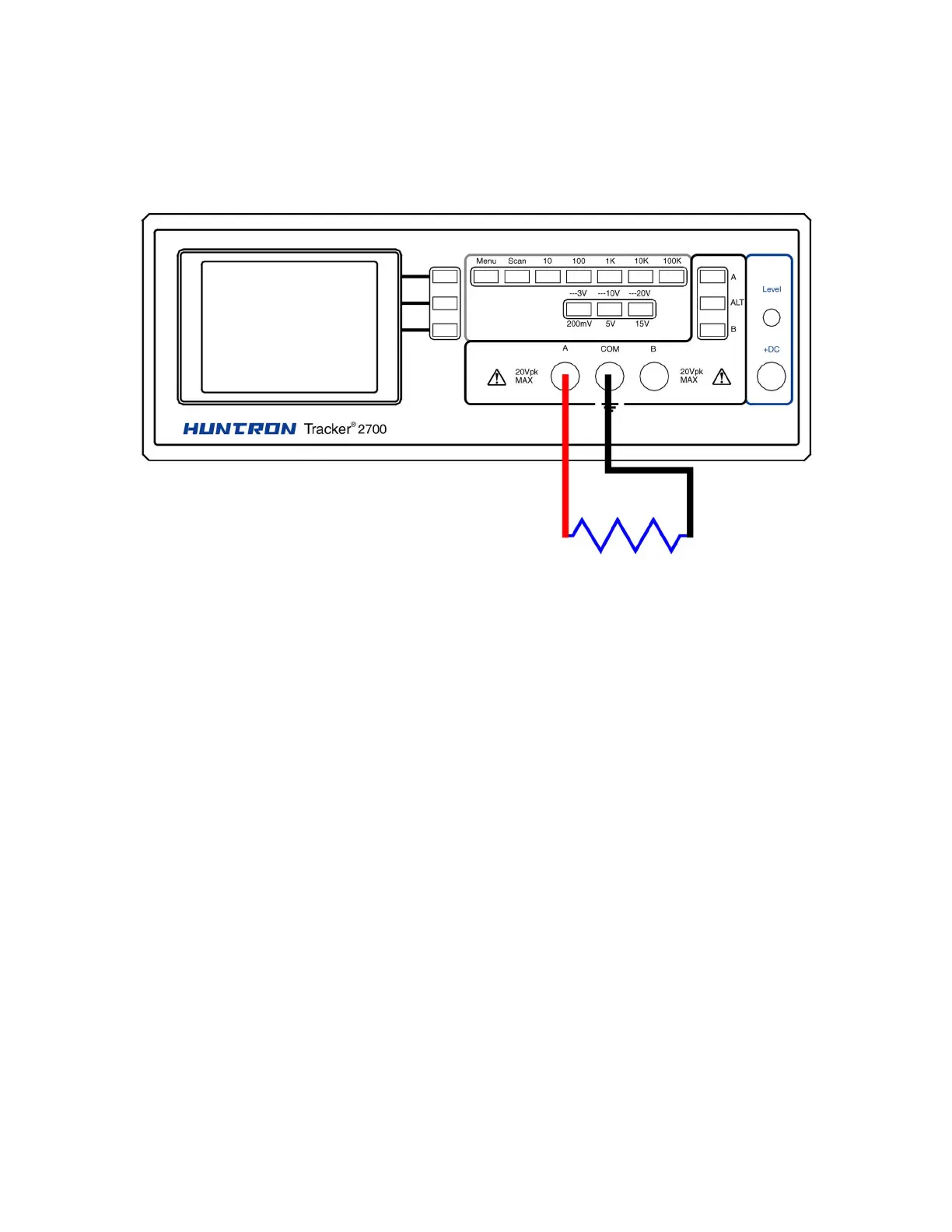

Figure 5-2. Tracker 2700 Connected to a Resistor
