5-
3

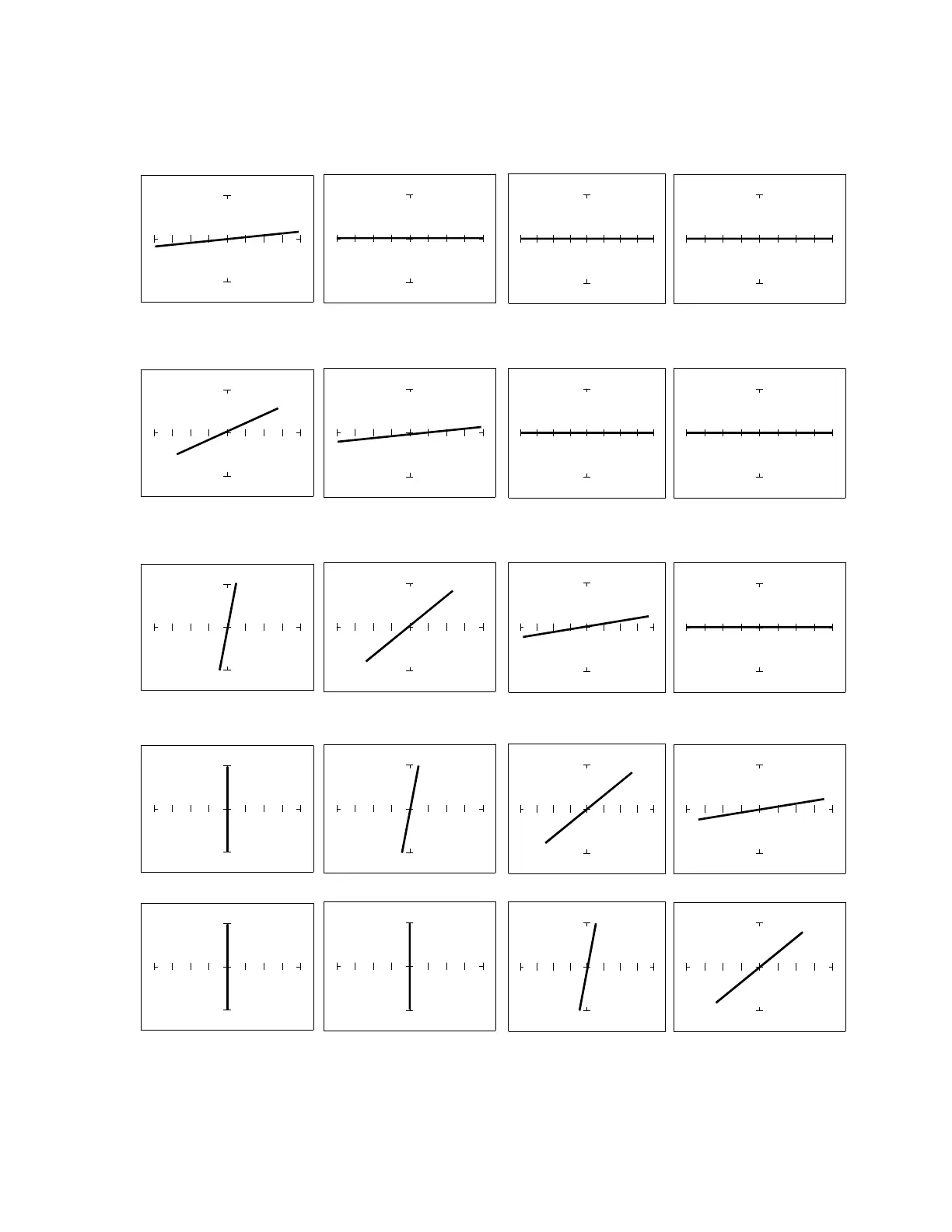

Below are four Tracker signatures of different resistors, 150Ω, 1.5kΩ, 15kΩ and 100kΩ in each of
the five Resistance ranges. Note how the slope or angle of each tracker signature changes with
each resistor’s value.
150Ω
ΩΩ
Ω 1.5kΩ
ΩΩ
Ω 15kΩ
ΩΩ
Ω 150kΩ
ΩΩ
Ω
10Ω
ΩΩ
Ω Range
100Ω
ΩΩ
Ω Range
1kΩ
ΩΩ
Ω Range
10kΩ
ΩΩ
Ω Range
100kΩ
ΩΩ
Ω Range
Understanding Resistive Signatures
