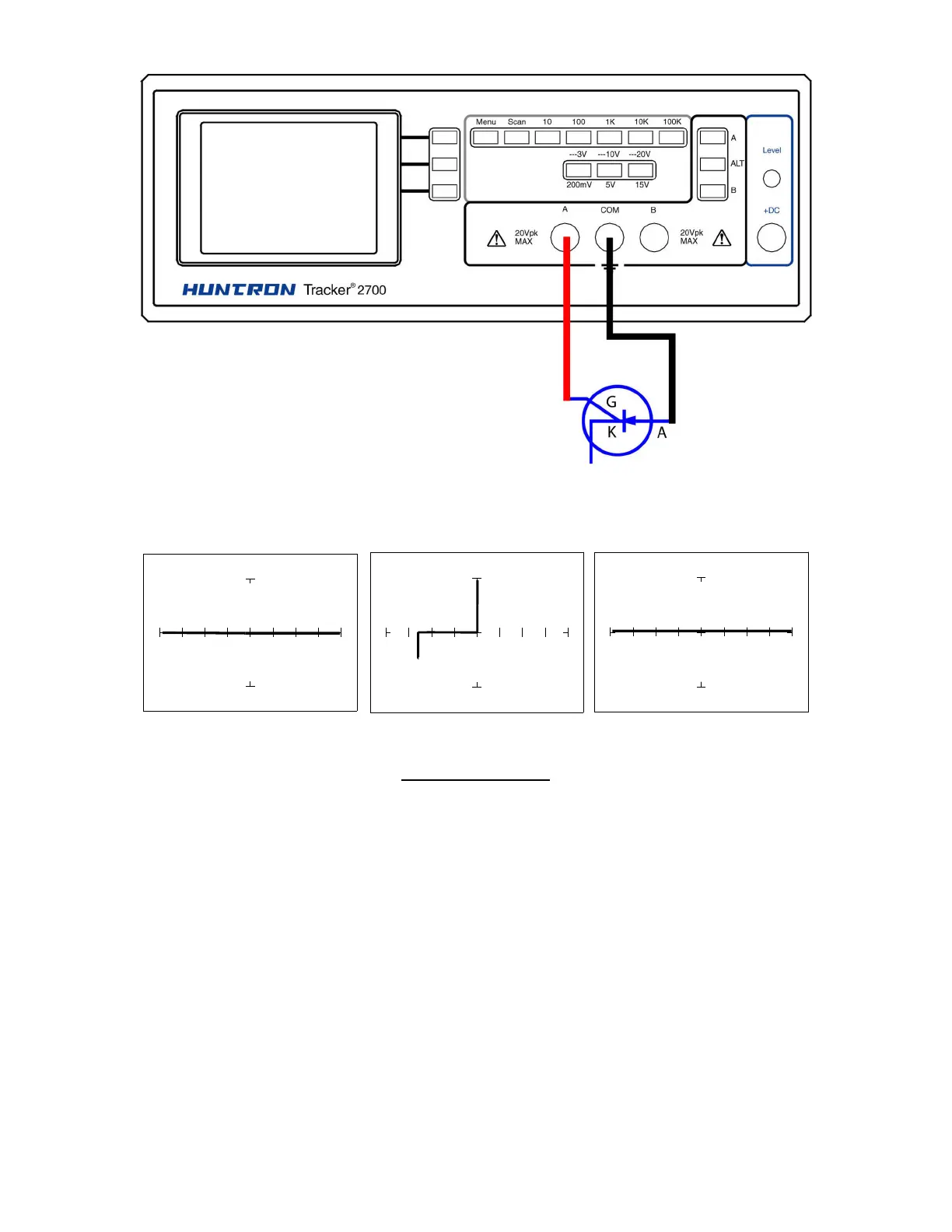

Figure 6-37. Tracker 2700 with Test Leads to a SCR
Gate-Anode Gate-Cathode Anode-Cathode
15V, 10 kΩ
ΩΩ
Ω Range.
Figure 6-38. Signatures of a SCR - C106B Type
