05

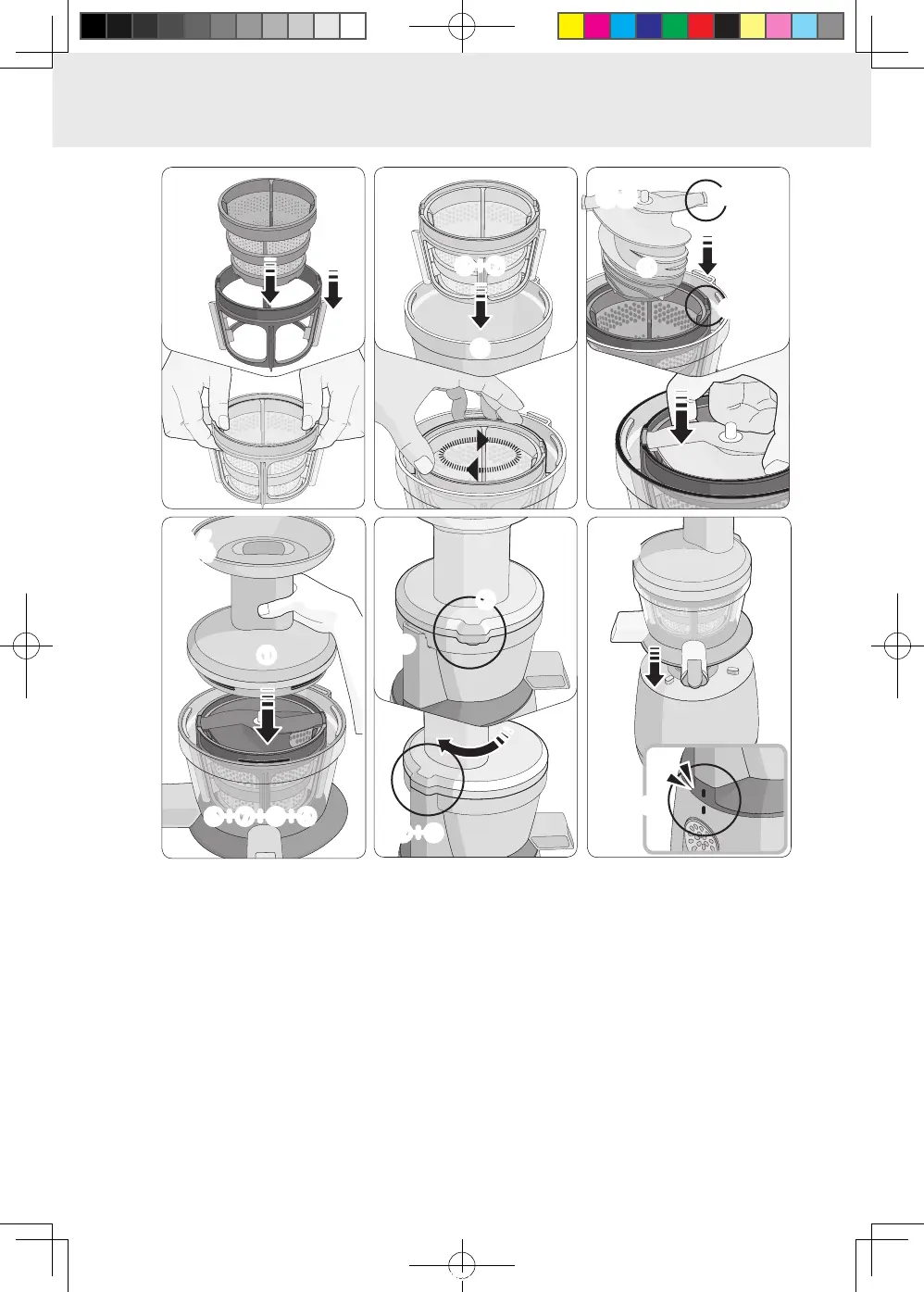

3. How to assemble
Assemble the strainer under the groove of spinning brush just like from
the picture. If they are not completely assembled, the chamber set will not be
closed.
Put the assembled part in proper place by moving left and right in the
chamber just like the picture no.1.
Assemble the squeezing screw like the picture. Put the auger by turning it to
fit in the spinning brush grooves.
After putting the hopper on the chamber, turn it clockwise until it is locked
completely.
Mount the chamber set on the body. Align the mark on the back of the body to
the mark on the chamber set for correct assembly.
01
02
03
04+05
06
⑥+⑦+⑩+④
①
⑮
②+⑮
⑯+⑱
⑩
01 02
0605
04
03
⑥
⑥+⑦
⑦
④
⑤
⑧
②
