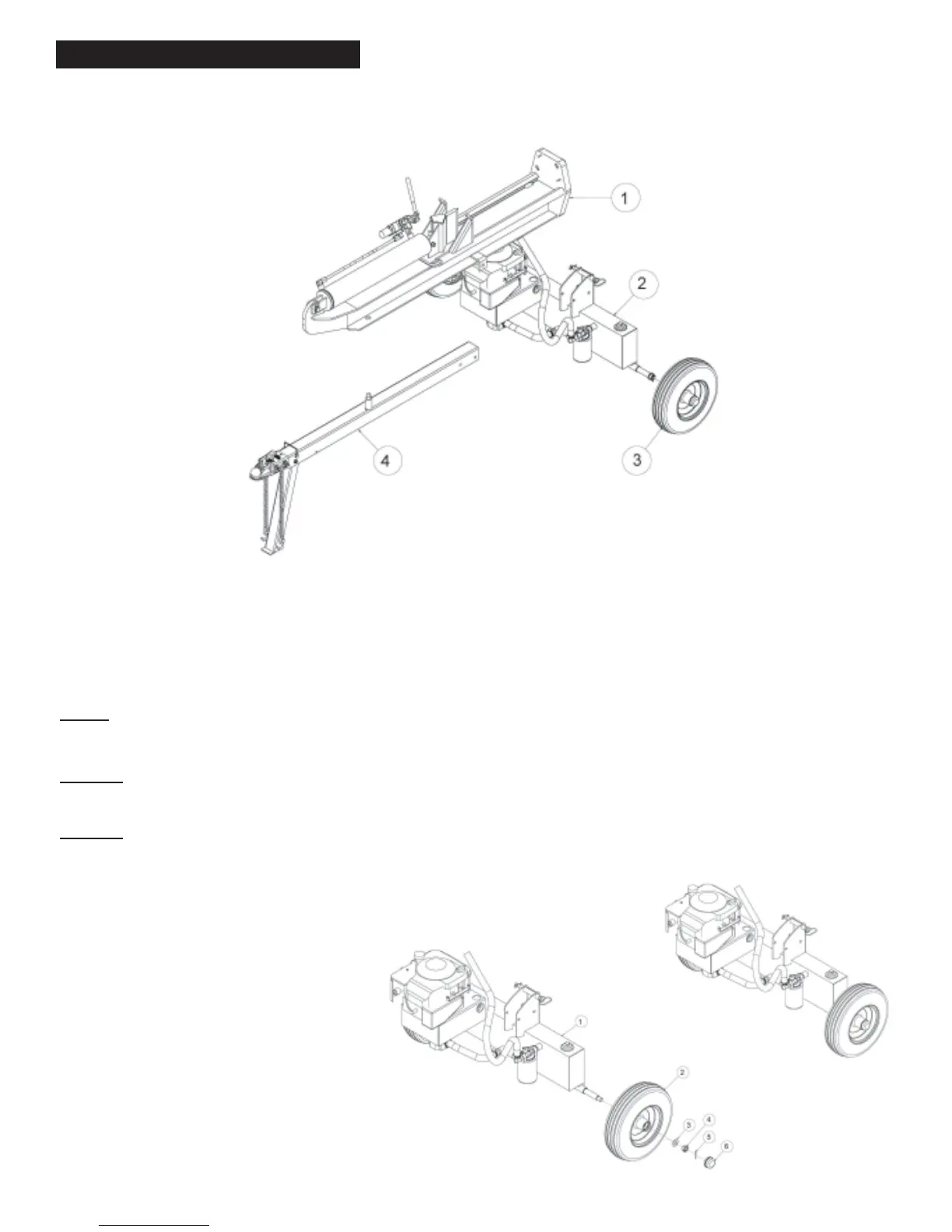

ASSEMBLY INSTRUCTIONS
NOTE: This log splitter was partially assembled at the factory. Refer to the drawing and parts list should it become
necessary to disassemble the unit for repair or replacement of parts.
Page 7
1 401613R0 Beam Assembly 1
2 401102R22 Tank/Engine Assembly 1
401102RC22 Tank/Engine Assembly (CA) 1
3 400312B0 Tire and Wheel assembly 2
4 40126300 Tongue Assembly 1
40115500 Hardware Kit 1
STEP 1: Remove all the components from the shipping container.Inspect each piece for shipping damage. If any part is
damaged, contact your dealer or delivering carrier.
STEP 2: Attach the two wheels (2) to the tank assembly (1) wheel spindles using the 3/4” light flat washers(3), 3/4” NF
slotted nuts (4), 1/8” x 1-1/2” cotter pins (5) and the hub caps (6). These items are in the hardware package.
Tighten the slotted nuts and make sure the wheels rotate freely.
ITEM NO. PART NO. DESCRIPTION QTY.
1 401102R22 Tank Assembly 1
401102RC22 Tank Assembly (CA) 1
2 400312B0 Wheel Assembly 2
3 O/L 3/4” Light Flatwasher 2
4 17012000 3/4” Slotted Nut 2
5 O/L 1/8” x 1-1/2” Cotter Pin 2
6 40033200 Hub Cap 2
O/L- Obtain locally. Common fasteners available
through hardware and farm stores.
