Page-6

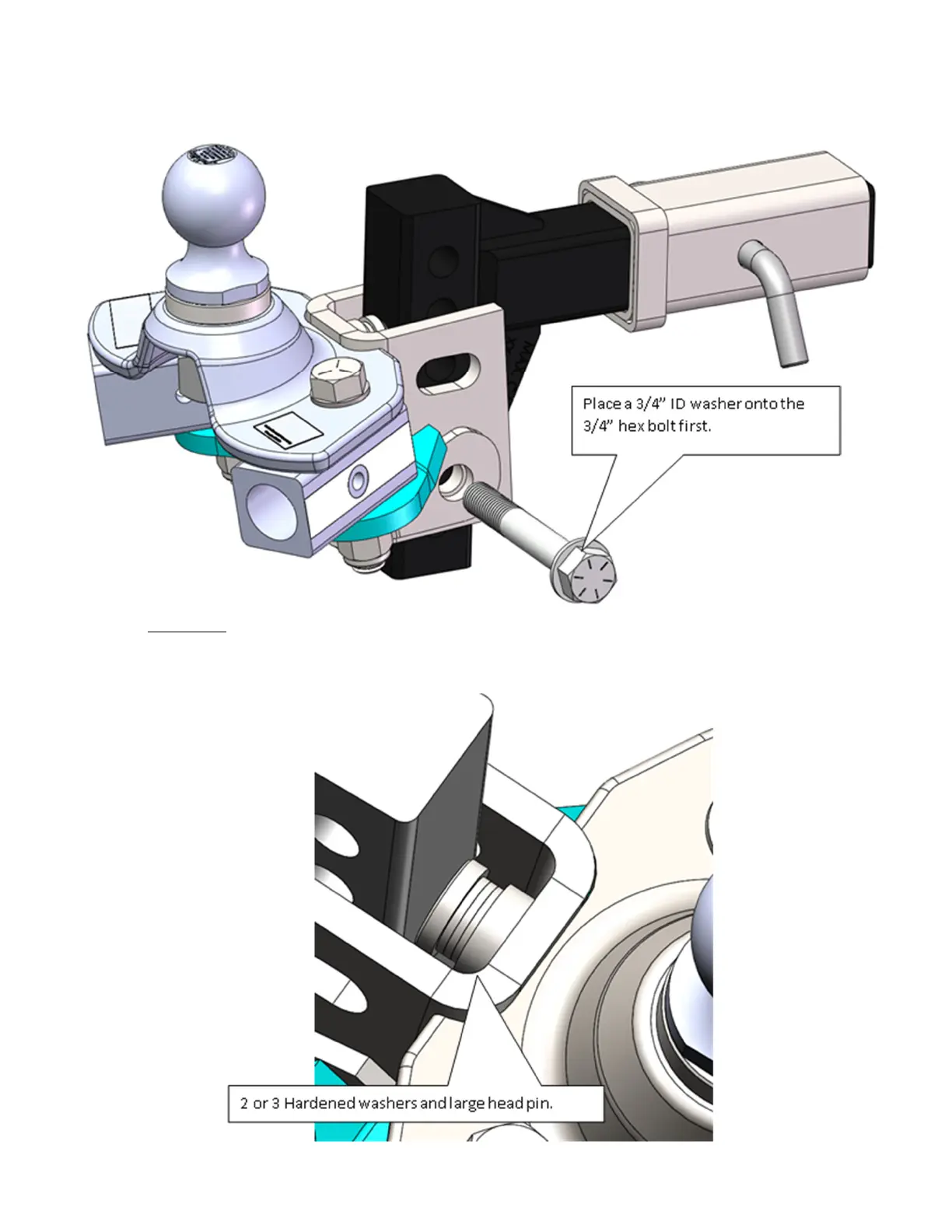

6. Align the bottom hole on the channel to the hole on the shank and insert a 3/4” hex head bolt.
Remember the hole and orientation in these instructions are an example only, yours
may be different.
7. Add hardened washers marked with “F436” on to the large head pin, and then insert into the
welded bushing on the inside top of the channel. Start with 2 hardened washers if trailer frame
is 4” or 5”. Use 3 hardened washers if the trailer frame is 6”, 7” or 8”
