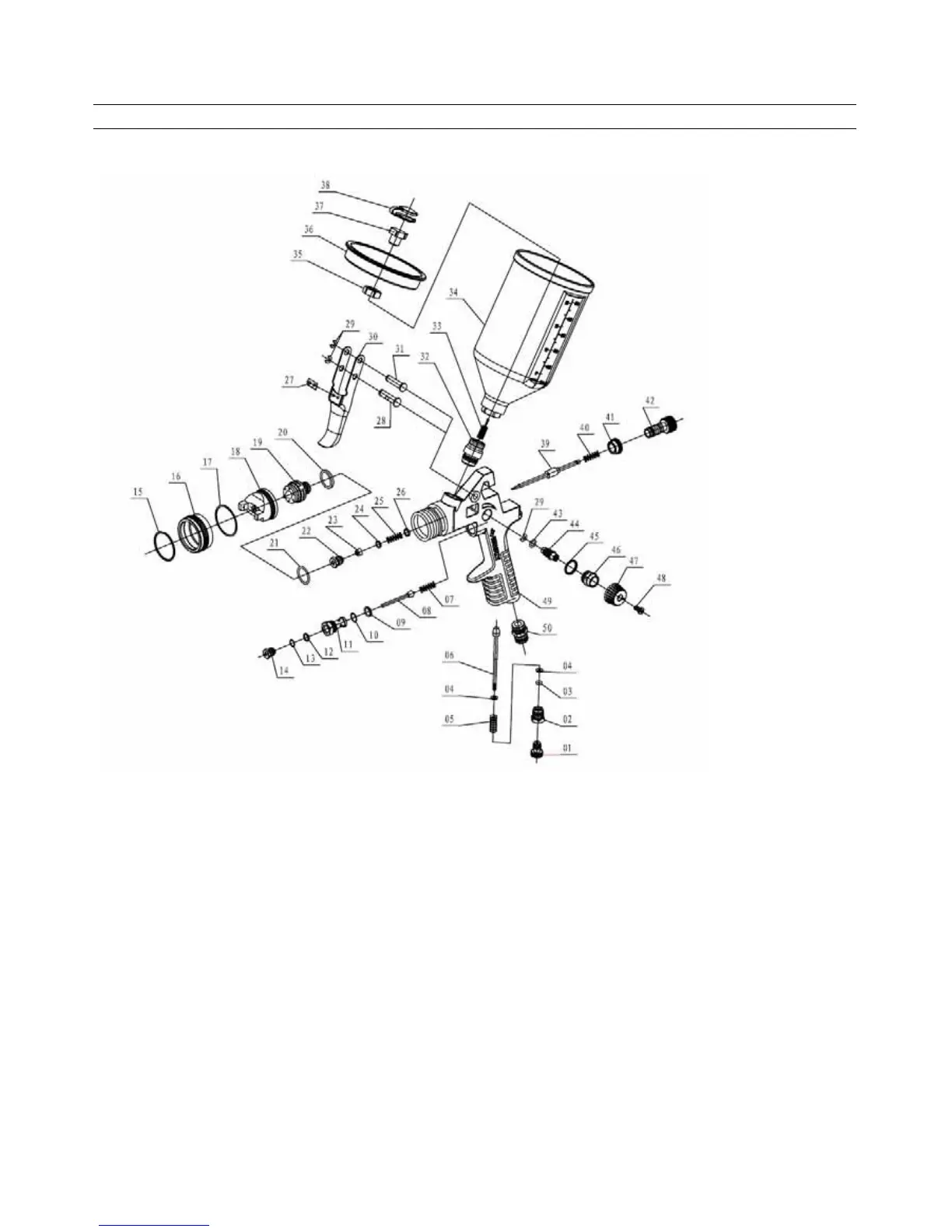

Exploded View and Parts List
HVLP Gravity Feed Spray Gun
Part No. QSG001
For replacement parts or the nearest service center, call toll free 1-877-782-8290
Ref.# Part No. Description Qty Ref.# Part No. Description Qty
1 QSG001-01 Air Control Knob 1 26 QSG001-26 Big Gasket 1
2 QSG001-02 Air Adjustment Seat 1 27 QSG001-27 Trigger Washer 1
3 QSG001-03 O-ring 2.5x2.1 2 28 QSG001-28 Trigger Pin I 1
4 QSG001-04 Gasket 1 29 QSG001-29 Snap Retainer 3
5 QSG001-05 Air Inlet Spring 1 30 QSG001-30 Trigger 1
6 QSG001-06 Air Valve Stem 1 31 QSG001-31 Trigger Pin II 1
7 QSG001-07 Trigger Spring 1 32 QSG001-32 Paint Inlet Plug 1
8 QSG001-08 Trigger Stem 1 33 QSG001-33 Filter 1
9 QSG001-09 Trigger Gasket 1 34 QSG001-34 Paint Cup 1
10 QSG001-10 O-ring 8.5x1.2 1 35 QSG001-35 Nut 1
11 QSG001-11 Trigger Seat 1 36 QSG001-36 Cup Lid 1
12 QSG001-12 Needle Foam Gasket 1 37 QSG001-37 Air Release Screw 1
13 QSG001-13 Ox hide Washer 1 38 QSG001-38 Air Release Plug 1
14 QSG001-14 Guide Bolt 1 39 QSG001-39 Needle 1
15 QSG001-15 Locking Spring 1 40 QSG001-40 Needle Spring 1
16 QSG001-16 Air Cap Nut 1 41 QSG001-41 Fluid Control Nut 1
17 QSG001-17 Air Cap Gasket 1 42 QSG001-42 Fluid Control Seat 1
18 QSG001-18 Air Cap 1 43 QSG001-43 O-ring 6x2 1
19 QSG001-19 Nozzle 1 44 QSG001-44 Paint Adjustment Plug 1
20 QSG001-20 Joint Gasket 1 45 QSG001-45 Copper Gasket 1
21 QSG001-21 O-ring (11.2x1.6) 1 46 QSG001-46 Pattern Control Seat 1
22 QSG001-22 Guide Bolt 1 47 QSG001-47 Pattern Control Knob 1
23 QSG001-23 Needle Sealing Ring 1 48 QSG001-48 Screw 1
24 QSG001-24 Little Gasket 1 49 QSG001-49 Gun body 1
25 QSG001-25 Depress Spring 1 50 QSG001-49 Air Inlet Plug 1
